Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

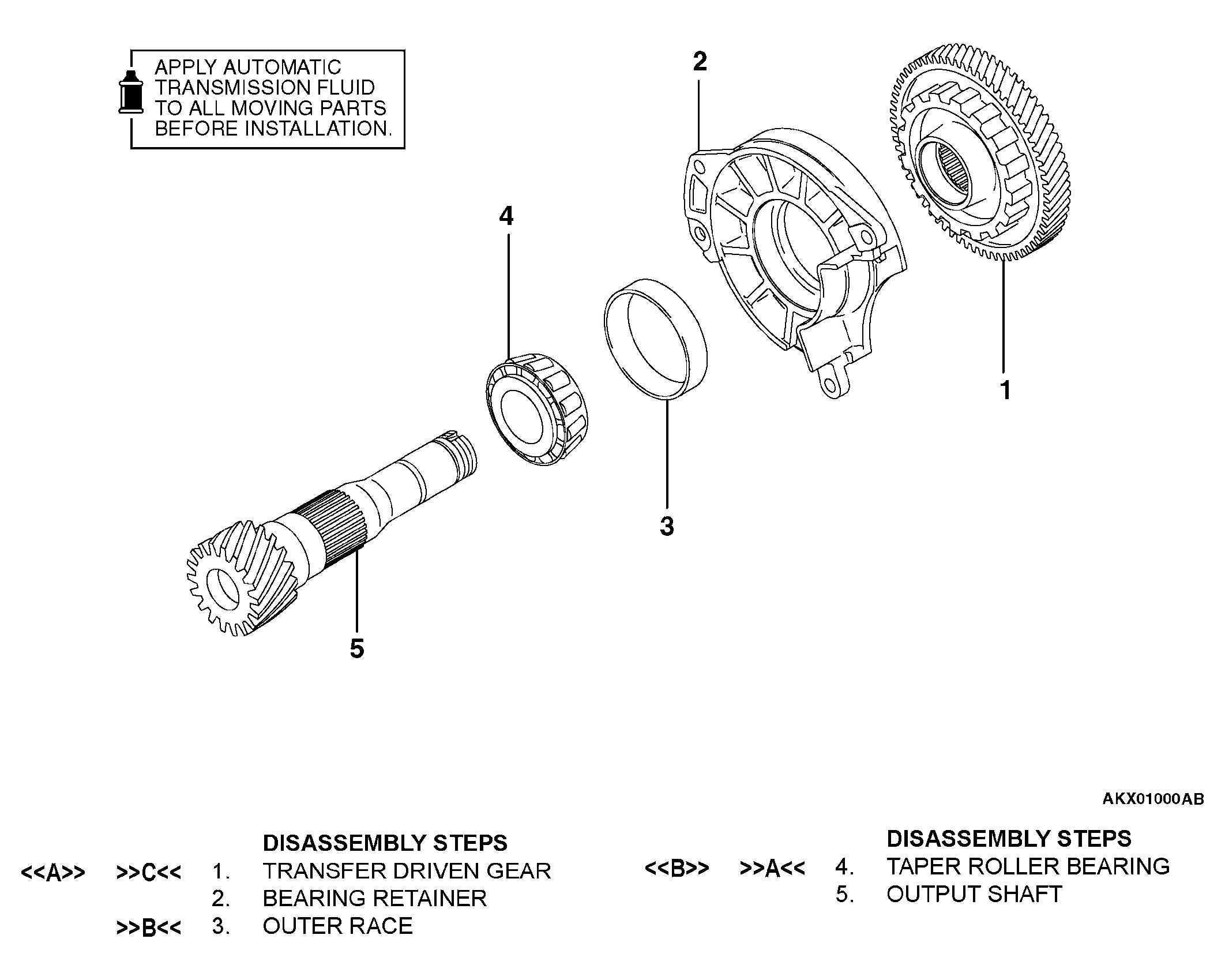

Fig 1: Exploded View Of Output Shaft

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990936: Installer Adapter < F4A42 >
MB990937: Installer Adapter < F4A51 >
MB990938: Handle
MD998801: Bearing Remover
MD998812: Installer Cap
MD998813: Installer-100
MD998814: Installer-200
MD998823: Installer Adapter (48) < F4A42 >
MD998824: Installer Adapter (50) < F4A51 >
MD998827: Installer Adapter (56) < F4A51 >
MD998917: Bearing Remover < F4A42 >
