Sectional View < F4A51 >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

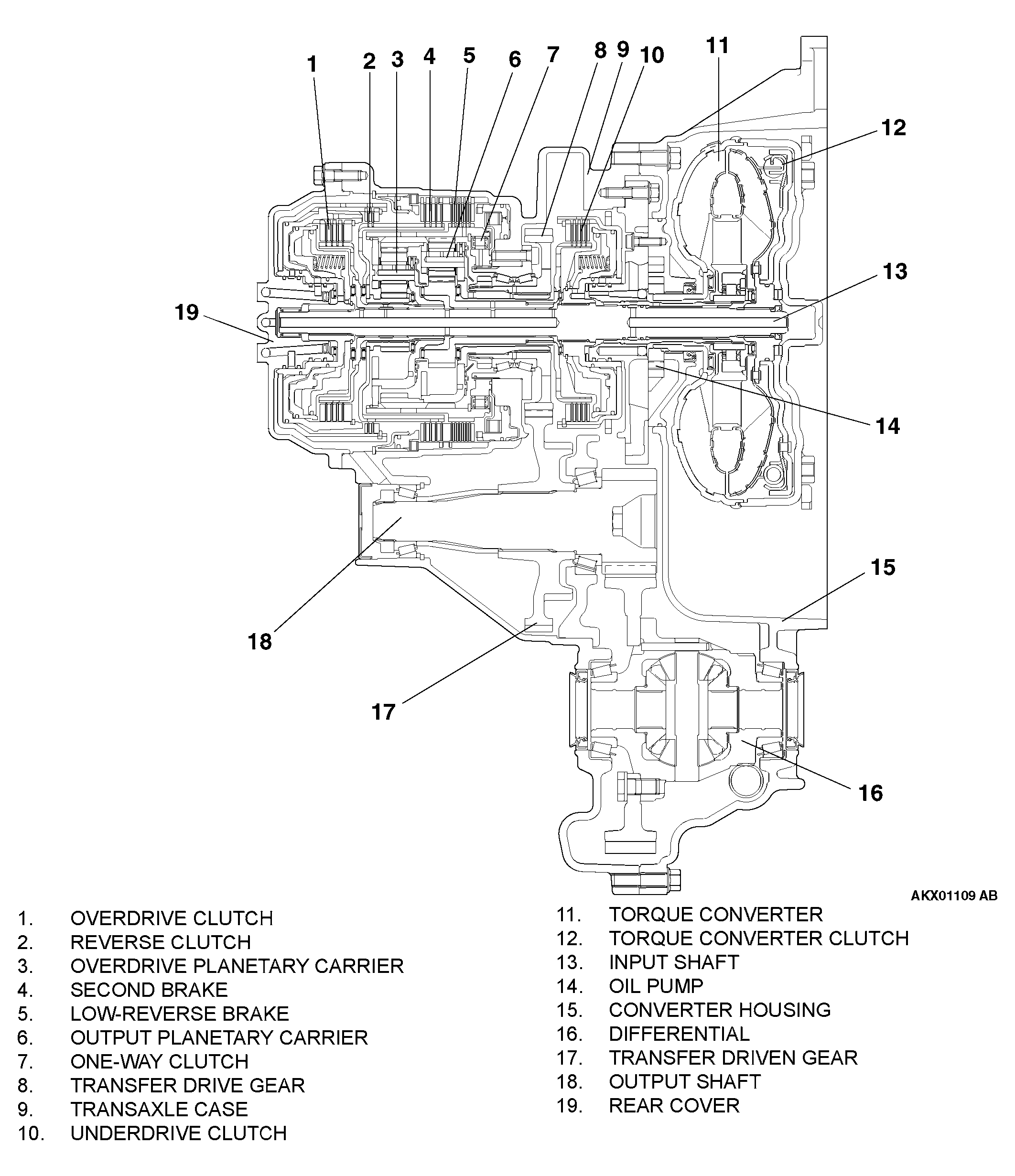

Fig 1: Sectional View Automatic Transaxle Overhaul (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
