>> B << Oil Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Use special tool MD998800 to tap the oil seal in the transaxle case.

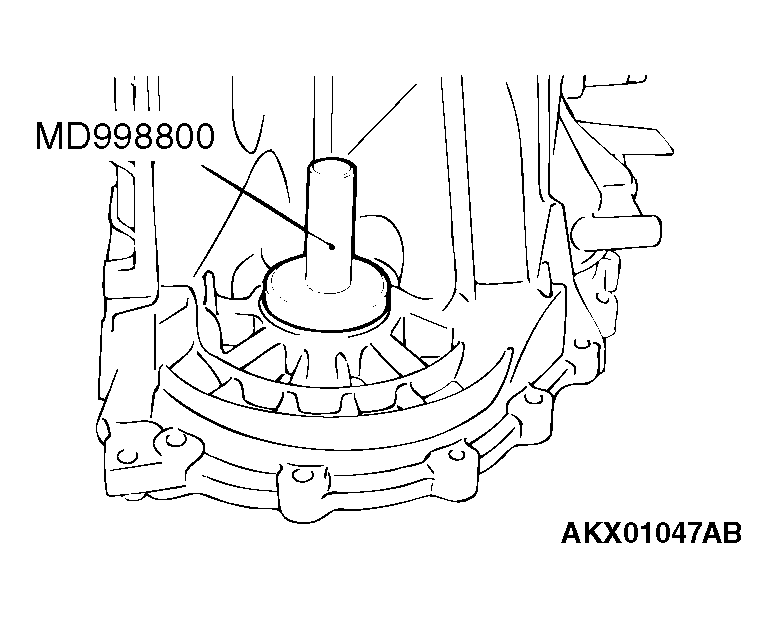

Fig 1: Taping Oil Seal In Transaxle Case
G04539157Courtesy of DAIMLERCHRYSLER CORPORATION
