>> D << Differential Drive Gear Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to the bolt, and then tighten the bolts to the specified torque in the sequence shown.

Tightening torque: 135 +/- 5 N.m (100 +/- 3 ft-lb)

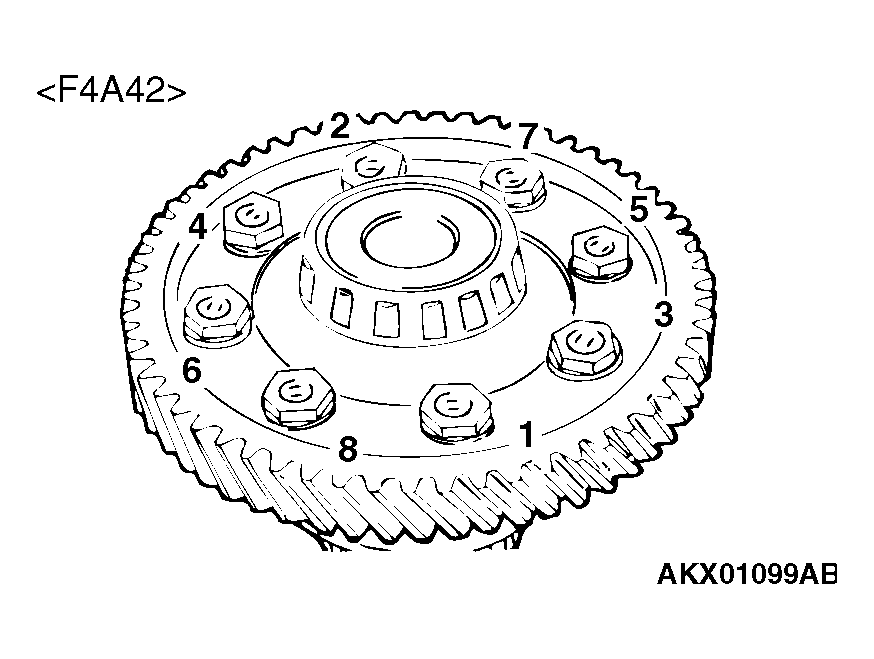

Fig 1: Tightening Bolts To Specified Torque In Sequence
G04539146Courtesy of DAIMLERCHRYSLER CORPORATION

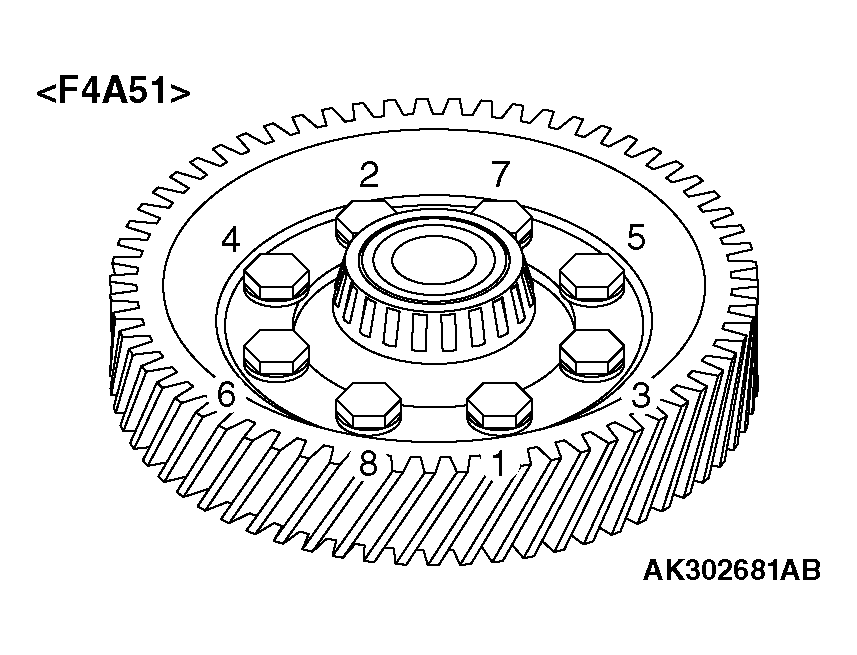

Fig 2: Tightening Bolts To Specified Torque In Sequence
G04539147Courtesy of DAIMLERCHRYSLER CORPORATION
