INSPECTION PROCEDURE 1: Communication with Scan Tool MB991502 is not Possible (Communication with the Auto-cruise Control-ECU Only is not Possible).: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

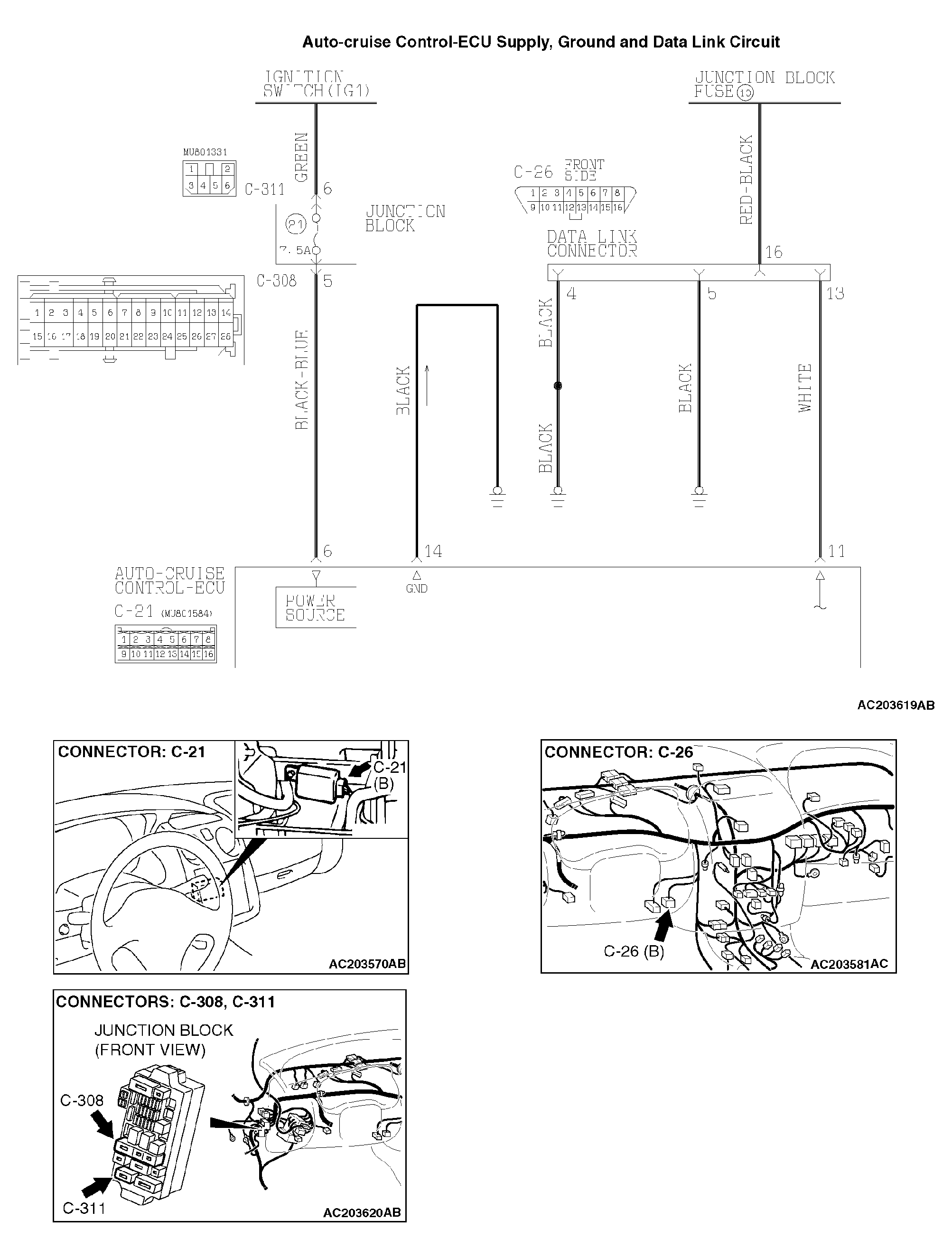

Fig 1: Auto-Cruise Control-ECU Supply, Ground And Data Link Circuit Diagram
G04539383Courtesy of DAIMLERCHRYSLER CORPORATION
