DTC 17: Throttle Position Sensor and Idle position signal System: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

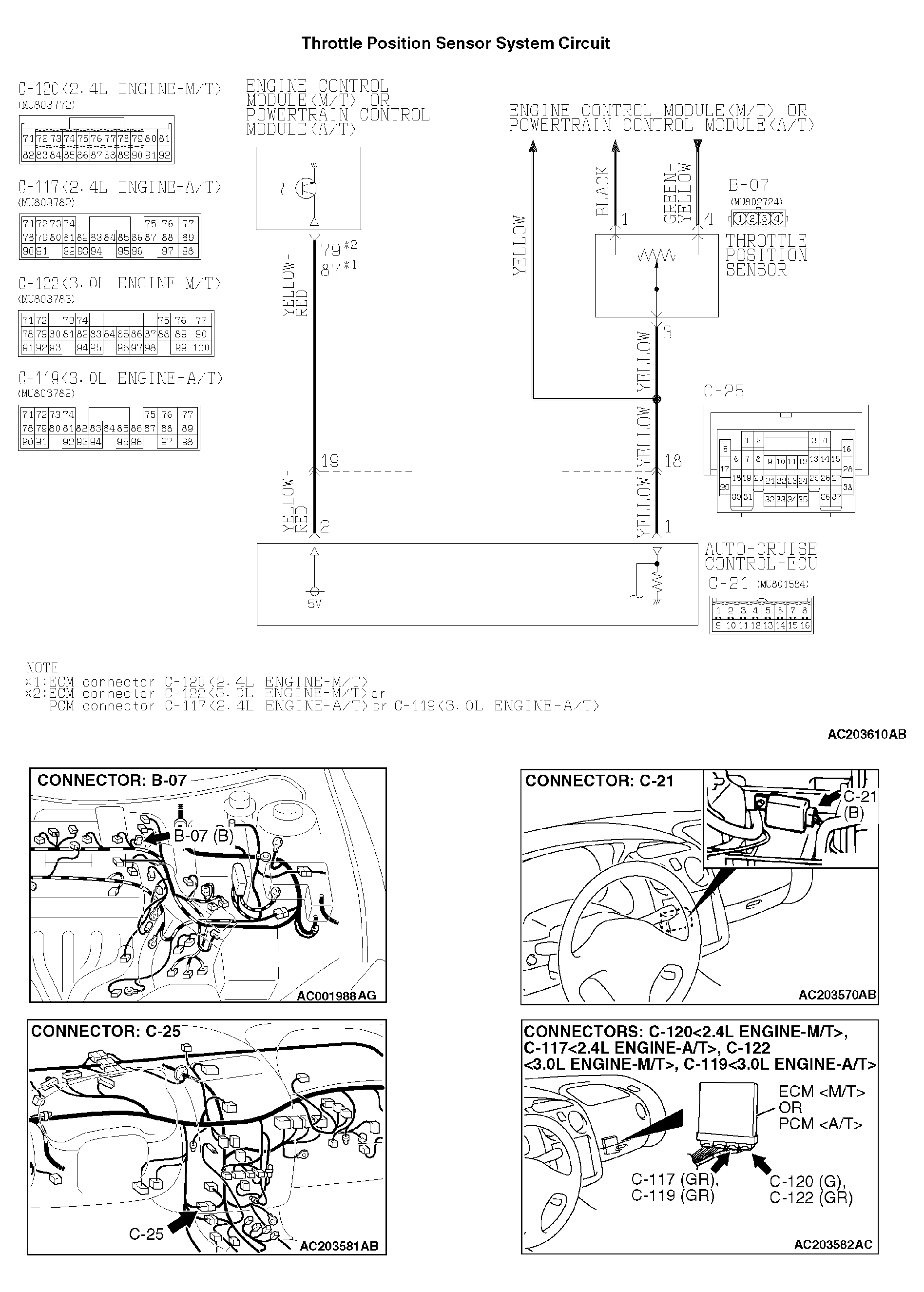

Fig 1: Throttle Position Sensor And Idle Position Signal System Circuit Diagram
G04539366Courtesy of DAIMLERCHRYSLER CORPORATION
