DTC 17: Throttle Position Sensor and Idle position signal System: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the throttle position sensor.
    CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
    1. Using scan tool MB991502.
    2. Connect scan tool MB991502 to the data link connector.
    3. Turn the ignition switch to the "ON" position.
    4. Read the MFI-DTC.
    5. Turn the ignition switch to the "LOCK" (OFF) position.

    Q: Is the MFI-DTC P0120 is set?

    YES  : For 2.4L engine, refer to Diagnosis - DIAGNOSTIC TROUBLE CODE CHART . For 3.0L engine, refer to DIAGNOSIS - DIAGNOSTIC TROUBLE CODE CHART .

    NO:  Go to Step 2.

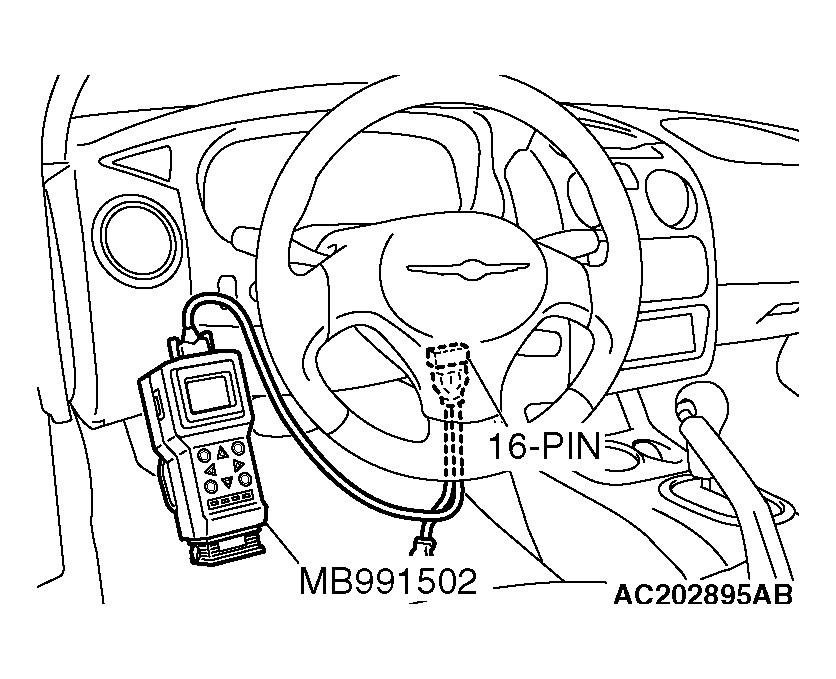

    Fig 1: Connecting Scan Tool To Data Link Connector
    G04539367Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Measure the signal voltage at auto-cruise control-ECU connector C-52 by backprobing.
    1. Do not disconnect auto-cruise control-ECU connector C-21.
    2. Turn the ignition switch to the "ON" position and the auto-cruise control MAIN switch to the "ON" position.
      Fig 2: Disconnecting Auto-Cruise Control-ECU Connector C-21
      G04539368Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between auto-cruise control-ECU connector C-21 terminal 1 and ground by backprobing.
      • The voltage should measure between 4.0 and 5.5 volts. (When accelerator pedal is fully depressed.)
      • The voltage should measure between 0.4 and 1.0 volts. (When accelerator pedal is released.)
    4. Turn the auto-cruise control MAIN switch to the "OFF" position and the ignition switch to the "LOCK" (OFF) position.

    Q: Are all of the measured voltages satisfied?

    YES  : Go to  Step 5.

    NO:  Go to Step 3.

    Fig 3: Measuring Voltage Between Auto-Cruise Control-ECU Connector C-21 Terminal 1 And Ground
    G04539369Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check auto-cruise control-ECU connector C-21 and intermediate connector C-25 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    YES  : Go to Step 4.

    NO:  Repair or replace the faulty connector. (Refer to , HARNESS CONNECTOR INSPECTION ). Go to  Step 9.

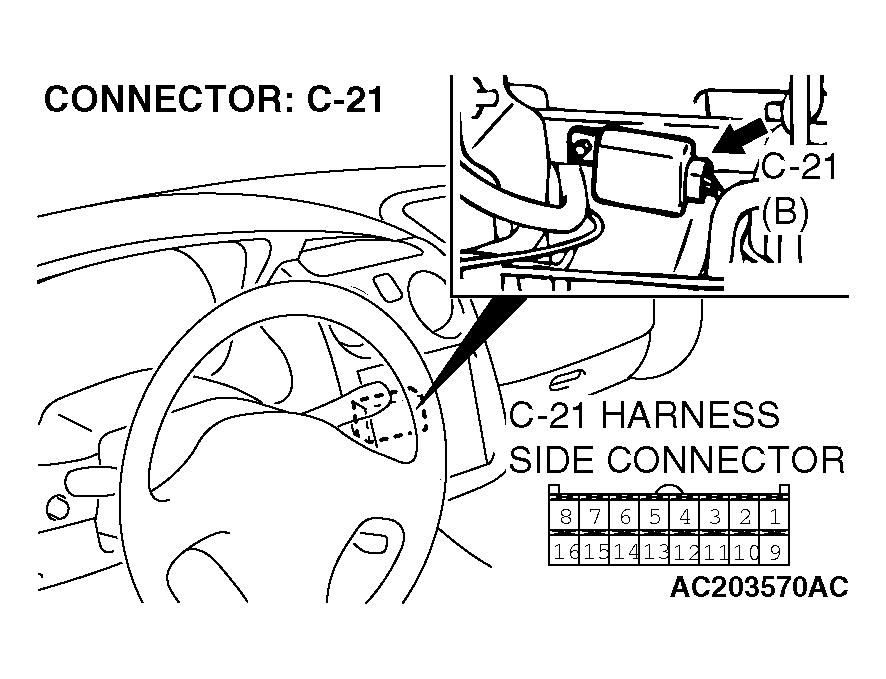

    Fig 4: Checking Auto-Cruise Control-ECU Connector C-21
    G04539370Courtesy of DAIMLERCHRYSLER CORPORATION

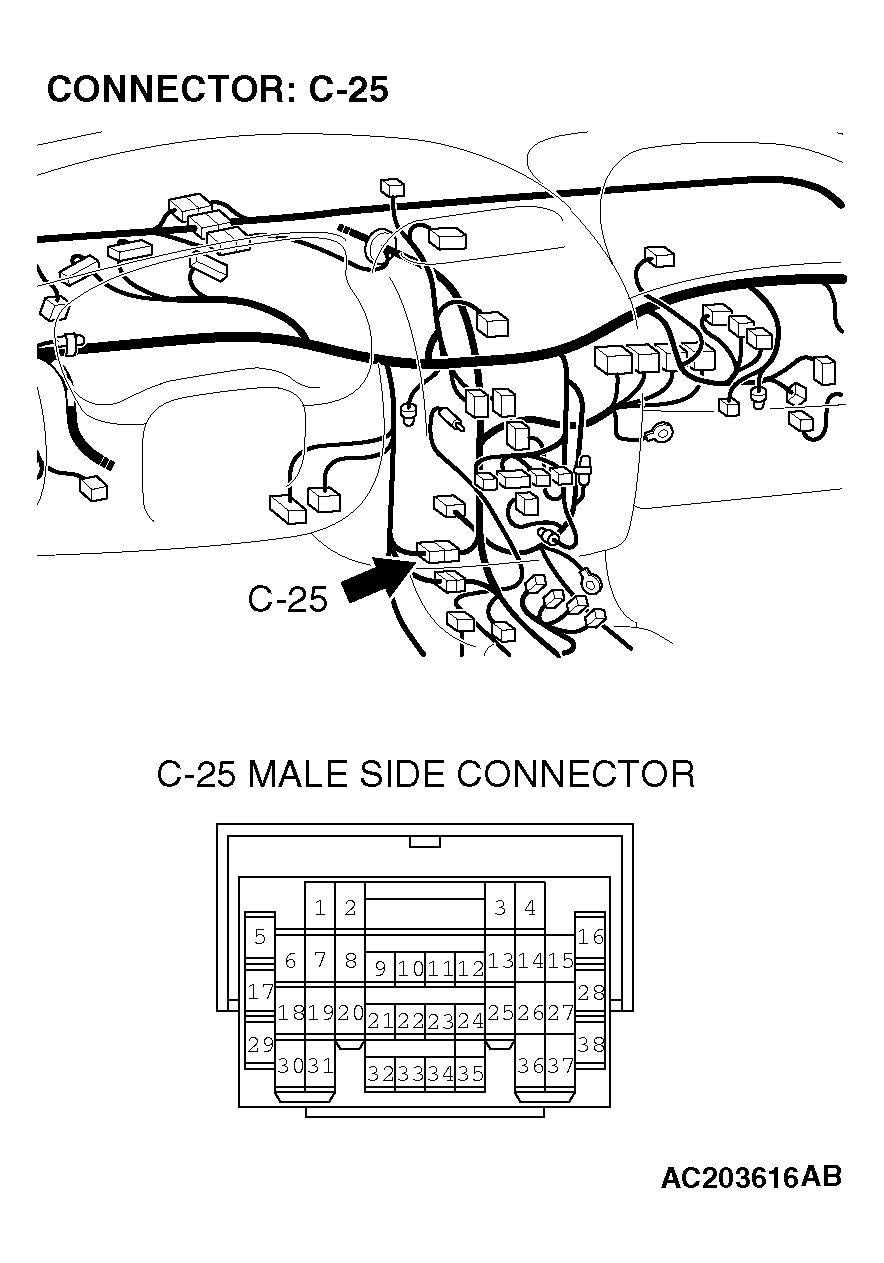

    Fig 5: Checking Intermediate Connector C-25
    G04539371Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the harness wire between throttle position sensor connector B-07 terminal 3 and auto-cruise control-ECU connector C-21 terminal 1 for damage.

    Q: Is the harness wire in good condition?

    YES  : It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ). Go to  Step 9.

    NO:  Repair the damaged harness wire. Go to  Step 9.

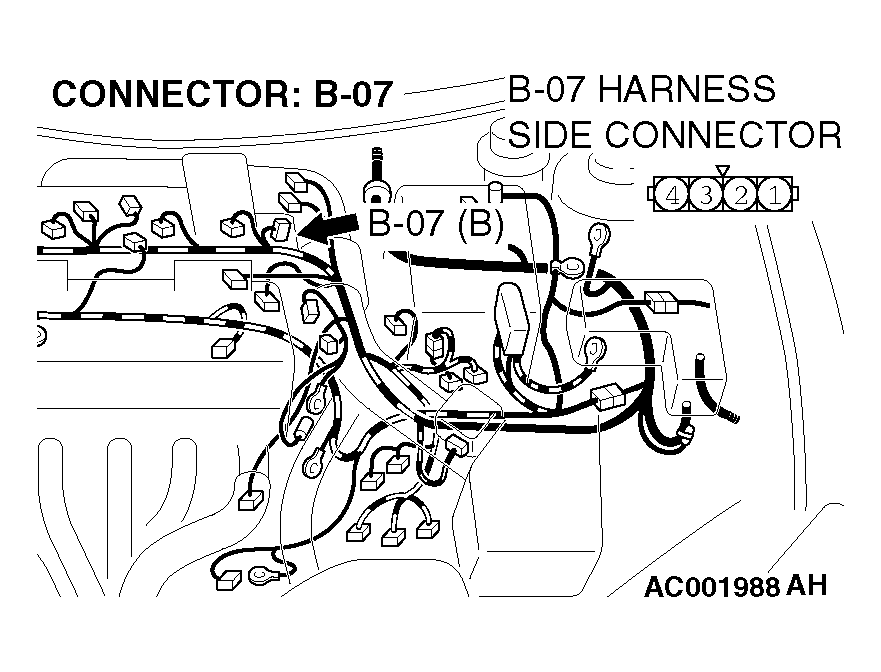

    Fig 6: Checking Harness Wire Between Throttle Position Sensor Connector B-07
    G04539372Courtesy of DAIMLERCHRYSLER CORPORATION

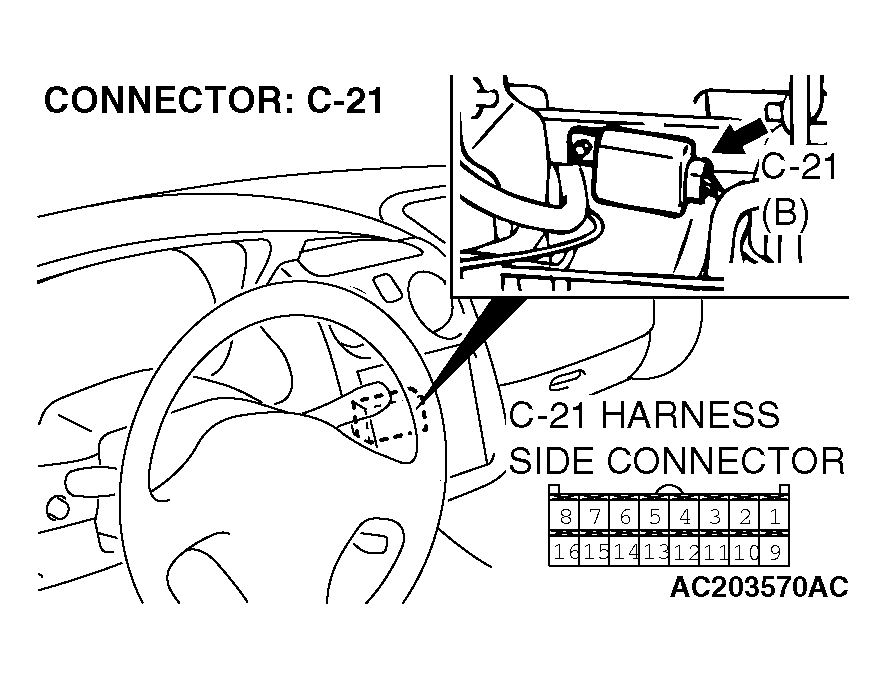

    Fig 7: Checking Auto-Cruise Control-ECU Connector C-21
    G04539373Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Measure the signal voltage at ECM connector C-120 < 2.4L engine-M/T > or C-122 < 3.0L engine-M/T >, or PCM connector C-117 < 2.4L engine-A/T > or C-119 < 3.0L engine-A/T >.
    1. Disconnect ECM connector C-120 < 2.4L engine-M/T > or C-122 < 3.0L engine-M/T >, or PCM connector C-117 < 2.4L engine-A/T > or C-119 < 3.0L engine-A/T >.
    2. Turn the ignition switch to the "ON" position and the auto-cruise control MAIN switch to the "ON" position.
      Fig 8: Disconnecting ECM Connector C-120
      G04539374Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between ECM connector C-120 terminal 87 < 2.4L engine-M/T > or C-122 terminal 79 < 3.0L engine-M/T >, or PCM connector C-117 terminal 79 < 2.4L engine-A/T > or C-119 terminal 79 < 3.0L engine-A/T > and ground.
      • The voltage should measure between 4.0 and 5.5 volts.
    4. Turn the auto-cruise control MAIN switch to the "OFF" position and the ignition switch to the "LOCK" (OFF) position.

    Q: Is the measured voltage between 4.0 and 5.5 volts?

    YES  : Check that DTC 17 is not set. If DTC 17 is not set, It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ). If DTC 17 is set, replace the ECM < M/T > or PCM < A/T >, and then Go to  Step 9.

    NO:  Go to Step 6.

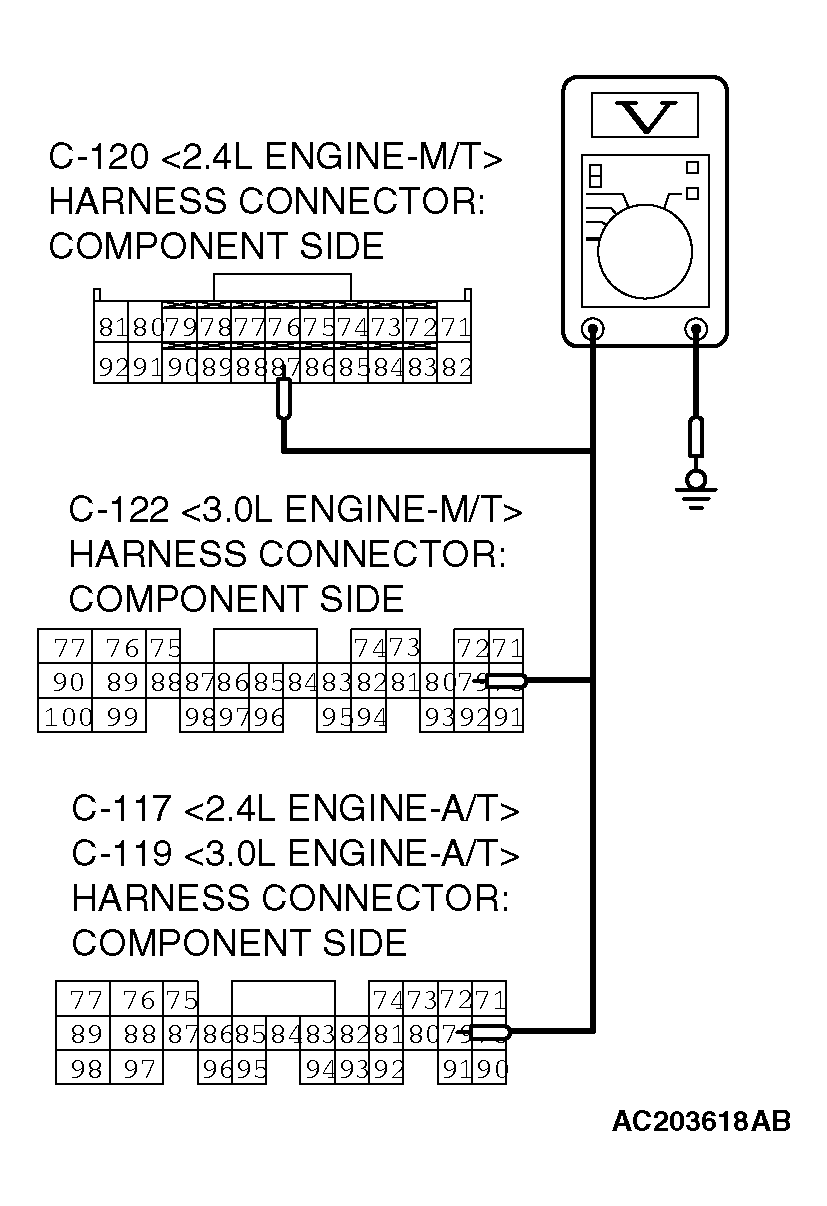

    Fig 9: Measuring Voltage Between ECM Connector C-120
    G04539375Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check auto-cruise control-ECU connector C-21, intermediate connector C-25 and ECM connector C-120 < 2.4L engine-M/T > or C-122 < 3.0L engine-M/T >, or PCM connector C-117 < 2.4L engine-A/T > or C-119 < 3.0L engine-A/T > for loose, corroded or damaged terminals, or terminals pushed back in the connector.
    Fig 10: Checking Auto-Cruise Control-ECU Connector C-21s
    G04539376Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 11: Checking Intermediate Connector C-25
    G04539377Courtesy of DAIMLERCHRYSLER CORPORATION

    Q: Are the connectors and terminals in good condition?

    YES  : Go to Step 7.

    NO:  Repair or replace the faulty connector. (Refer to , HARNESS CONNECTOR INSPECTION ). Go to  Step 9.

    Fig 12: Checking ECM Connector C-120
    G04539378Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the harness wire between auto-cruise control-ECU connector C-21 terminal 2 and ECM connector C-120 terminal 87 < 2.4L engine-M/T > or C-122 terminal 79 < 3.0L engine-M/T >, or PCM connector C-117 terminal 79 < 2.4L engine-A/T > or C-119 terminal 79 < 3.0L engine-A/T > for damage.

    Q: Is the harness wire in good condition?

    YES  : Go to Step 8.

    NO:  Repair the damaged harness wire. Go to  Step 9.

    Fig 13: Checking Harness Wire Between Auto-Cruise Control-ECU Connector C-21
    G04539379Courtesy of DAIMLERCHRYSLER CORPORATION

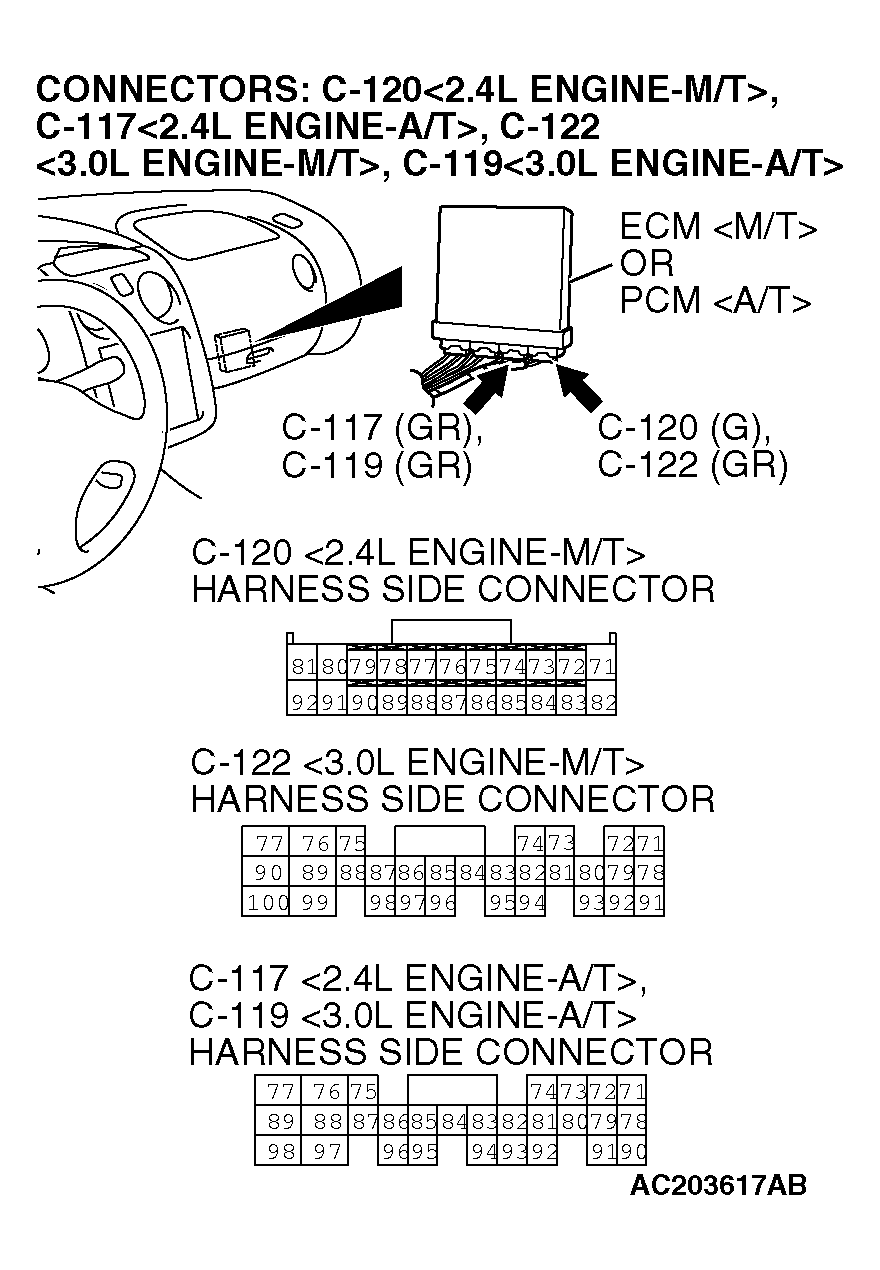

    Fig 14: Checking ECM Connector C-120
    G04539380Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Measure the signal voltage at auto-cruise control-ECU connector C-21 by backprobing.
    1. Do not disconnect auto-cruise control-ECU connector C-21.
    2. Turn the ignition switch to the "ON" position and the auto-cruise control MAIN switch to the "ON" position.

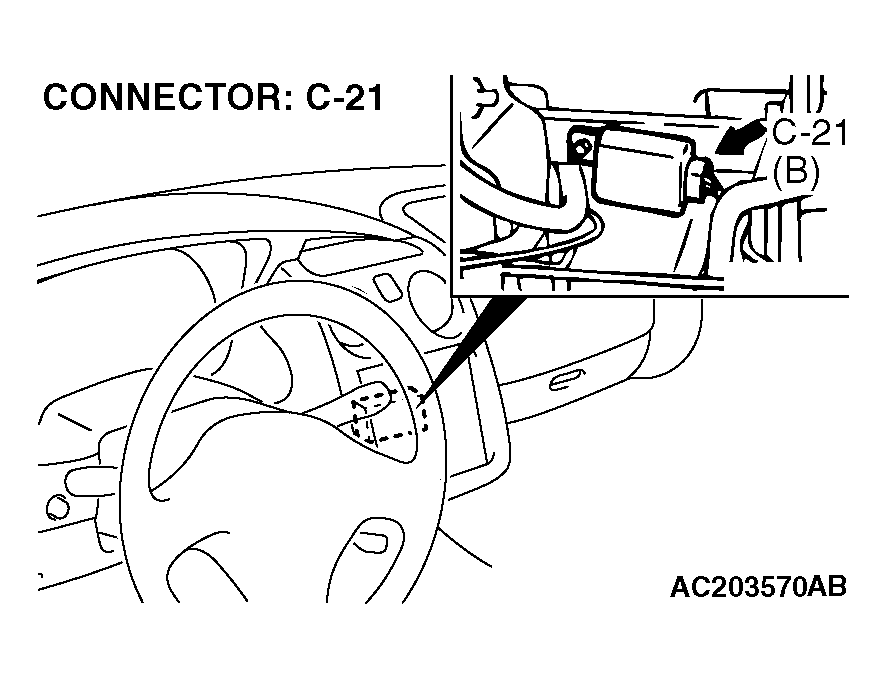

      Fig 15: Disconnecting Auto-Cruise Control-ECU Connector C-21
      G04539381Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between auto-cruise control-ECU connector C-21 terminal 2 and ground by backprobing.
      • The voltage should measure between 4.0 and 5.5 volts. (When accelerator pedal is depressed.)
      • The voltage should measure between 2.5 volts or less. (When accelerator pedal is released.)
    4. Turn the auto-cruise control MAIN switch to the "OFF" position and the ignition switch to the "LOCK" (OFF) position.

    Q: Are all of the measured voltages satisfied?

    YES  : Check that DTC 17 is not set. If DTC 17 is not set, It can be assumed that this malfunction is intermittent. (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ). If DTC 17 is set, replace the auto-cruise control-ECU (Refer to AUTO-CRUISE CONTROL  ), and then go to Step 9.

    NO:  Replace the auto-cruise control-ECU AUTO-CRUISE CONTROL  . Go to Step 9.

    Fig 16: Measuring Voltage Between Auto-Cruise Control-ECU Connector C-21 Terminal 2 And Ground
    G04539382Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Check the diagnostic trouble codes.

    Q: Is DTC 17 set?

    YES  : Go to  Step 1.

    NO:  This procedure is complete.
