DTC 11: Auto-cruise Vacuum Pump Drive System: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

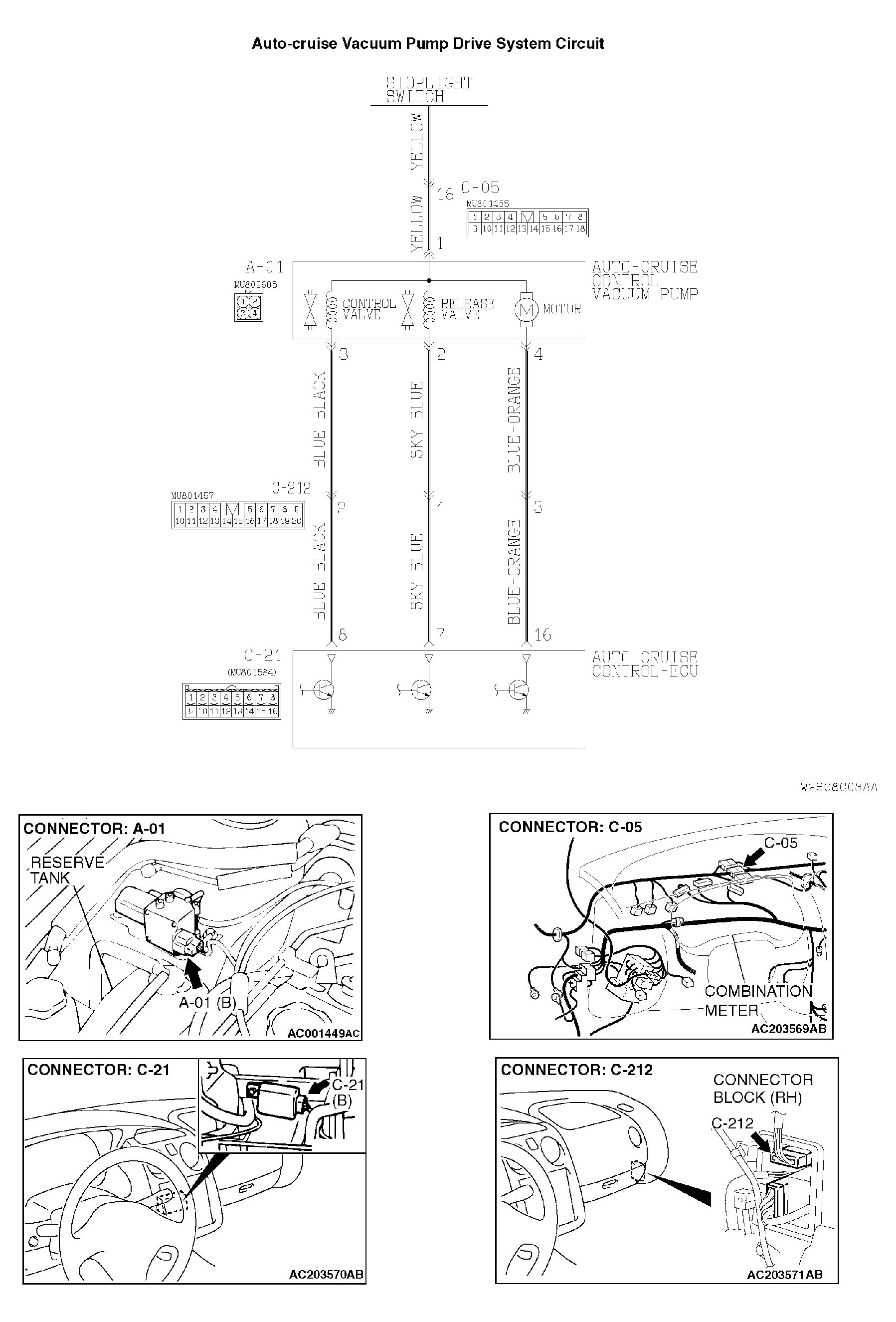

Fig 1: Auto-Cruise Vacuum Pump Drive System Circuit Diagram
G04539302Courtesy of DAIMLERCHRYSLER CORPORATION
