Using scan tool MB991502

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

MB991502: Scan Tool (MUT-II)
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

Connect scan tool MB991502 to the data link connector.
Turn the ignition switch to the "ON" position.
Use scan tool MB991502 to check for auto-cruise control system diagnostic trouble codes.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991502.

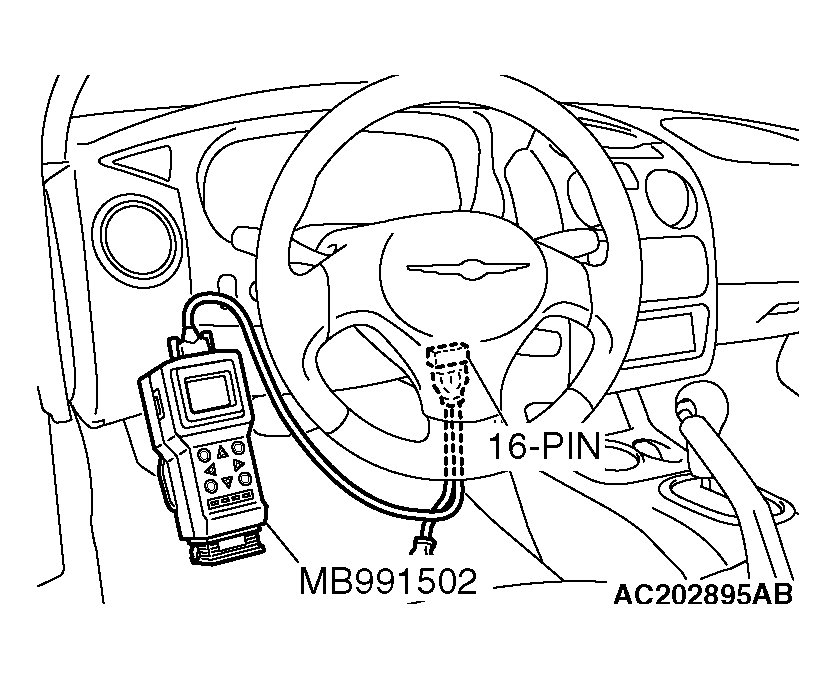

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
