Diagnostic Result Display Method When Using The Auto-Cruise Control Indicator Light: Notes
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
BLINKING PATTERN

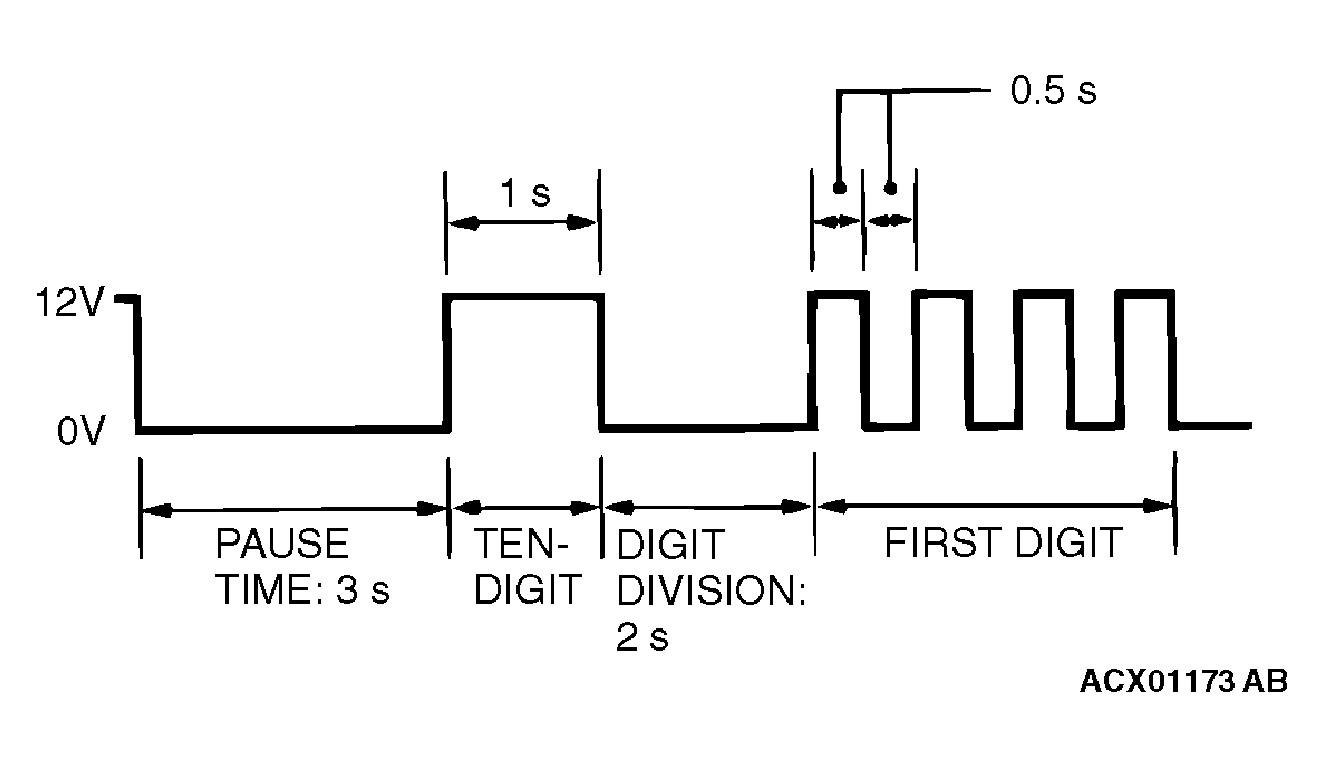

| WHEN THE DIAGNOSTIC TROUBLE CODE NO.14 IS OUTPUT |
WHEN NO DIAGNOSTIC TROUBLE CODE IS OUTPUT |
 Courtesy of DAIMLERCHRYSLER CORPORATION
|
 Courtesy of DAIMLERCHRYSLER CORPORATION
|
NOTE:
Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
