INSPECTION PROCEDURE P-1: Check the circuit (power supply line) from the battery to the ETACS-ECU.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB991223: Test Harness Set
MB991502: Scan Tool (MUT-II)
MB991529: Diagnostic Trouble Code Check Harness

STEP 1. Check the battery power supply circuit to the ETACS-ECU. Test at ETACS-ECU connector C-319.
1. Disconnect the ETACS-ECU connector C-319 and measure the voltage available at the junction block side of the connector.

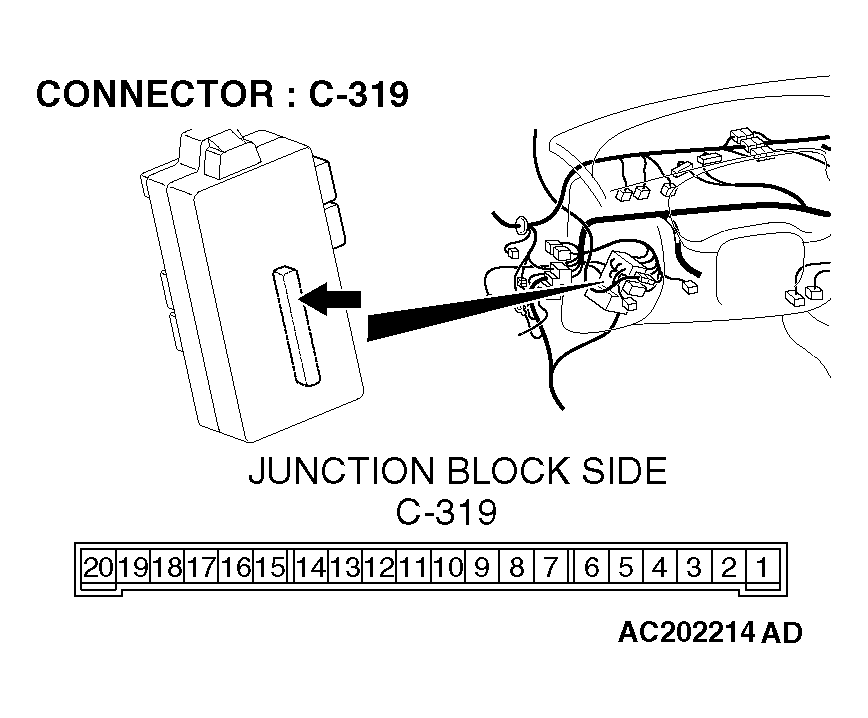

  Fig 1: Identifying Connector C-319 - Junction Block Side
  Courtesy of DAIMLERCHRYSLER CORPORATION
2. Measure the Voltage between terminal 20 and ground.
  - The voltage should equal approximately 12 volts (battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

YES : Replace the ETACS-ECU. The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

NO: Go to Step 2.

Fig 2: Measuring Voltage Between Terminal 20 And Ground
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 2. Check the ETACS-ECU connector C-319 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is ETACS-ECU connector C-319 in good condition?

YES : Go to Step 3.

NO: Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

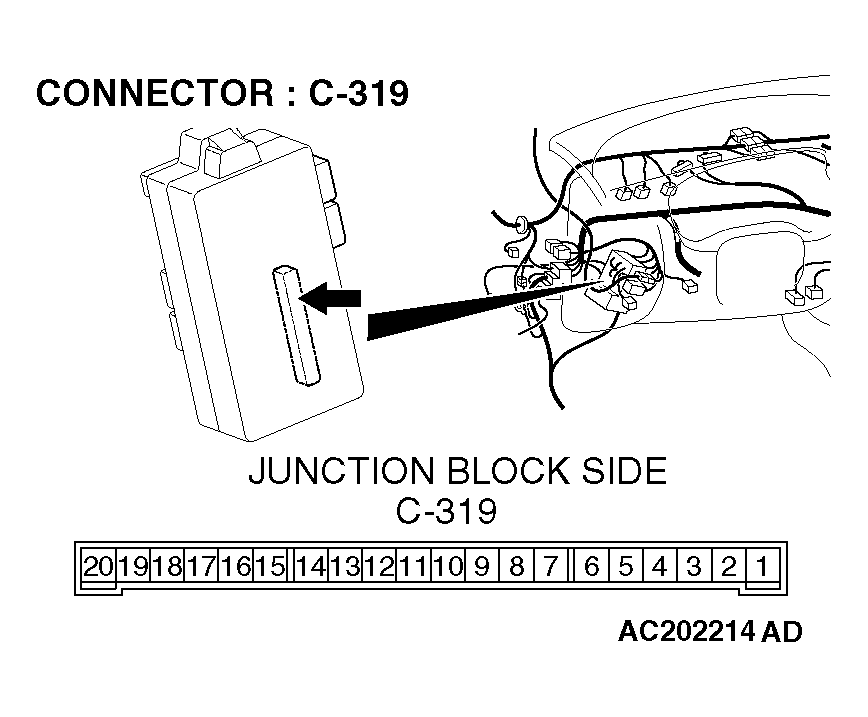

Fig 3: Identifying Connector C-319 - Junction Block Side
Courtesy of DAIMLERCHRYSLER CORPORATION
STEP 3. Check the wiring harness between ETACS-ECU connector C-319 (terminal 20) and battery.

Fig 4: Identifying Connector C-319 - Junction Block Side
Courtesy of DAIMLERCHRYSLER CORPORATION

NOTE: Also check junction block connector C-312, joint connector C-141 and intermediate connector C-209 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-312, joint connector C-141 and intermediate connector C-209 are damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

Q: Are the wiring harness between ETACS-ECU connector C-319 (terminal 20) and battery in good condition?

YES : No action is necessary and testing is complete.

NO: The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

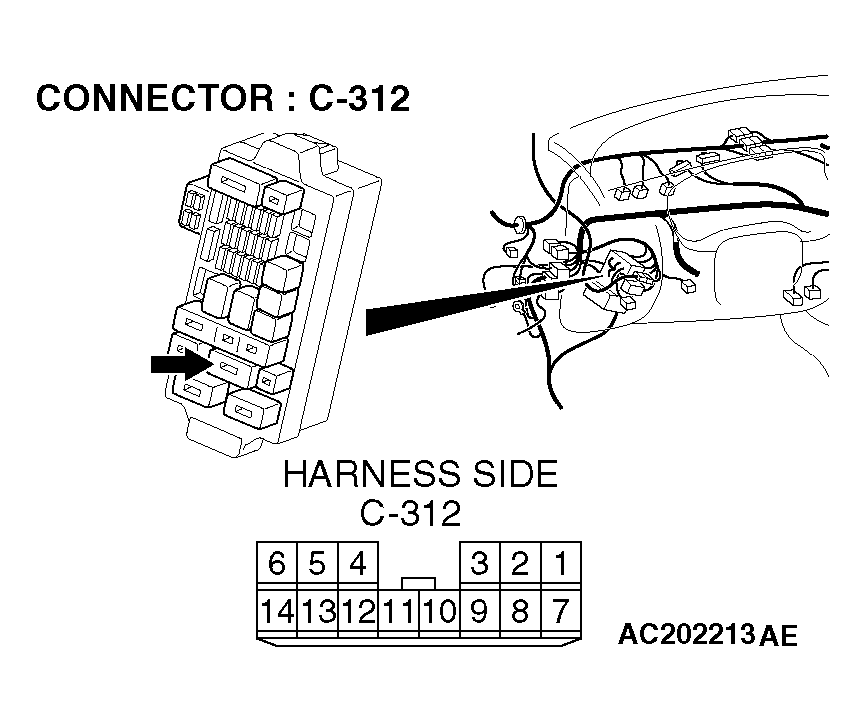

Fig 5: Identifying Connector C-312 - Harness Side
Courtesy of DAIMLERCHRYSLER CORPORATION

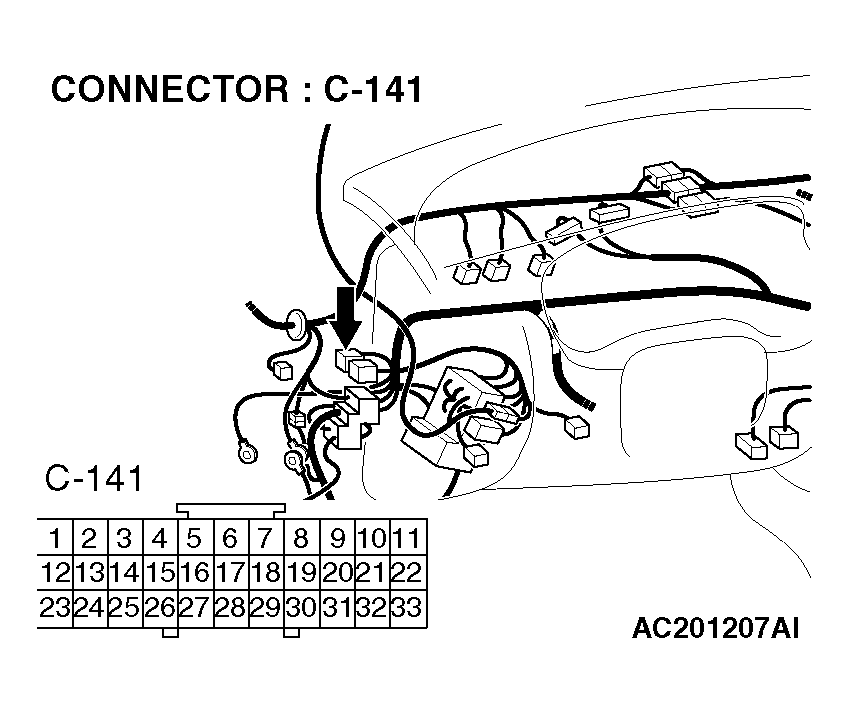

Fig 6: Identifying Connector C-141 - Harness Side
Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Identifying Connector C-209
Courtesy of DAIMLERCHRYSLER CORPORATION
