INSPECTION PROCEDURE O-19: ETACS-ECU does not receive a interior light loaded signal.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

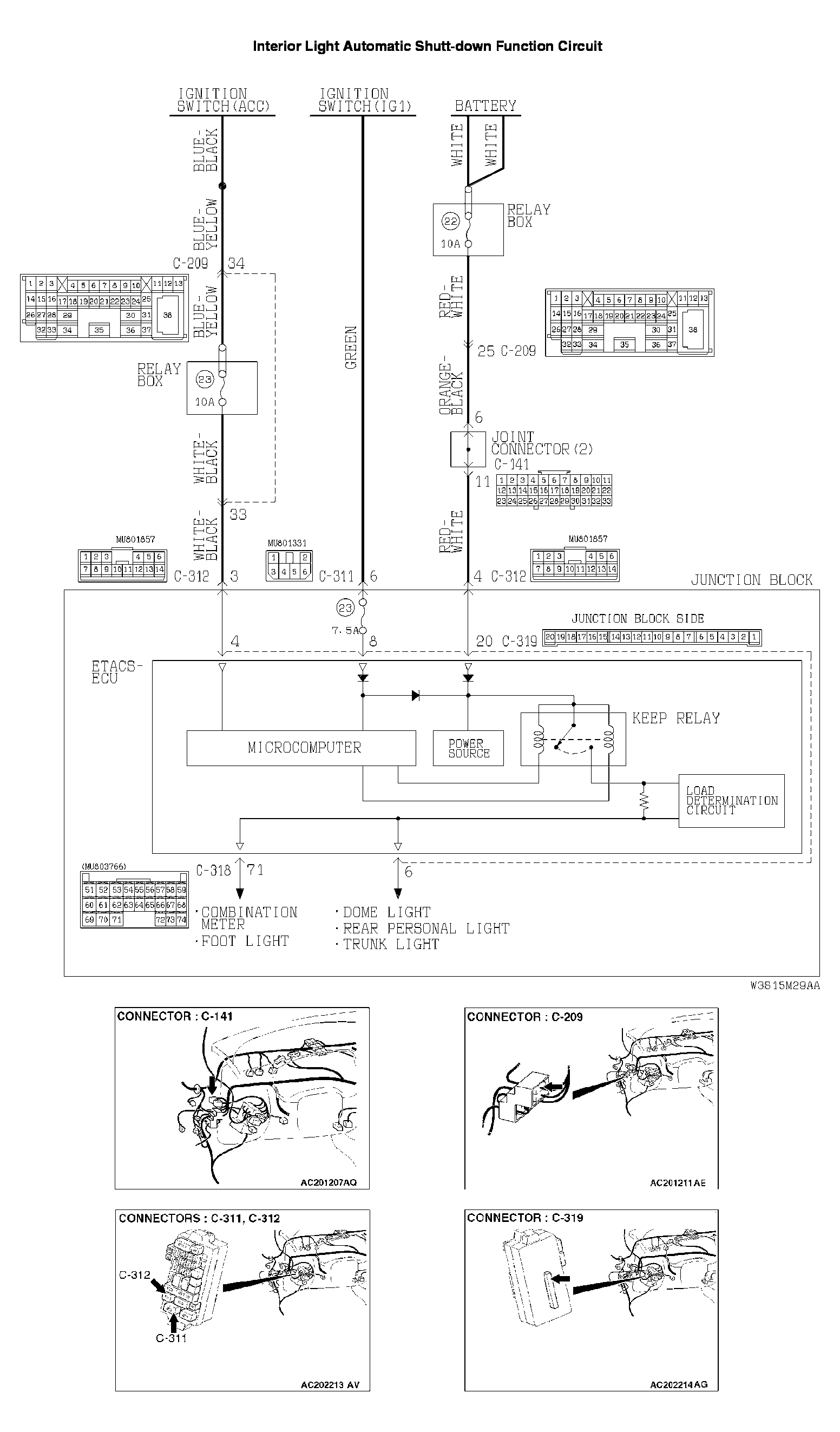

Fig 1: Interior Light Automatic Shut down Function Circuit Diagram

Courtesy of DAIMLERCHRYSLER CORPORATION
