INSPECTION PROCEDURE O-19: ETACS-ECU does not receive a interior light loaded signal.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the battery power supply circuit to the ETACS-ECU. Test at ETACS-ECU connector C-319.
    1. Disconnect ETACS-ECU connector C-319 and measure the voltage available at the junction block side of the connector.

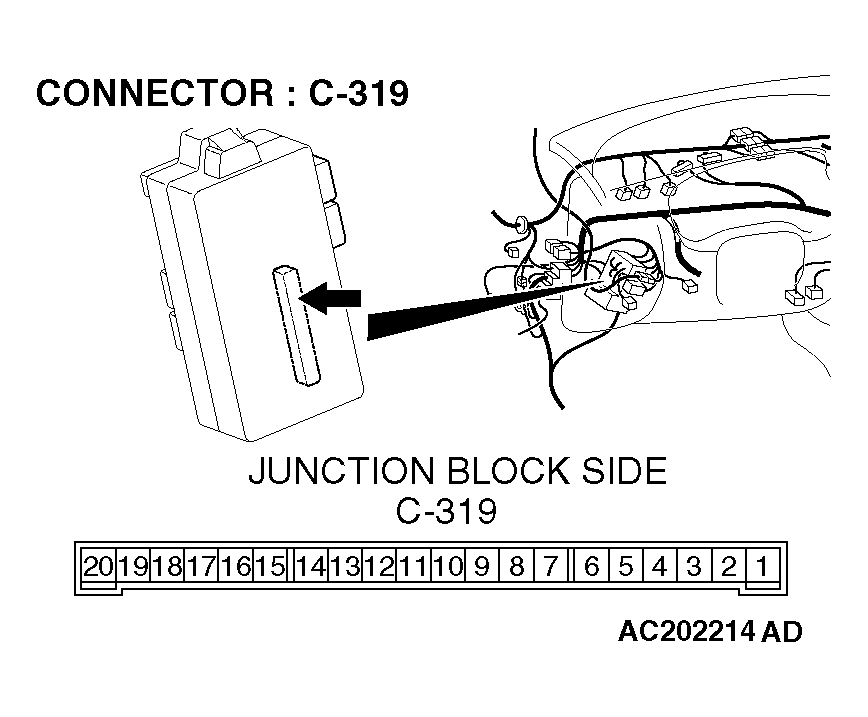

      Fig 1: Identifying Connector C-319 - Junction Block Side
      G04541471Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the voltage between terminal 20 and ground.
      • The voltage should equal approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

    YES  : Go to  Step 4.

    NO:  Go to Step 2.

    Fig 2: Measuring Voltage Between Terminal 20 And Ground
    G04541472Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the ETACS-ECU connector C-319 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is ETACS-ECU connector C-319 in good condition?

    YES  : Go to Step 3.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

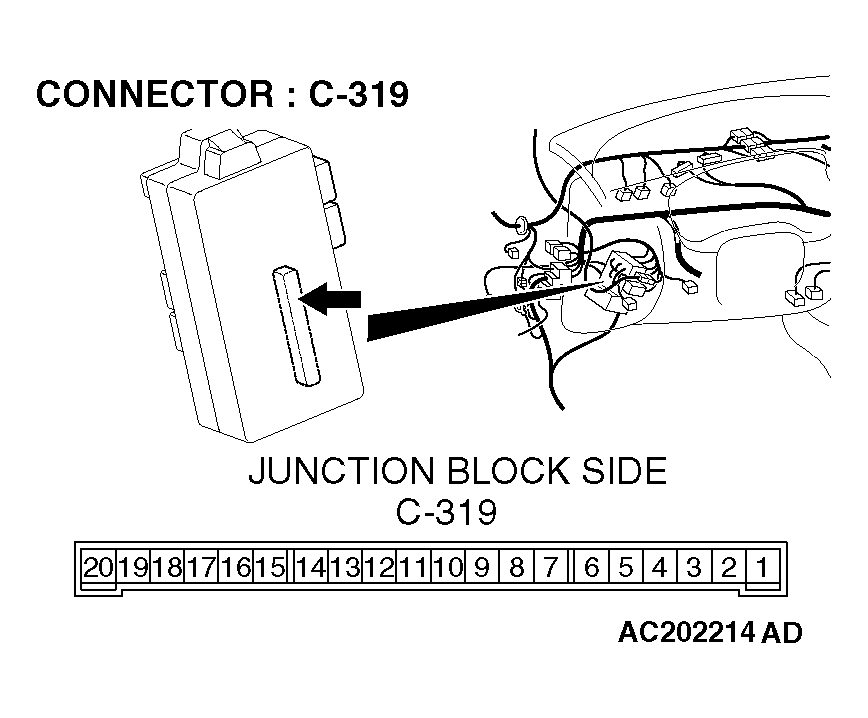

    Fig 3: Identifying Connector C-319 - Junction Block Side
    G04541473Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the wiring harness between ETACS-ECU connector C-319 (terminal 20) and battery.
    Fig 4: Identifying Connector C-319 - Junction Block Side
    G04541474Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check junction block connector C-312, joint connector C-141 and intermediate connector C-209 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-312, joint connector C-141 or intermediate connector C-209 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between ETACS-ECU connector C-319 (terminal 20) and the battery in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  Repair the wiring harness. If the functions or equipment, which are described in "CIRCUIT OPERATION ", work normally, the interior light loaded signal should be normal.

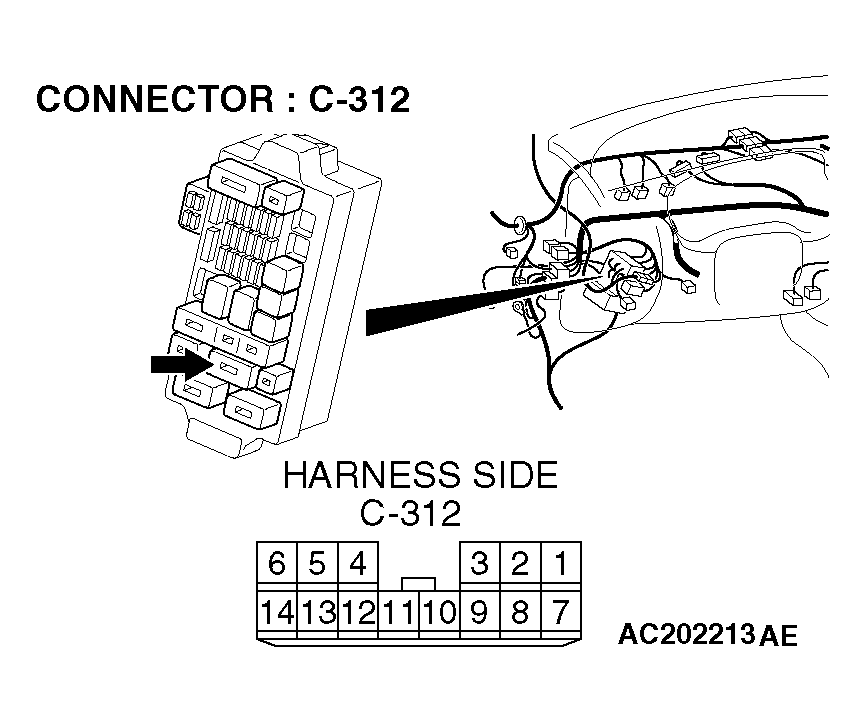

    Fig 5: Identifying Connector C-312 - Harness Side
    G04541475Courtesy of DAIMLERCHRYSLER CORPORATION

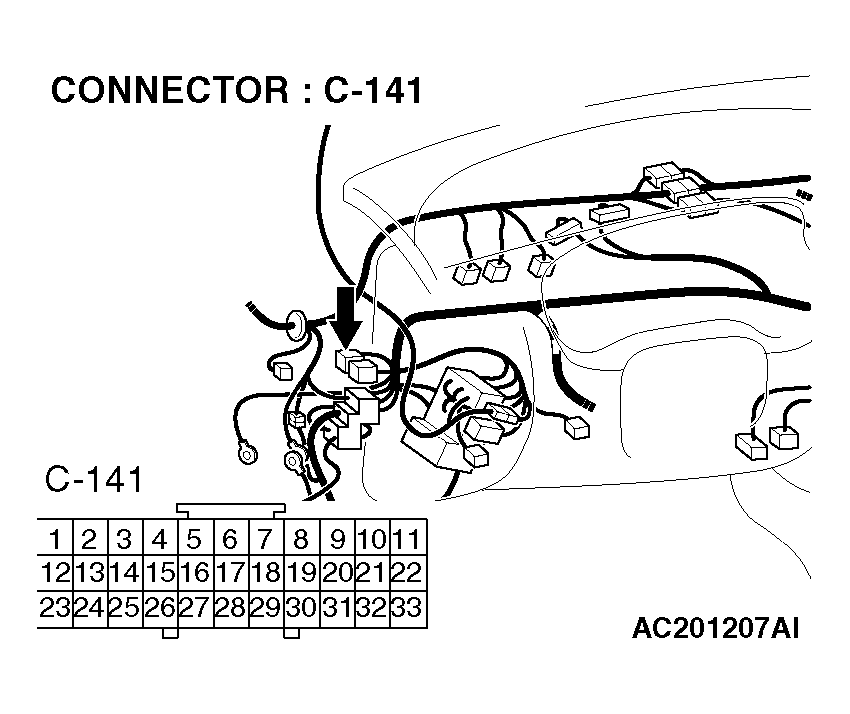

    Fig 6: Identifying Connector C-141
    G04541476Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 7: Identifying Connector C-209
    G04541477Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the ignition switch (IG1) circuit to the ETACS-ECU. Test at ETACS-ECU connector C-319.
    1. Disconnect ETACS-ECU connector C-319 and measure the voltage available at the junction block side of the connector.
    2. Turn the ignition switch to the "ON" position.
      Fig 8: Identifying Connector C-319 - Junction Block Side
      G04541478Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between terminal 8 and ground.
      • The voltage should equal approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

    YES  : Go to  Step 7.

    NO:  Go to Step 5.

    Fig 9: Measuring Voltage Between Terminal 8 And Ground
    G04541479Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the ETACS-ECU connector C-319 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is ETACS-ECU connector C-319 in good condition?

    YES  : Go to Step 6.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 10: Identifying Connector C-319 - Junction Block Side
    G04541480Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check the wiring harness between ETACS-ECU connector C-319 (terminal 8) and the ignition switch (IG1).
    Fig 11: Identifying Connector C-319 - Junction Block Side
    G04541481Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check junction block connector C-311 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-311 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between ETACS-ECU connector C-319 (terminal 8) and the ignition switch (IG1) in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  Repair the wiring harness. If the functions or equipment, which are described in "CIRCUIT OPERATION ", work normally, the interior light loaded signal should be normal.

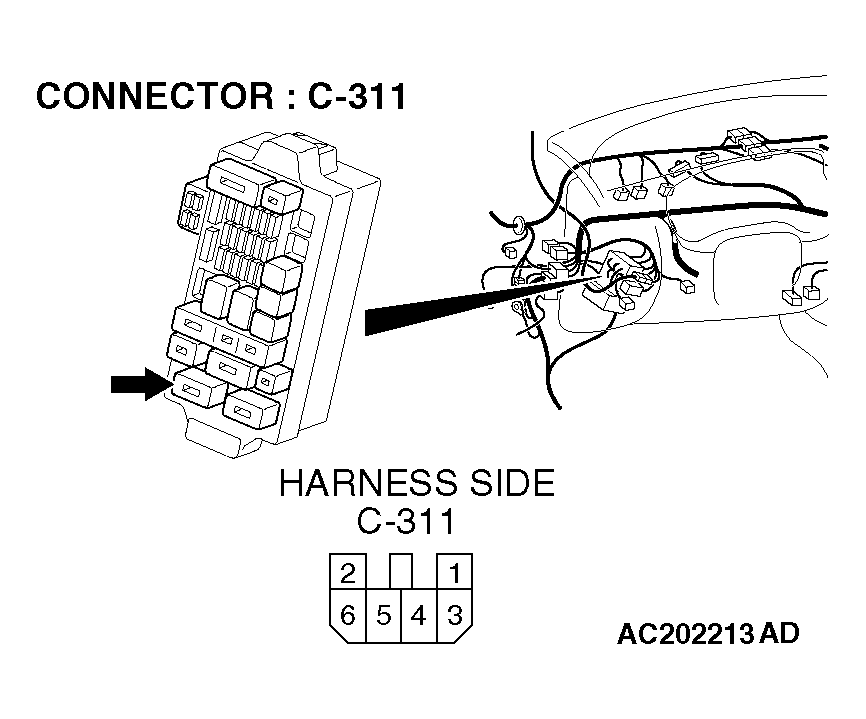

    Fig 12: Identifying Connector C-311 - Harness Side
    G04541482Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the ignition switch (ACC) circuit to the ETACS-ECU. Test at ETACS-ECU connector C-319.
    1. Disconnect ETACS-ECU connector C-319 and measure the voltage available at the junction block side of the connector.
    2. Turn the ignition switch to the "ACC" position.
      Fig 13: Identifying Connector C-319 - Junction Block Side
      G04541483Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between terminal 4 and ground.
      • The voltage should equal approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

    YES  : Replace the ETACS-ECU. If the functions or equipment, which are described in "CIRCUIT OPERATION ", work normally, the interior light loaded signal should be normal.

    NO:  Go to Step 8.

    Fig 14: Measuring Voltage Between Terminal 4 And Ground
    G04541484Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Check the ETACS-ECU connector C-319 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is ETACS-ECU connector C-319 in good condition?

    YES  : Go to Step 9.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 15: Identifying Connector C-319 - Junction Block Side
    G04541485Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Check the wiring harness between ETACS-ECU connector C-319 (terminal 4) and the ignition switch (ACC).
    Fig 16: Identifying Connector C-319 - Junction Block Side
    G04541486Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check junction block connector C-312 and intermediate connector C-209 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If junction block connector C-312 and intermediate connector C-209 are damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between ETACS-ECU connector C-319 (terminal 4) and ignition switch (ACC) in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  Repair the wiring harness. If the functions or equipment, which are described in "CIRCUIT OPERATION ", work normally, the interior light loaded signal should be normal.

    Fig 17: Identifying Connector C-312 - Harness Side
    G04541487Courtesy of DAIMLERCHRYSLER CORPORATION

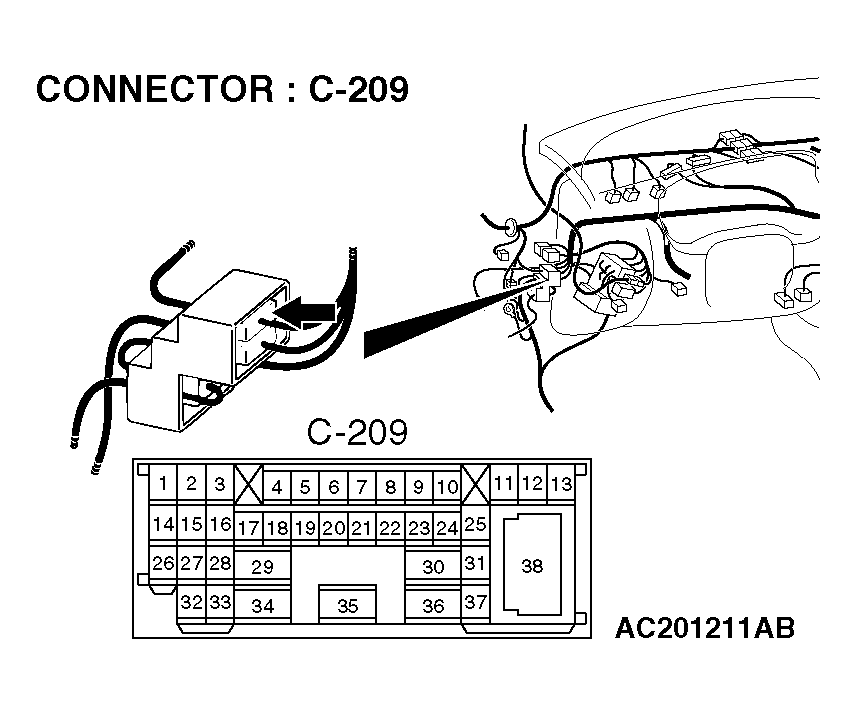

    Fig 18: Identifying Connector C-209
    G04541488Courtesy of DAIMLERCHRYSLER CORPORATION
