INSPECTION PROCEDURE O-15: Column switch: The windshield mist wiper switch, windshield intermittent wiper switch, windshield low-speed wiper switch, windshield high-speed wiper switch or windshield washer switch signal is not sent to the ETACS-ECU.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

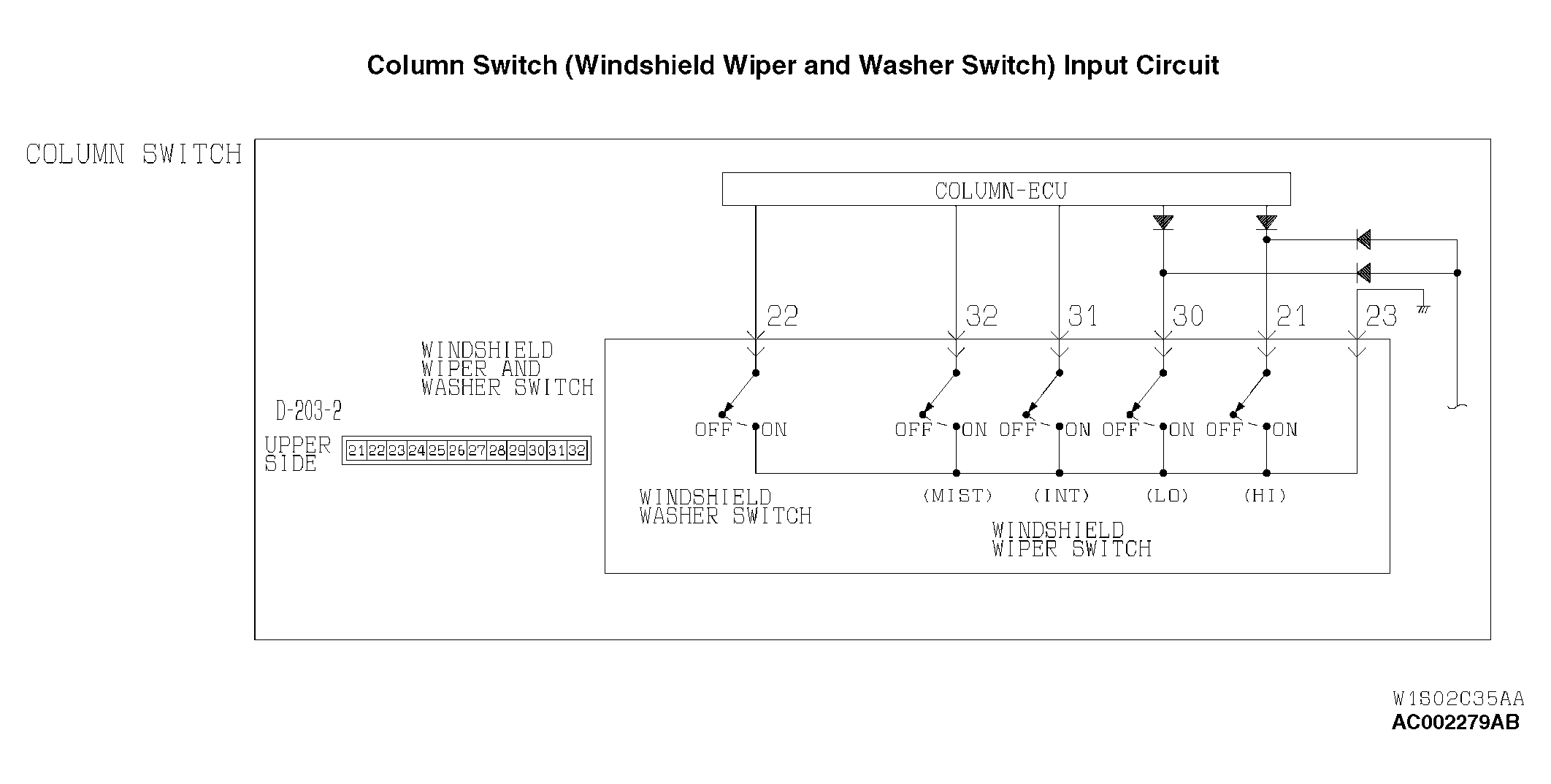

Fig 1: Column Switch (Windshield Wiper and Washer Switch) Input Circuit Diagram
G04541454Courtesy of DAIMLERCHRYSLER CORPORATION
