INSPECTION PROCEDURE O-13: The speed sensor signal is not sent to the ETACS-ECU.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

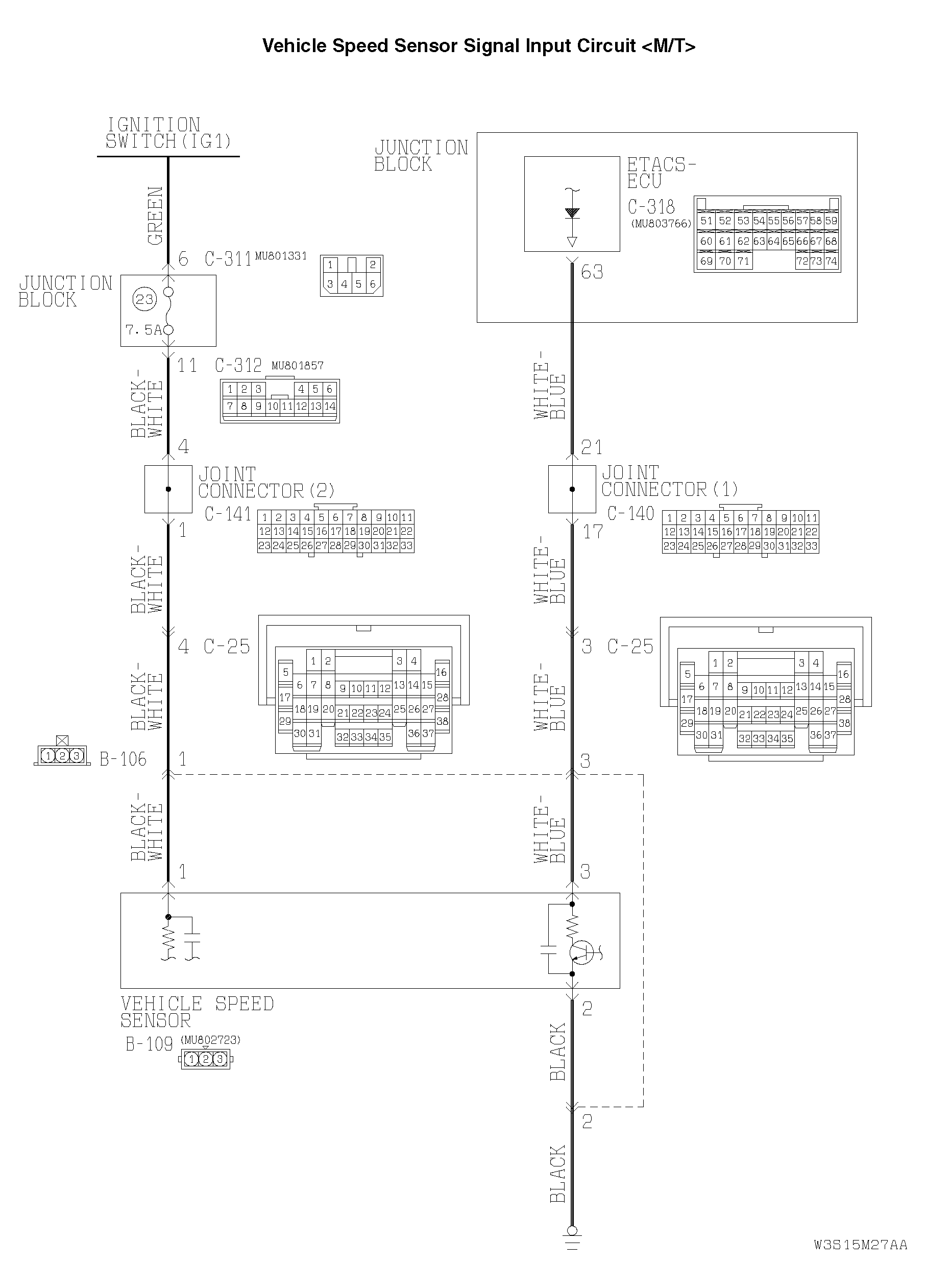

Fig 1: Vehicle Speed Sensor Signal Input Circuit Diagram ( M/T )
G04541438Courtesy of DAIMLERCHRYSLER CORPORATION

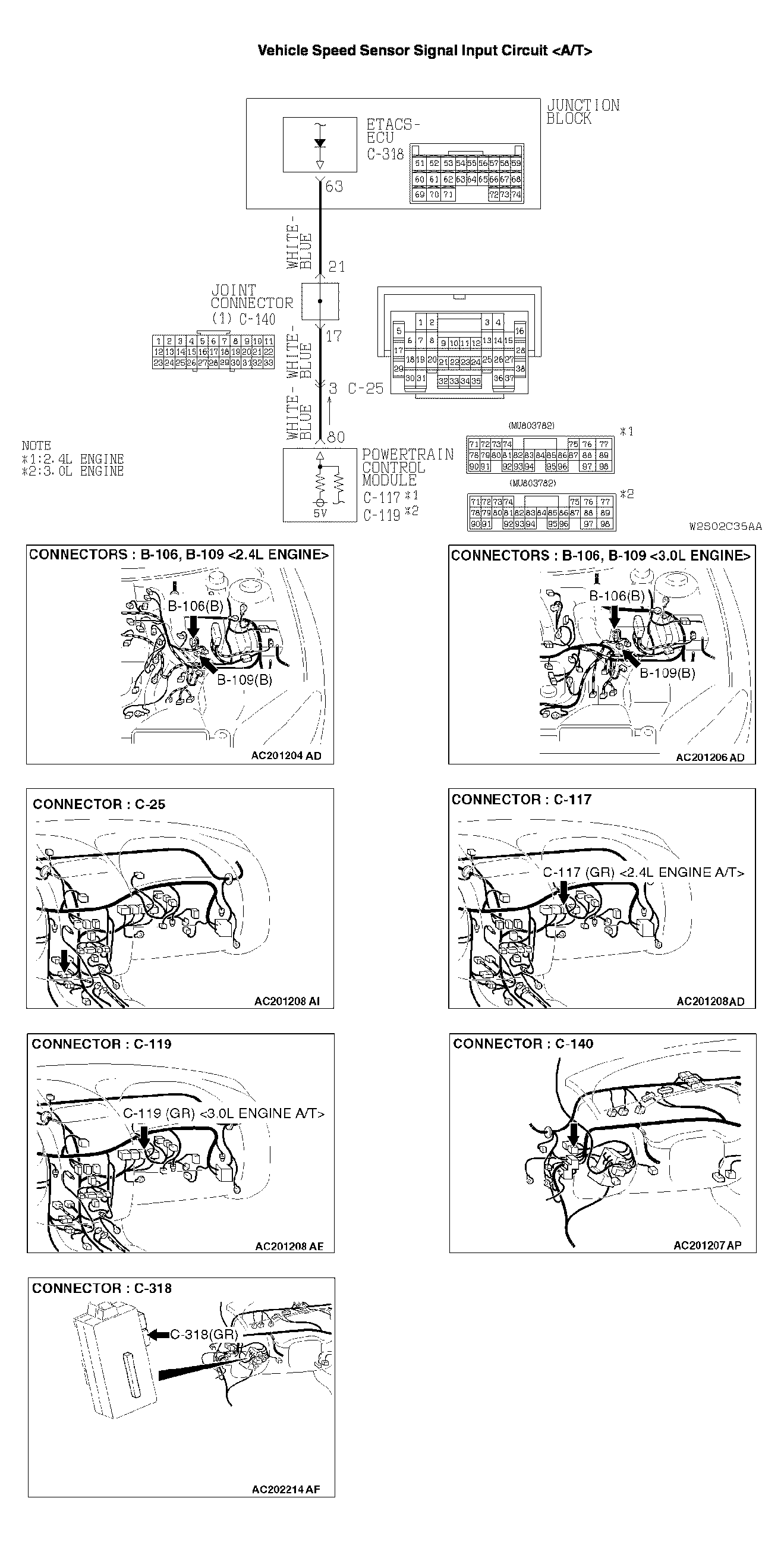

Fig 2: Vehicle Speed Sensor Signal Input Circuit Diagram ( A/T )
G04541439Courtesy of DAIMLERCHRYSLER CORPORATION
