INSPECTION PROCEDURE O-12: The trunk lid latch switch signal is not sent to the ETACS-ECU.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

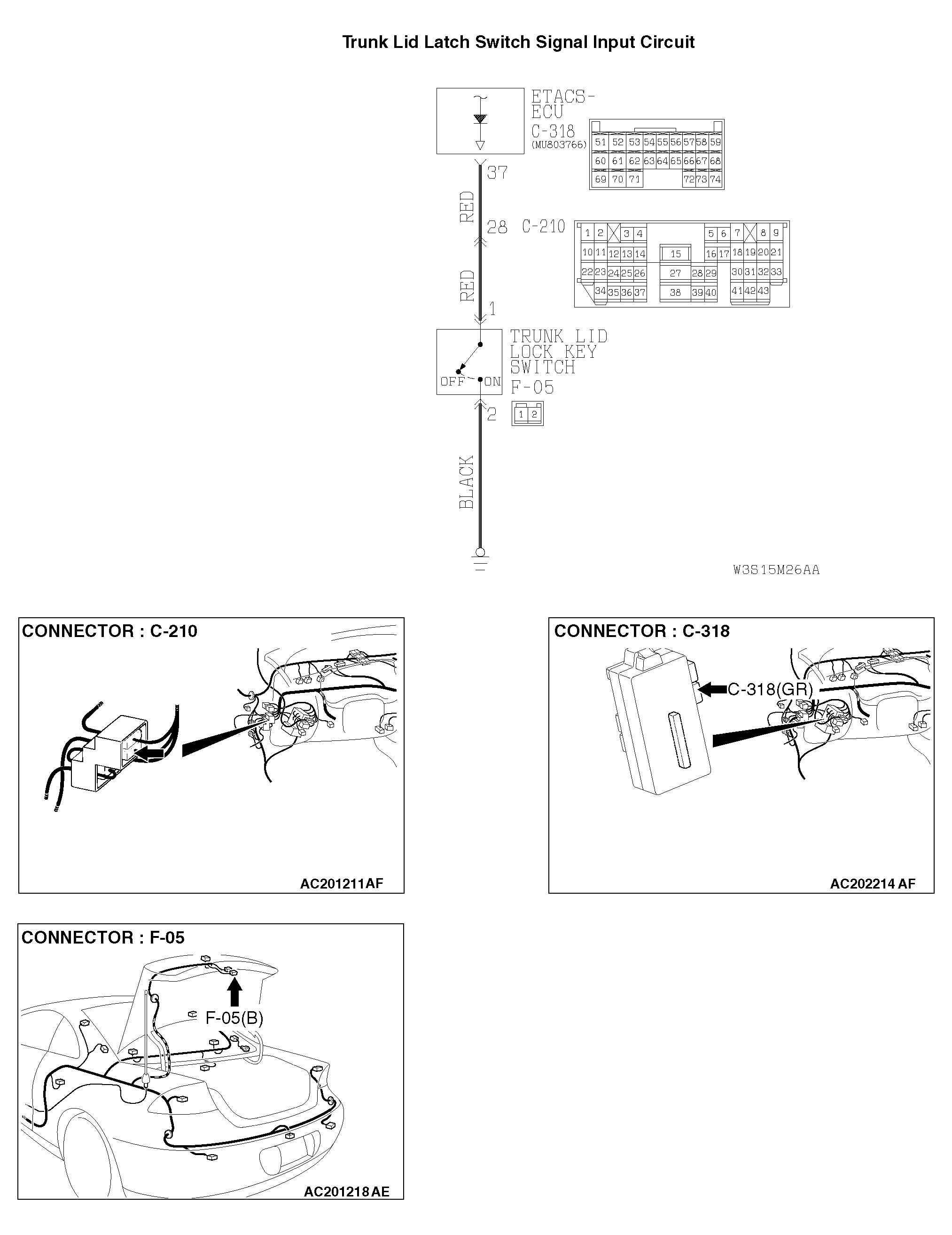

Fig 1: Trunk Lid Latch Switch Signal Input Circuit Diagram
G04541426Courtesy of DAIMLERCHRYSLER CORPORATION
