INSPECTION PROCEDURE O-12: The trunk lid latch switch signal is not sent to the ETACS-ECU.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the trunk lid latch switch.
    TESTER CONNECTION SPECIFIED CONDITION CHART

    SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
    LOCK 1 - 2 Open circuit
    UNLOCK 1 - 2 Less than 2 ohms

    Q: Is the trunk lid latch switch in good condition?

    YES  : Go to Step 2.

    NO:  Replace it. The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 1: Identifying Connector F-05 - Harness Side
    G04541427Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 2: Checking Trunk Lid Latch Switch
    G04541428Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the ground circuit to the trunk lid latch switch. Test at trunk lid latch switch connector F-05.
    1. Disconnect trunk lid latch switch connector F-05 and measure the resistance available at the wiring harness side of the connector.
      Fig 3: Identifying Connector F-05 - Harness Side
      G04541429Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the resistance between terminal 2 and ground.
      • The resistance should equal 2 ohms or less.

    Q: Is the measured resistance 2 ohms or less?

    YES  : Go to  Step 5.

    NO:  Go to Step 3.

    Fig 4: Measuring Resistance Between Terminal 2 And Ground
    G04541430Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the trunk lid latch switch connector F-05 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is trunk lid latch switch connector F-05 in good condition?

    YES  : Go to Step 4.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 5: Identifying Connector F-05 - Harness Side
    G04541431Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the wiring harness between trunk lid latch switch connector F-05 (terminal 2) and ground.

    Q: Is the wiring harness between trunk lid latch switch connector F-05 (terminal 2) and ground in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 6: Identifying Connector F-05 - Harness Side
    G04541432Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the trunk lid latch switch connector F-05 and ETACS-ECU connector C-318 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are trunk lid latch switch connector F-05 and ETACS-ECU connector C-318 in good condition?

    YES  : Go to Step 6.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 7: Identifying Connector F-05 - Harness Side
    G04541433Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 8: Identifying Connector C-318 - Harness Side
    G04541434Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check the wiring harness between trunk lid latch switch connector F-05 (terminal 1) and ETACS-ECU connector C-318 (terminal 37).

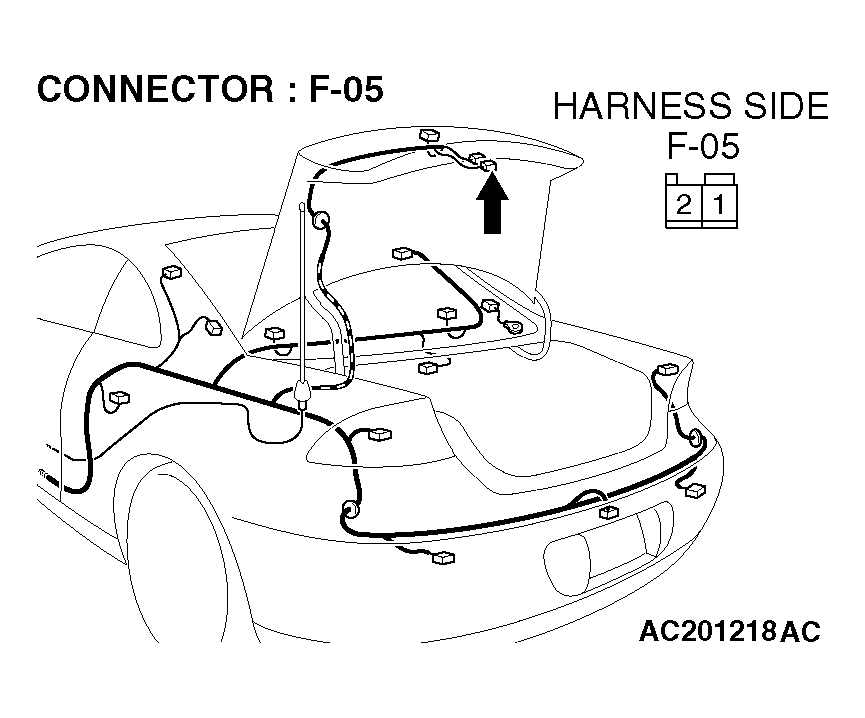

    Fig 9: Identifying Connector F-05 - Harness Side
    G04541435Courtesy of DAIMLERCHRYSLER CORPORATION

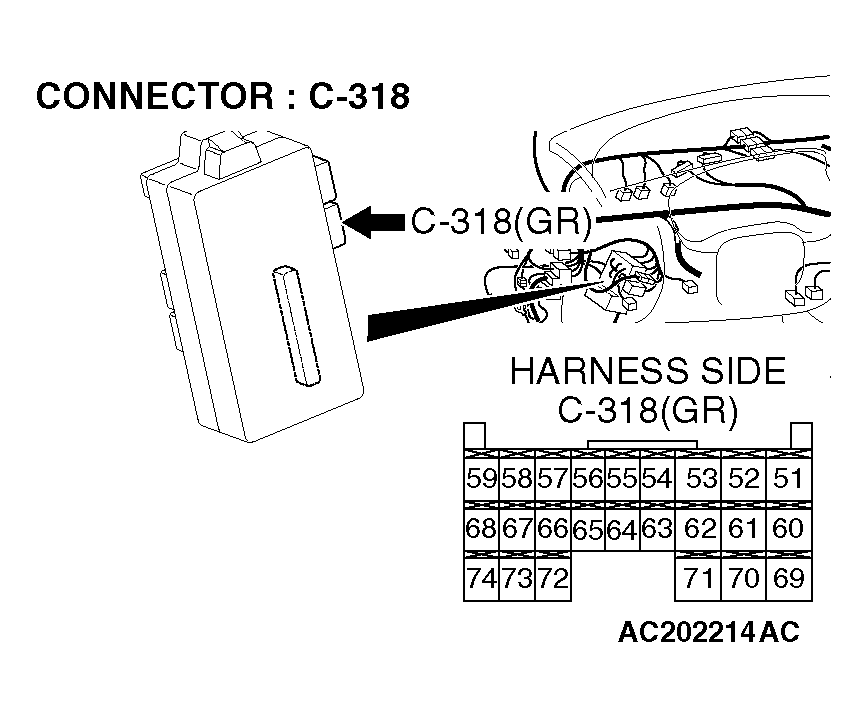

    Fig 10: Identifying Connector C-318 - Harness Side
    G04541436Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-210 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-210 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Are the wiring harness between trunk lid latch switch connector F-05 (terminal 1) and ETACS-ECU connector C-318 (terminal 37) in good condition?

    YES  : Replace the ETACS-ECU. The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The input signal from the trunk lid latch switch should be able to be checked and the functions, which are described in the "TECHNICAL DESCRIPTION (COMMENT) ," should work normally.

    Fig 11: Identifying Connector C-210
    G04541437Courtesy of DAIMLERCHRYSLER CORPORATION
