INSPECTION PROCEDURE O-10: The driver's or passenger's door lock actuator switch is not sent to the ETACS-ECU.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

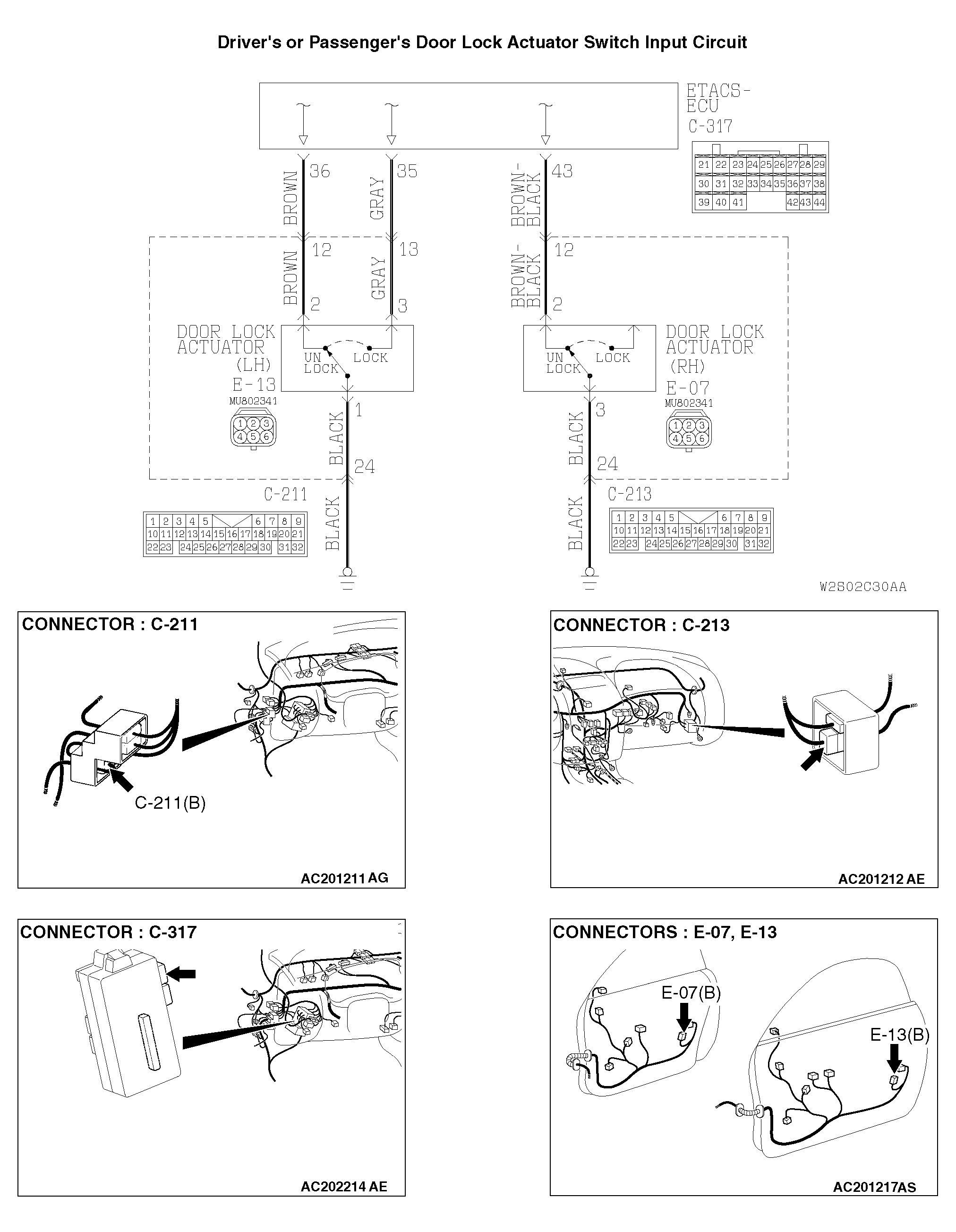

Fig 1: Driver's or Passenger's Door Lock Actuator Switch Input Circuit Diagram
G04541376Courtesy of DAIMLERCHRYSLER CORPORATION
