INSPECTION PROCEDURE N-2: Theft-alarm system: Horn does not sound when the theft-alarm is triggered.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

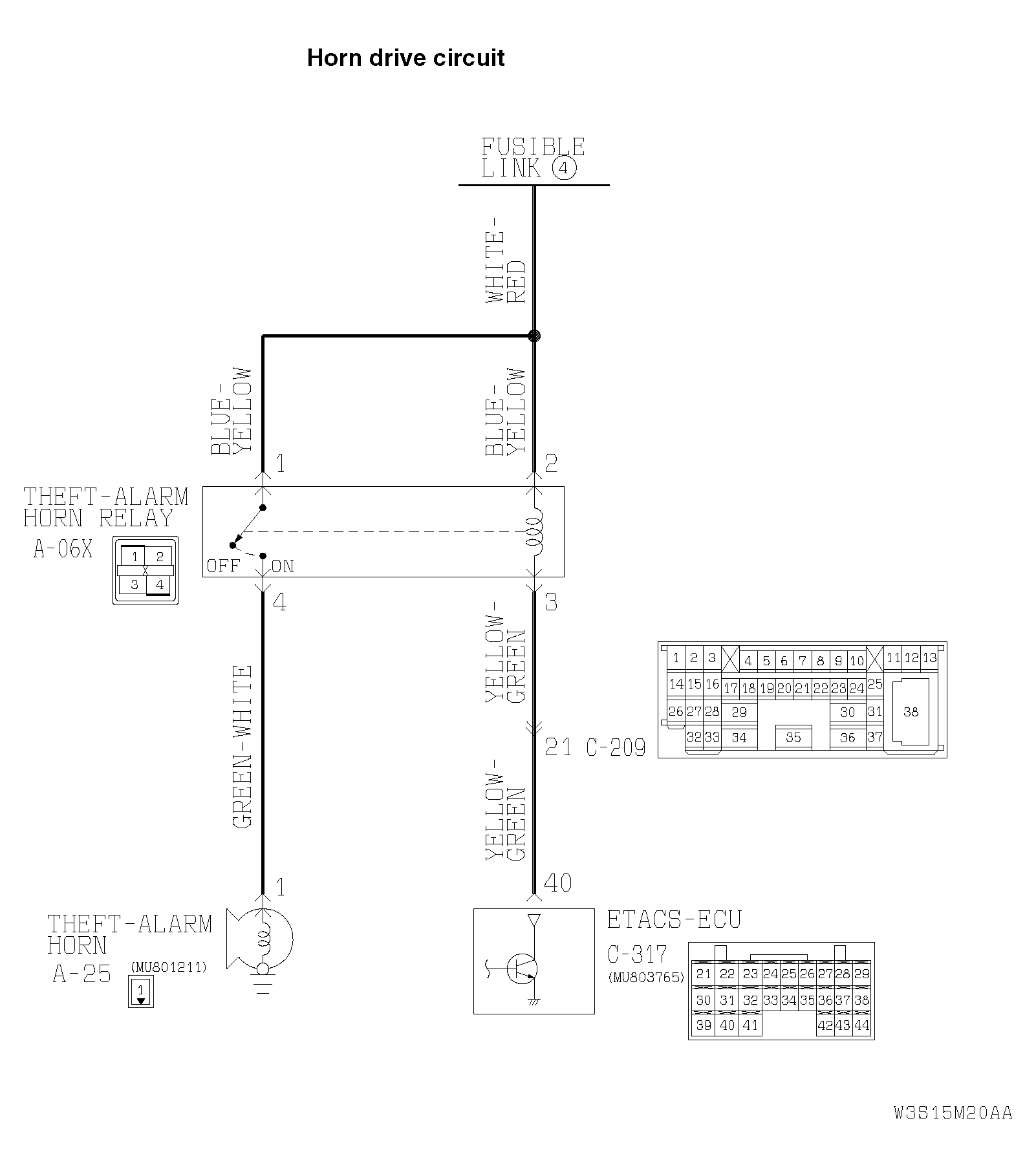

Fig 1: Horn Drive Circuit Diagram
G04541239Courtesy of DAIMLERCHRYSLER CORPORATION

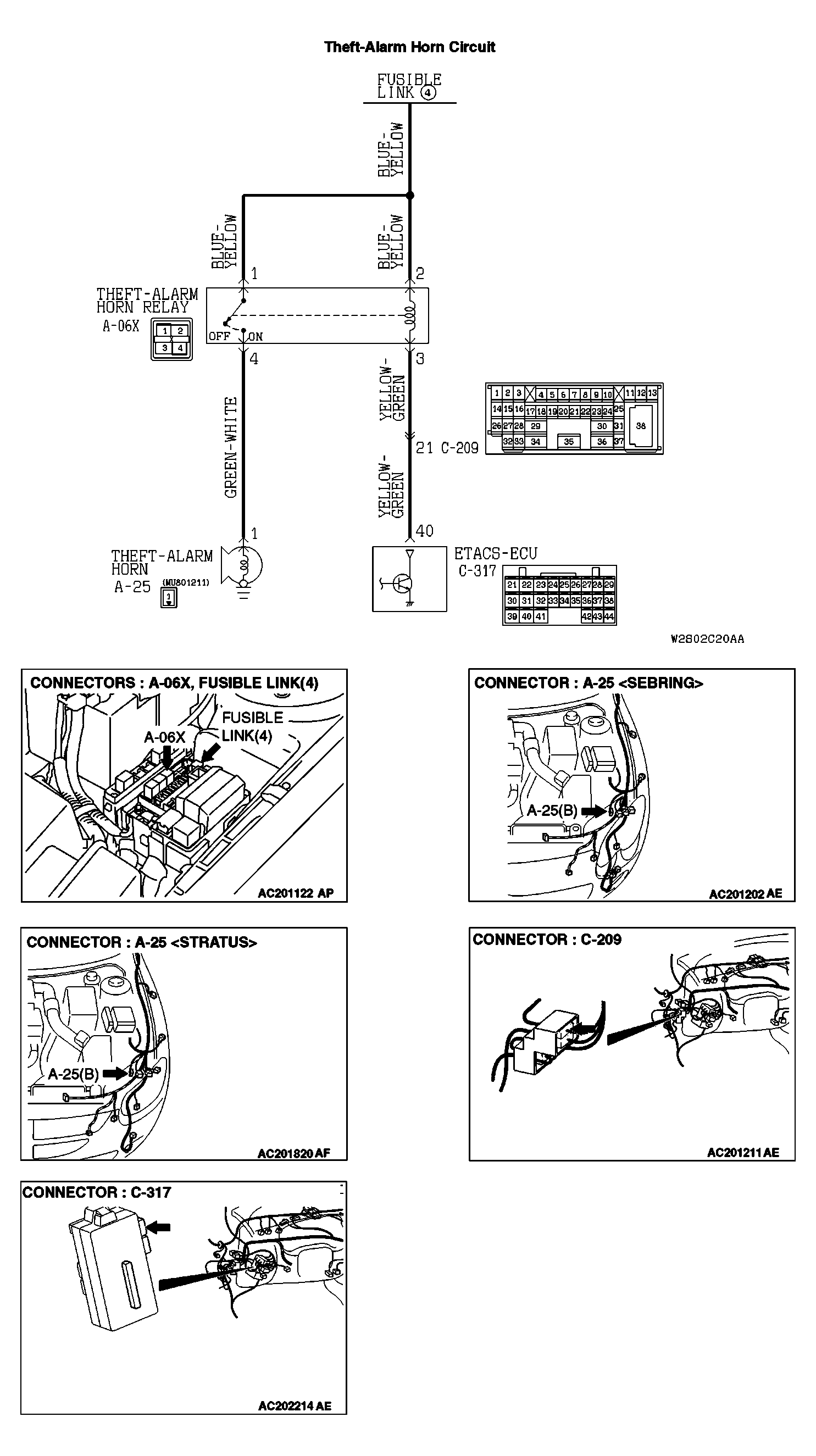

Fig 2: Theft-Alarm Horn Circuit Diagram
G04541240Courtesy of DAIMLERCHRYSLER CORPORATION
