INSPECTION PROCEDURE L-1: Fog Light: Fog lights do not illuminate when the fog light switch is turned on.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

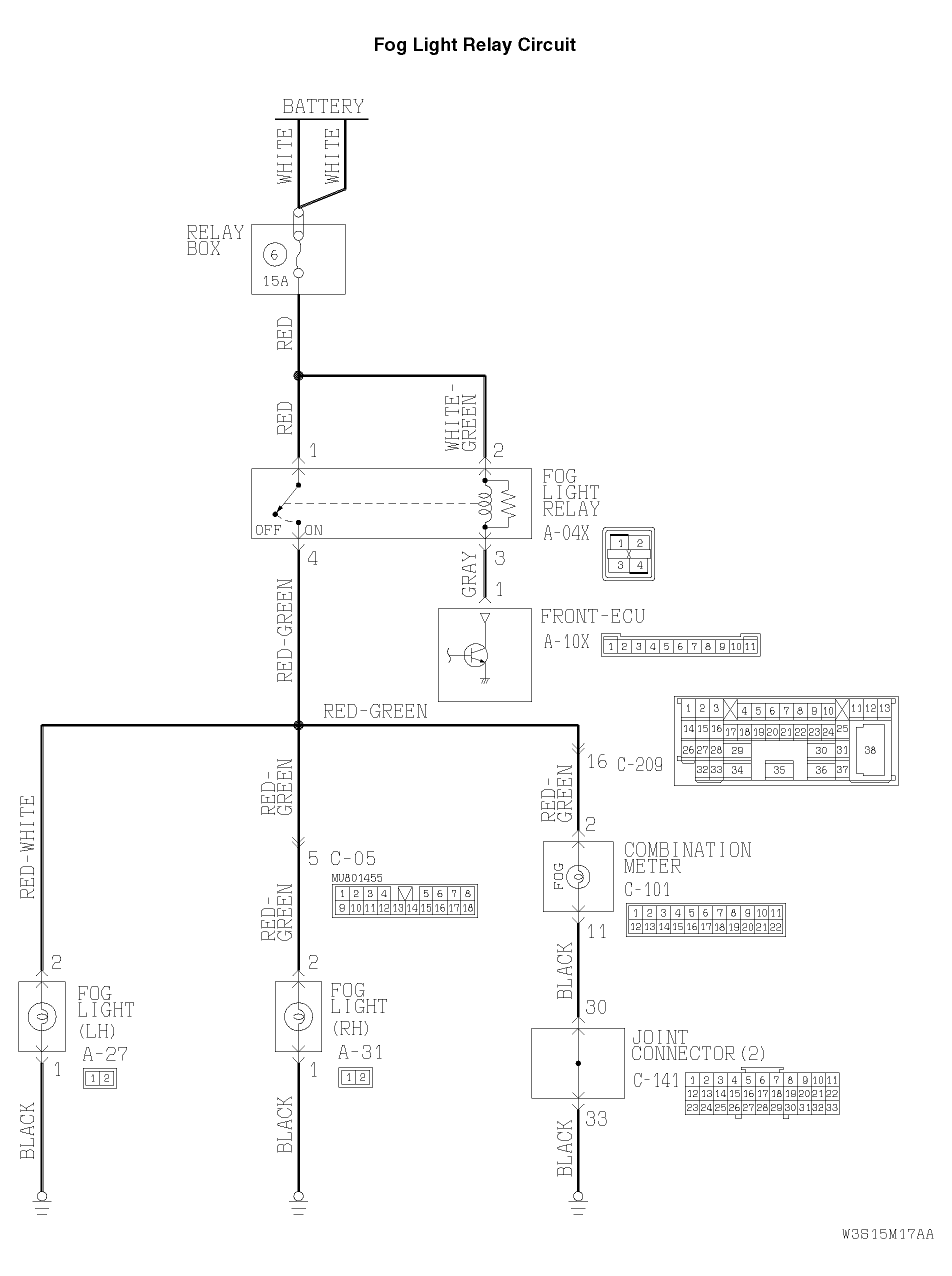

Fig 1: Fog Light Relay Circuit Diagram
G04541190Courtesy of DAIMLERCHRYSLER CORPORATION

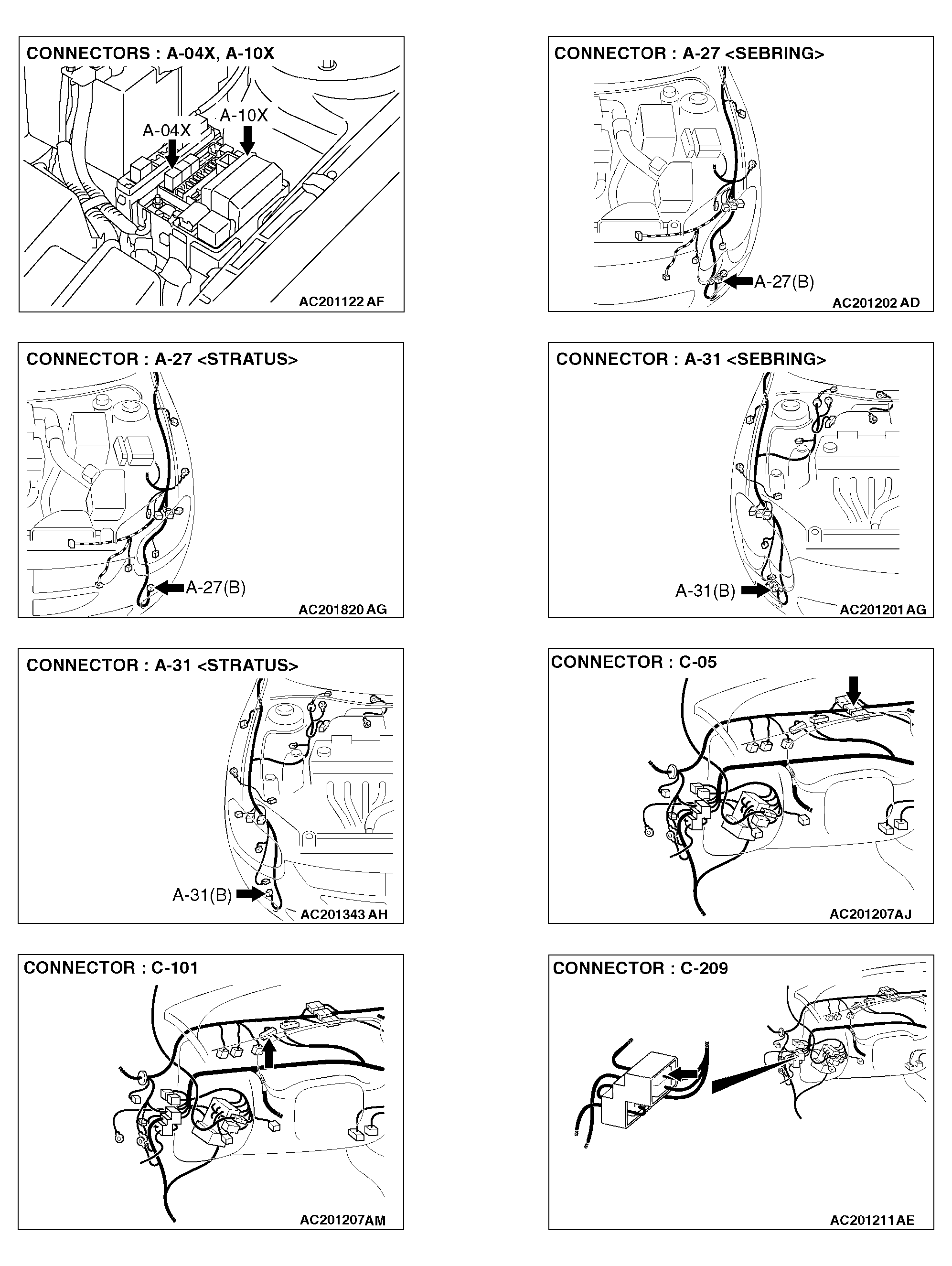

Fig 2: Identifying Fog Light Relay Connectors
G04541191Courtesy of DAIMLERCHRYSLER CORPORATION
