INSPECTION PROCEDURE J-2: Headlight, Taillight: Headlights (low-beam) do not illuminate.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

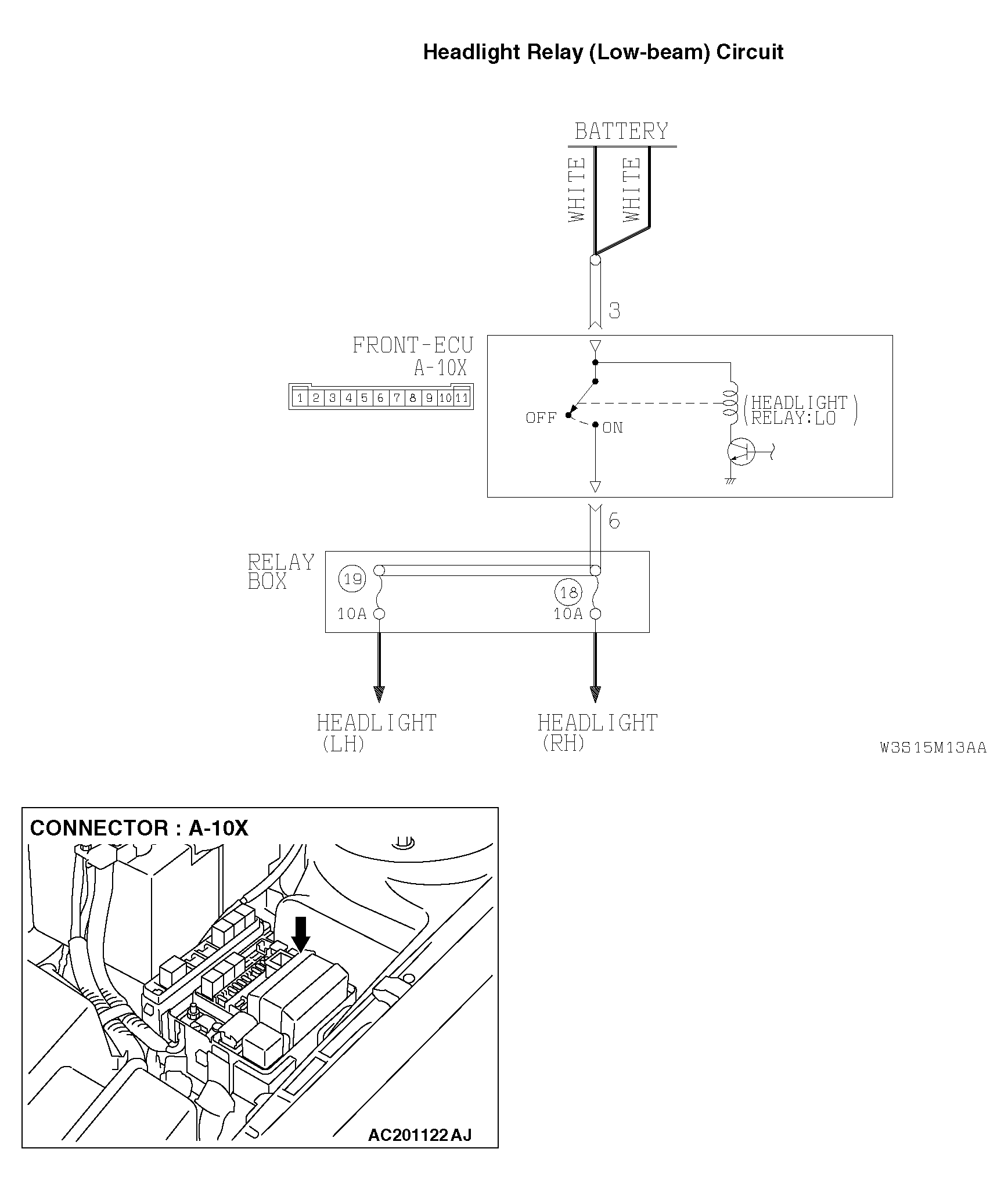

Fig 1: Headlight Relay (Low-Beam) Circuit Diagram
G04541150Courtesy of DAIMLERCHRYSLER CORPORATION
