INSPECTION PROCEDURE G-5: Windshield Wiper and Washer: Windshield washer does not work.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Verify the windshield wiper.

    Q: Does the windshield wiper operate normally?

    YES  : Go to Step 2 < when using scan tool MB991502 > or Step 3 < when using a voltmeter >.

    NO:  Refer to INSPECTION PROCEDURE G-1 "WINDSHIELD WIPER DOES NOT WORK AT ALL  ."

  2. STEP 2. Check the input signal (by using scan tool MB991502).

    Check the input signal from the windshield washer switch.

    CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
    1. Connect scan tool MB991502 to the data link connector.
    2. Check that the tone alarm of scan tool MB991502 sounds when the input signal enters.

    Q: Does the tone alarm of scan tool MB991502 sound when the input signal enters?

    YES  : Go to  Step 4.

    NO:  Scan tool MB991502 does not sound when the windshield washer switch is turned from "OFF" to "ON": Refer to INSPECTION PROCEDURE O-15 "THE WINDSHIELD WASHER SIGNAL IS NOT SENT TO THE ETACS-ECU  ."

    Fig 1: Connecting Scan Tool MB991502 To Data Link Connector
    G04541089Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the input signal (by using a voltmeter).

    Check the input signal from the windshield washer switch.

    1. Use special tool MB991529 to connect a voltmeter between ground terminal 4 or 5 and ETACS-ECU terminal 9 of the data link connector.
    2. Check that the voltmeter indicator deflects once when the input signal enters.

    Q: Does the voltmeter indicator deflect?

    YES  : Go to Step 4.

    NO:  The voltmeter needle does not fluctuate when the windshield washer switch is turned from "OFF" to "ON": Refer to INSPECTION PROCEDURE O-15 "THE WINDSHIELD WASHER SIGNAL IS NOT SENT TO THE ETACS-ECU  ."

    Fig 2: Connecting Voltmeter Between Ground Terminal 4 And 5
    G04541090Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the windshield washer motor.
    1. Disconnect windshield washer motor connector A-33, and check at windshield washer motor connector side.
    2. Fill the windshield washer tank with washer fluid.
    3. When battery voltage is applied between terminals 1 and 2, washer fluid should gush out.

    Q: Does the windshield washer motor operate normally?

    YES  : Go to Step 5.

    NO:  Replace the windshield washer motor. Verify that the windshield washer works normally.

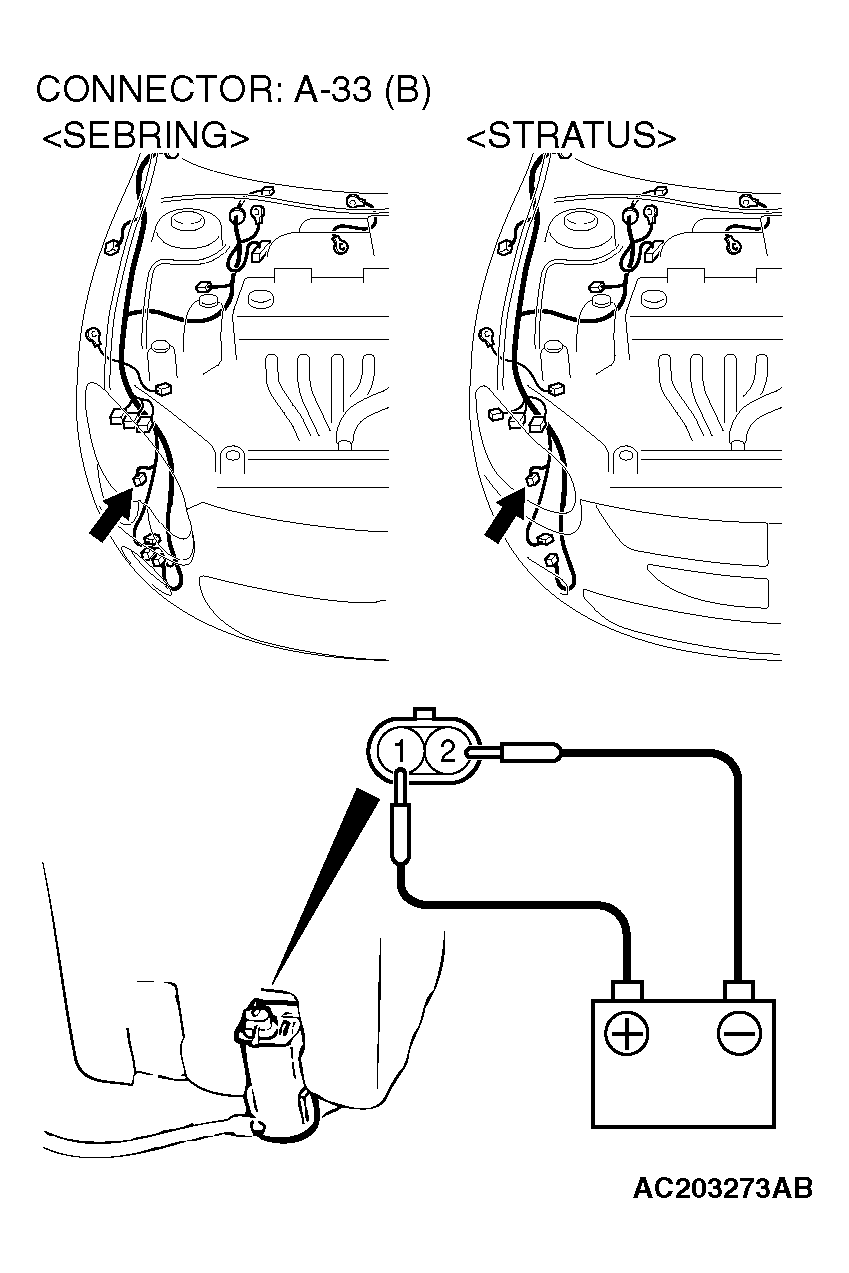

    Fig 3: Applying Battery Voltage Between Terminals 1 And 2
    G04541091Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the ground circuit to the windshield washer motor. Test at windshield washer motor connector A-33.
    1. Disconnect windshield washer motor connector A-33 and measure the resistance available at the wiring harness side of the connector.

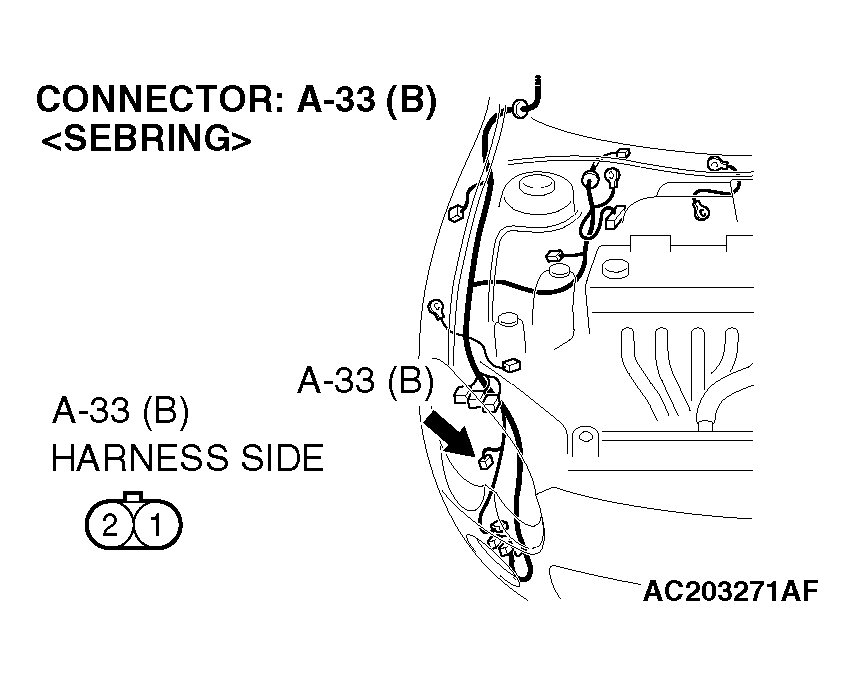

      Fig 4: Identifying Windshield Washer Motor Connector A-33
      G04541092Courtesy of DAIMLERCHRYSLER CORPORATION
      Fig 5: Identifying Windshield Washer Motor Connector A-33
      G04541093Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Measure the resistance value between terminal 2 and ground.
      • The resistance should be 2 ohms or less.

    Q: Is the measured resistance 2 ohms or less?

    YES  : Go to  Step 8.

    NO:  Go to Step 6.

    Fig 6: Measuring Resistance Value Between Terminal 2 And Ground
    G04541094Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check windshield washer motor connector A-33 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is windshield washer motor connector A-33 in good condition?

    YES  : Go to Step 7.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . Verify that the windshield washer works normally.

    Fig 7: Identifying Windshield Washer Motor Connector A-33
    G04541095Courtesy of DAIMLERCHRYSLER CORPORATION

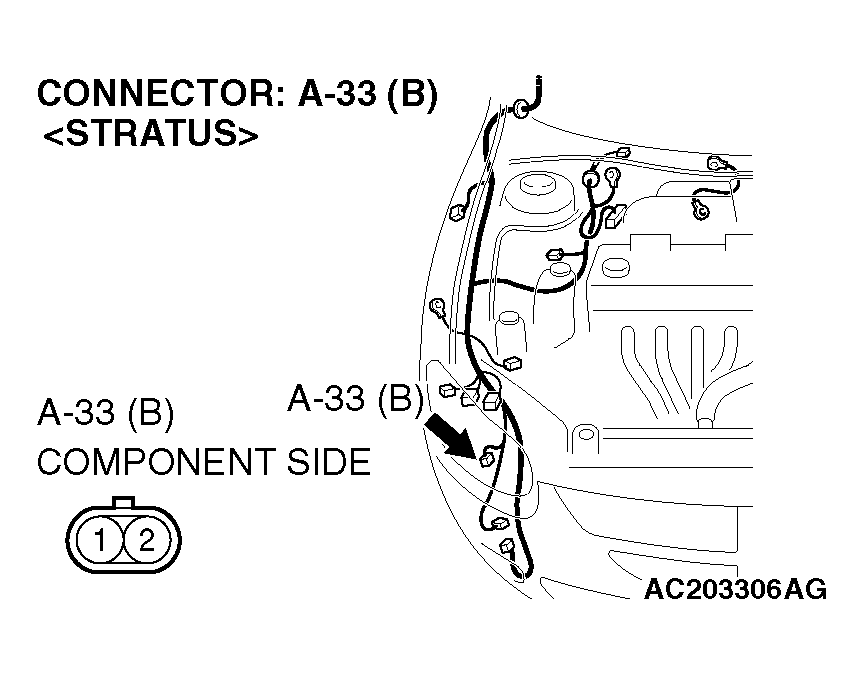

    Fig 8: Identifying Windshield Washer Motor Connector A-33
    G04541096Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the wiring harness between windshield washer motor connector A-33 (terminal 2) and ground.

    Q: Is the wiring harness between windshield washer motor connector A-33 (terminal 2) and ground in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the windshield washer works normally.

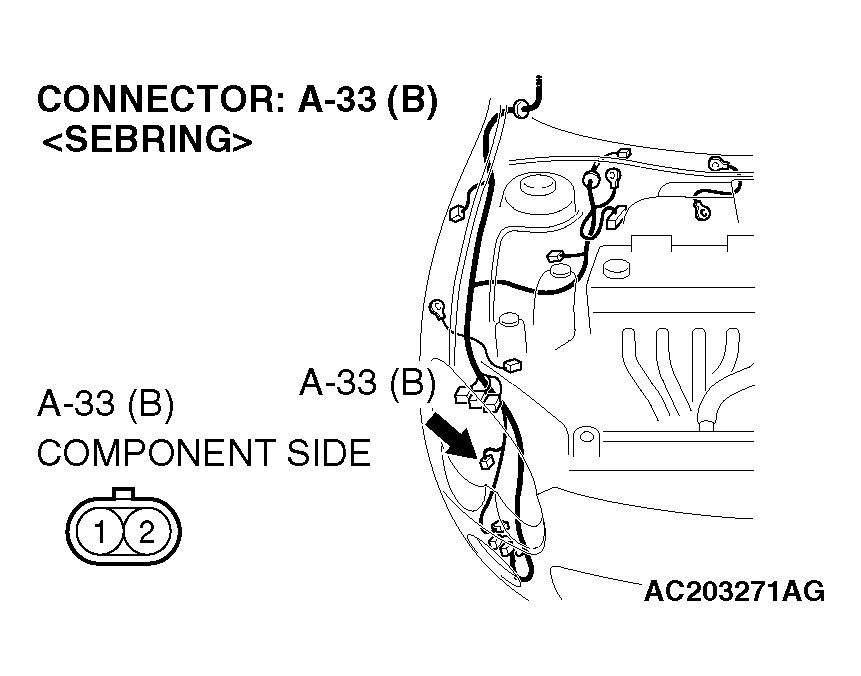

    Fig 9: Identifying Windshield Washer Motor Connector A-33
    G04541097Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 10: Identifying Windshield Washer Motor Connector A-33
    G04541098Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Check windshield washer motor connector A-33 and front-ECU connector A-11X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are windshield washer motor connector A-33 and front-ECU connector A-11X in good condition?

    YES  : Go to Step 9.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . Verify that the windshield washer works normally.

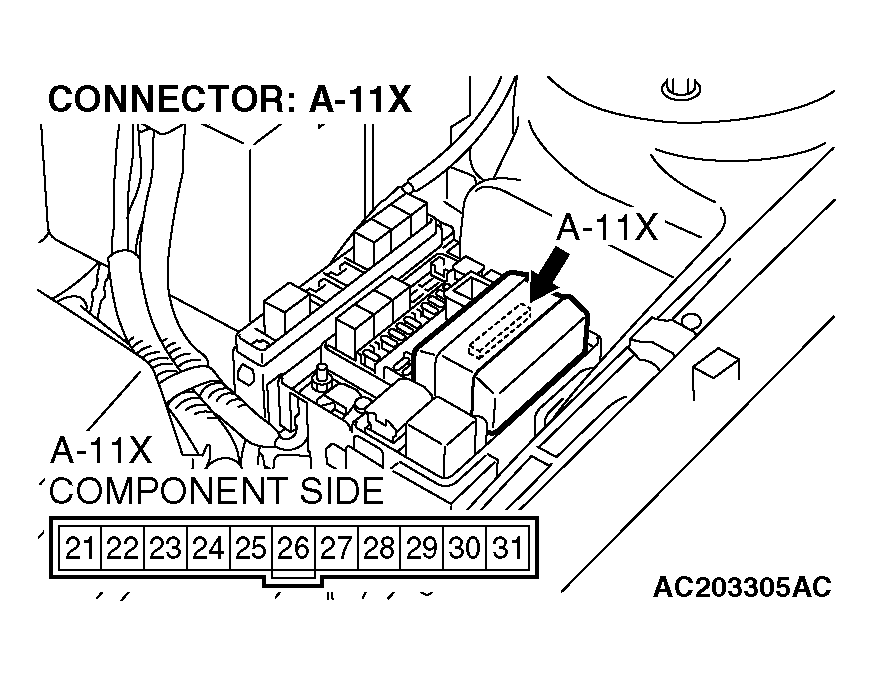

    Fig 11: Identifying Front-ECU Connector A-11X
    G04541099Courtesy of DAIMLERCHRYSLER CORPORATION

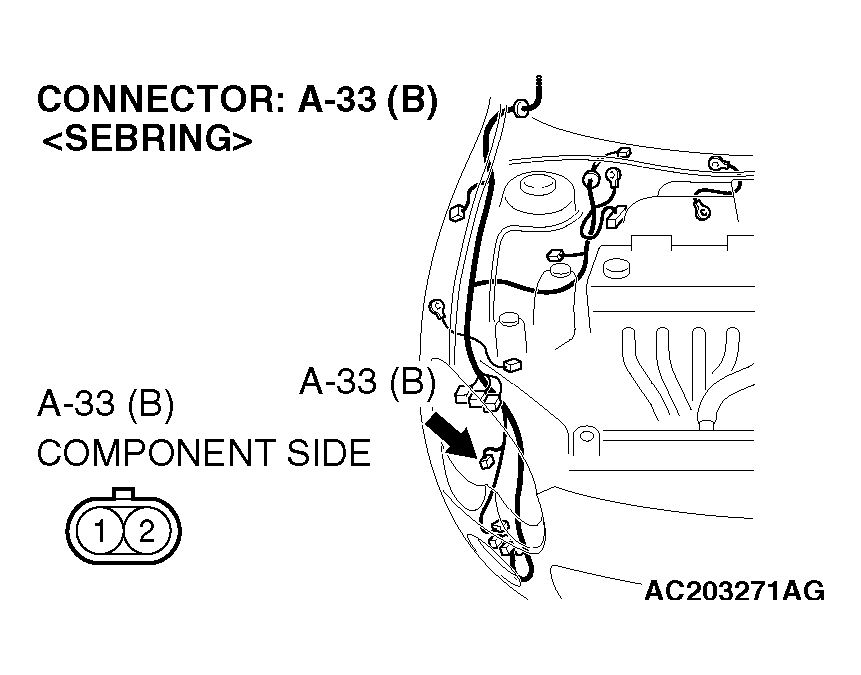

    Fig 12: Identifying Windshield Washer Motor Connector A-33
    G04541100Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 13: Identifying Windshield Washer Motor Connector A-33
    G04541101Courtesy of DAIMLERCHRYSLER CORPORATION
  9. STEP 9. Check the wiring harness between windshield washer motor connector A-33 (terminal 1) and front-ECU connector A-11X (terminal 21).
    Fig 14: Identifying Front-ECU Connector A-11X
    G04541102Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 15: Identifying Windshield Washer Motor Connector A-33
    G04541103Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 16: Identifying Windshield Washer Motor Connector A-33
    G04541104Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-05 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-05 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between windshield washer motor connector A-33 (terminal 1) and front-ECU connector A-11X (terminal 21) in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the windshield washer works normally.

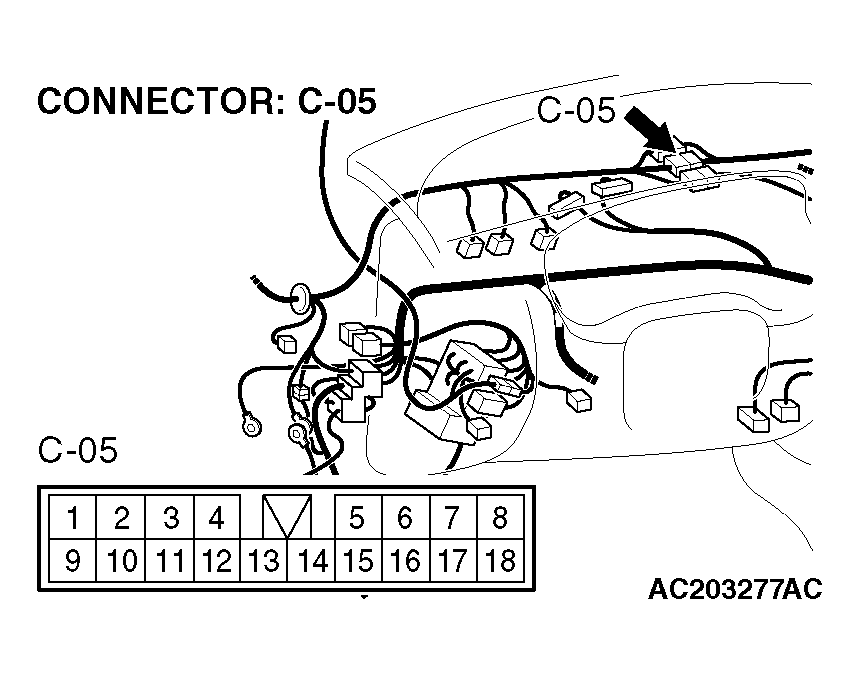

    Fig 17: Identifying Intermediate Connector C-05
    G04541105Courtesy of DAIMLERCHRYSLER CORPORATION
