INSPECTION PROCEDURE G-3: Windshield Wiper and Washer: Windshield wiper does not stop at the predetermined park position.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

  1. STEP 1. Check the windshield wiper motor
    1. Disconnect windshield wiper motor connector A-03.
    2. Connect the windshield wiper motor connector terminal 1 to the positive battery terminal and terminal 5 to the ground as shown (A). See Fig 1. Operate the windshield wiper at low speed. While the windshield wiper is working, disconnect the battery at positions other than the predetermined park position to stop the windshield wiper motor.
    3. When connect the windshield wiper motor connector terminal 3 to the positive battery terminal, terminal 5 to the ground and terminal 1 to terminal 4 as shown (B). See Fig 1. The motor should run at low speed, and then stop at the predetermined park position.

    Q: Does the windshield wiper motor operate normally?

    YES  : Go to Step 2.

    NO:  Replace the windshield wiper motor. The windshield wiper should now stop at the predetermined park position.

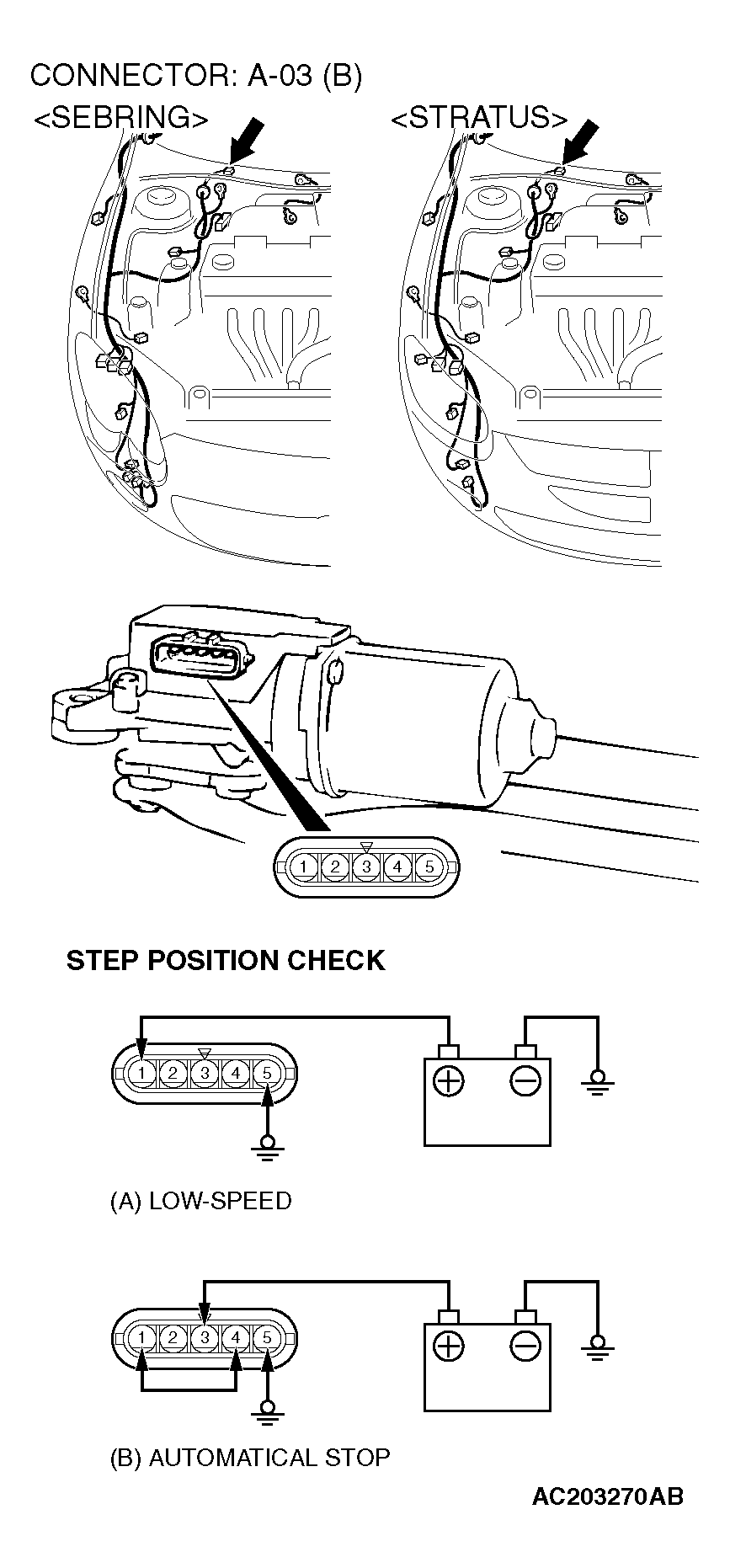

    Fig 1: Identifying Windshield Wiper Motor Connector A-03
    G04541069Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the battery power supply circuit to the windshield wiper motor. Test at windshield wiper motor connector A-03.
    1. Disconnect windshield wiper motor connector A-03 and measure the voltage available at the wiring harness side of the connector.
    2. Turn the ignition switch to the "ACC" position.

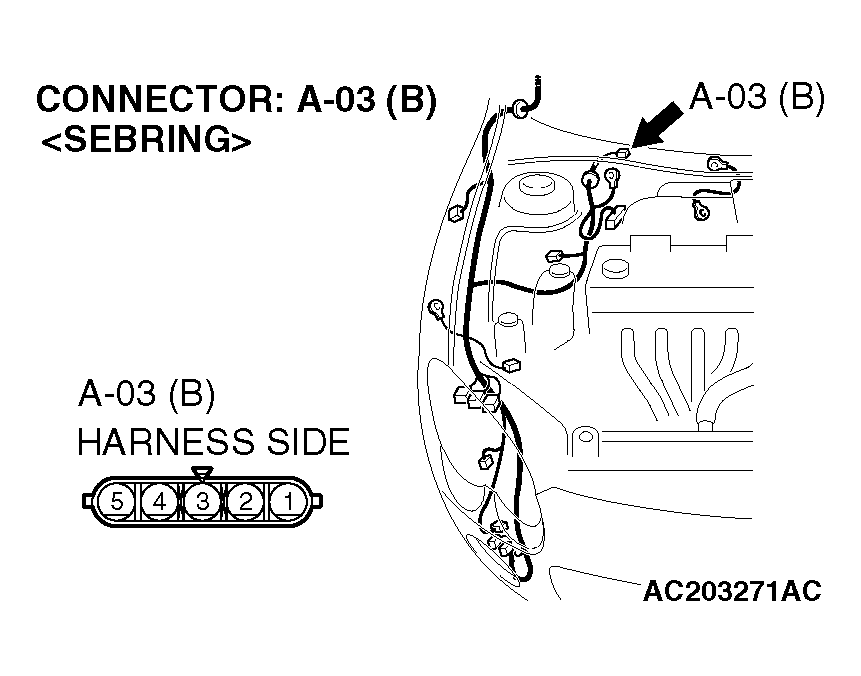

      Fig 2: Identifying Windshield Wiper Motor Connector A-03
      G04541070Courtesy of DAIMLERCHRYSLER CORPORATION

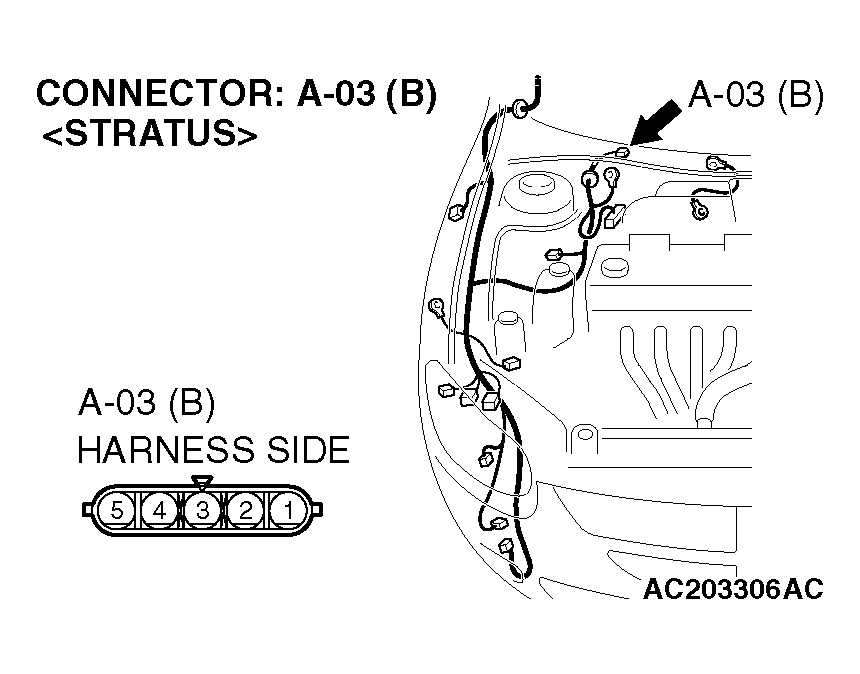

      Fig 3: Identifying Windshield Wiper Motor Connector A-03
      G04541071Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between terminal 3 and ground.
      • The voltage should measure approximately 12 volts (battery positive voltage).

    Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

    YES  : Go to  Step 5.

    NO:  Go to Step 3.

    Fig 4: Measuring Voltage Between Terminal 3 And Ground
    G04541072Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check windshield wiper motor connector A-03 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is windshield wiper motor connector A-03 in good condition?

    YES  : Go to Step 4.

    NO:  Repair or replace the damaged component(s). Refer to , HARNESS CONNECTOR INSPECTION . The windshield wiper should now stop at the predetermined park position.

    Fig 5: Identifying Windshield Wiper Motor Connector A-03
    G04541073Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 6: Identifying Windshield Wiper Motor Connector A-03
    G04541074Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the wiring harness between windshield wiper motor connector A-03 and the ignition switch (ACC).

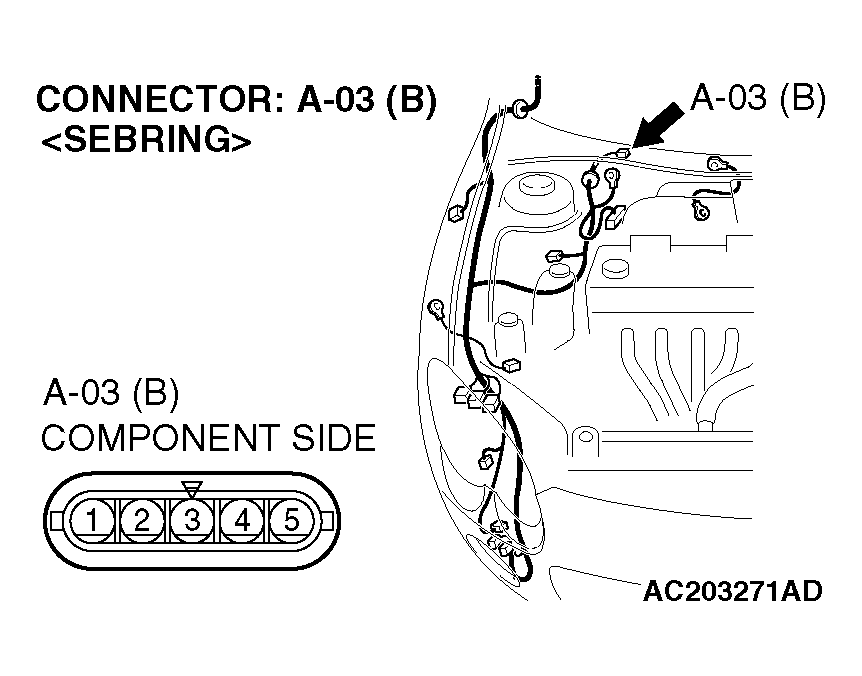

    Fig 7: Identifying Windshield Wiper Motor Connector A-03
    G04541075Courtesy of DAIMLERCHRYSLER CORPORATION

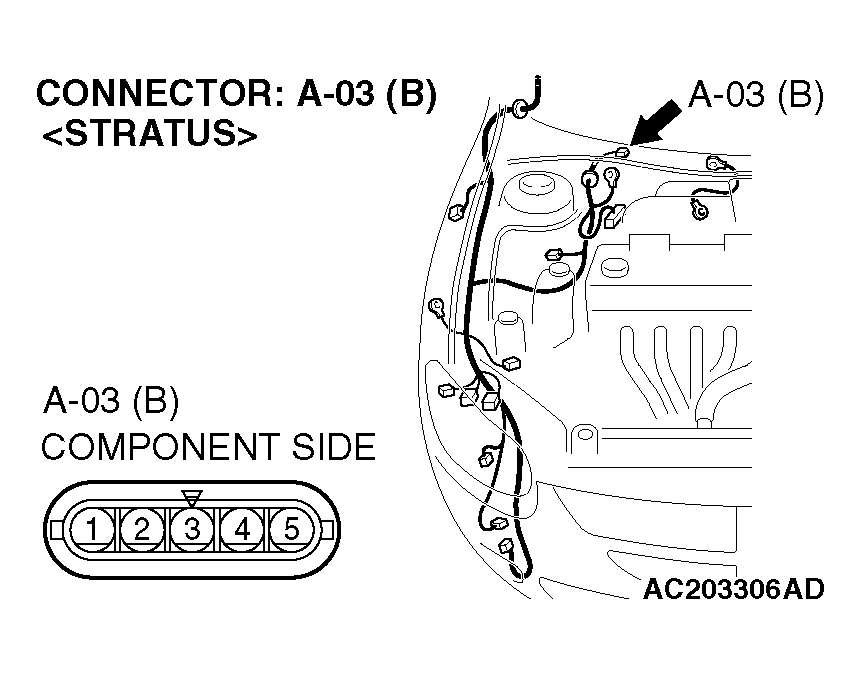

    Fig 8: Identifying Windshield Wiper Motor Connector A-03
    G04541076Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-212, junction block connectors C-311 and C-312 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-212, junction block connector C-311 or C-312 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between windshield wiper motor connector A-03 and the ignition switch (ACC) in good condition?

    YES  : No action is necessary and testing is complete.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The windshield wiper should now stop at the predetermined park position.

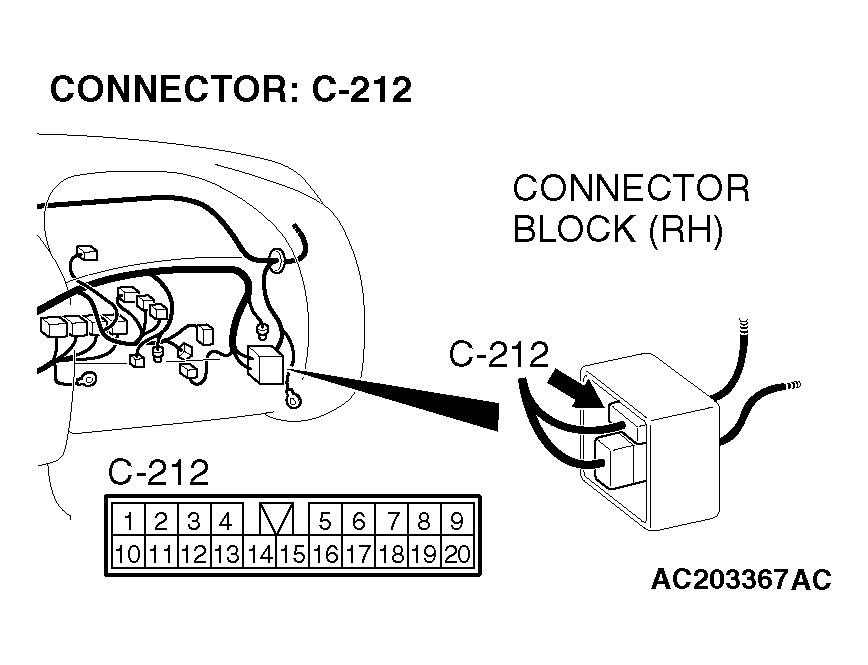

    Fig 9: Identifying Intermediate Connector C-212
    G04541077Courtesy of DAIMLERCHRYSLER CORPORATION

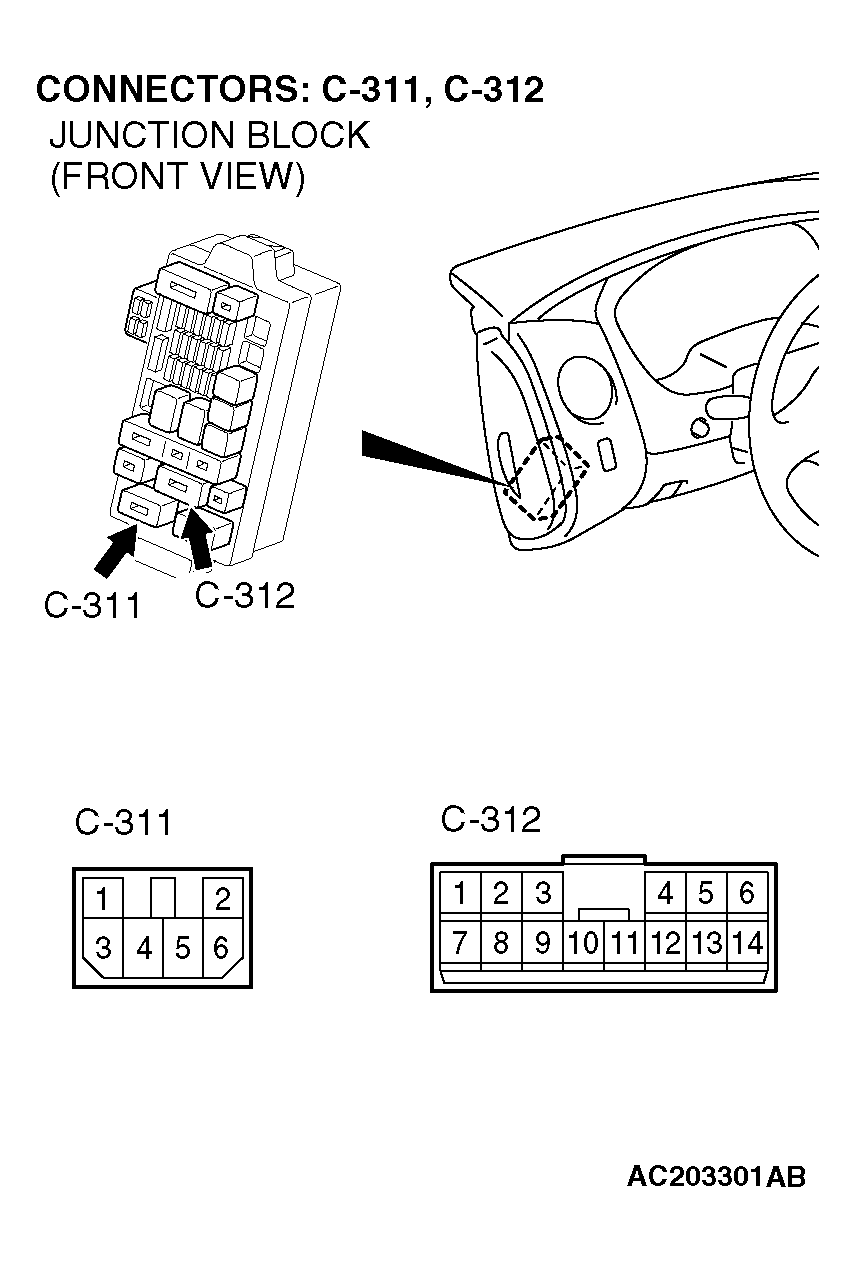

    Fig 10: Identifying Junction Block Connectors C-311 And C-312
    G04541078Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check windshield wiper motor connector A-03 and front-ECU connector A-11X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are windshield wiper motor connector A-03 and front-ECU connector A-11X in good condition?

    YES  : Go to Step 6.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Refer to , HARNESS CONNECTOR INSPECTION . The windshield wiper should now stop at the predetermined park position.

    Fig 11: Identifying Windshield Wiper Motor Connector A-03
    G04541079Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 12: Identifying Windshield Wiper Motor Connector A-03
    G04541080Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 13: Identifying Front-ECU Connector A-11X
    G04541081Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check the wiring harness between windshield wiper motor connector A-03 (terminal 4) and front-ECU connector A-11X (terminal 23).
    Fig 14: Identifying Windshield Wiper Motor Connector A-03
    G04541082Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 15: Identifying Windshield Wiper Motor Connector A-03
    G04541083Courtesy of DAIMLERCHRYSLER CORPORATION

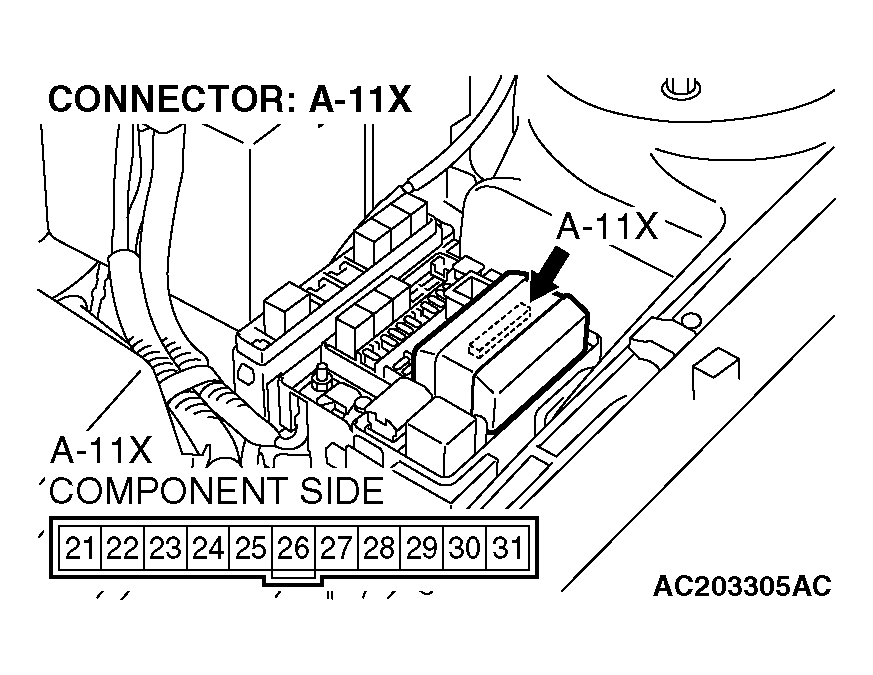

    Fig 16: Identifying Front-ECU Connector A-11X
    G04541084Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check intermediate connector C-05 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-05 is damaged, repair or replace the damaged component(s) as described in , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between windshield wiper motor connector A-03 (terminal 4) and front-ECU connector A-11X (terminal 23) in good condition?

    YES  : Replace the front-ECU. The windshield wiper should stop at the predetermined park position.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The windshield wiper should now stop at the predetermined park position.

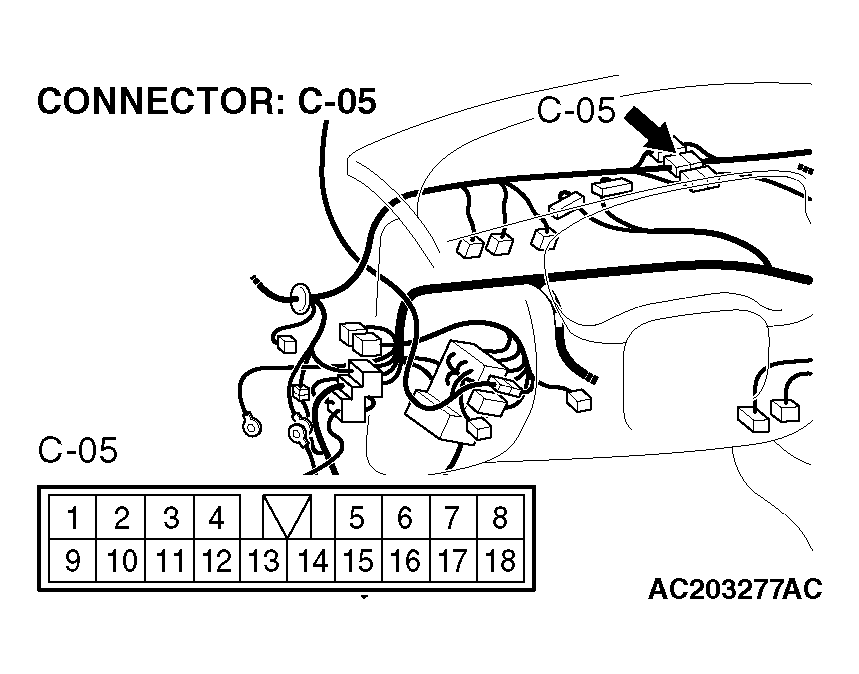

    Fig 17: Identifying Intermediate Connector C-05
    G04541085Courtesy of DAIMLERCHRYSLER CORPORATION
