INSPECTION PROCEDURE D-5: Power Window Relay: Passenger's window do not work normally by operating the power window main switch.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

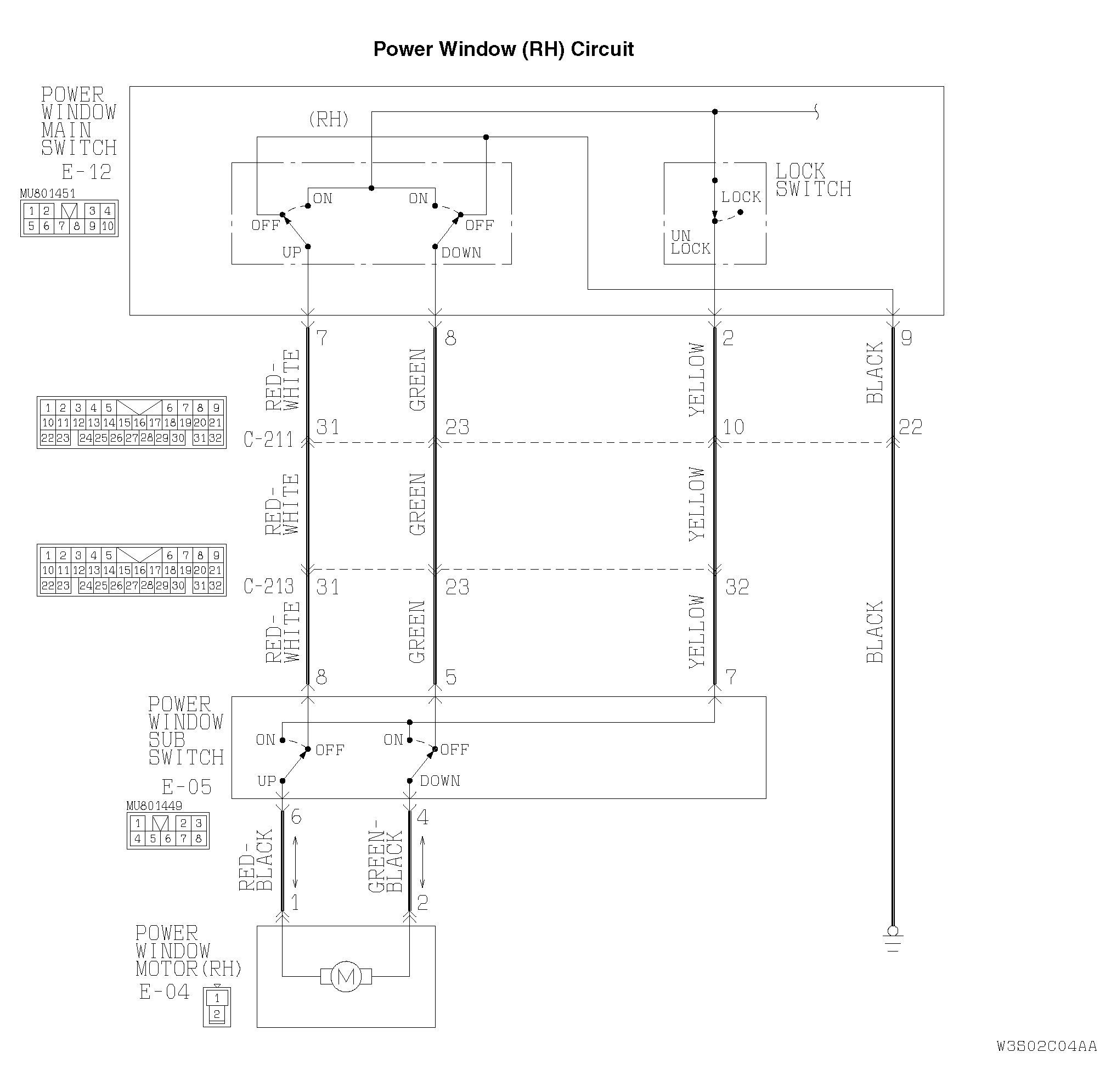

Fig 1: Power Window (RH) Circuit Diagram
G04540989Courtesy of DAIMLERCHRYSLER CORPORATION
