INSPECTION PROCEDURE D-3: Power Window Relay: Only driver's power window does not work by operating power window main switch.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

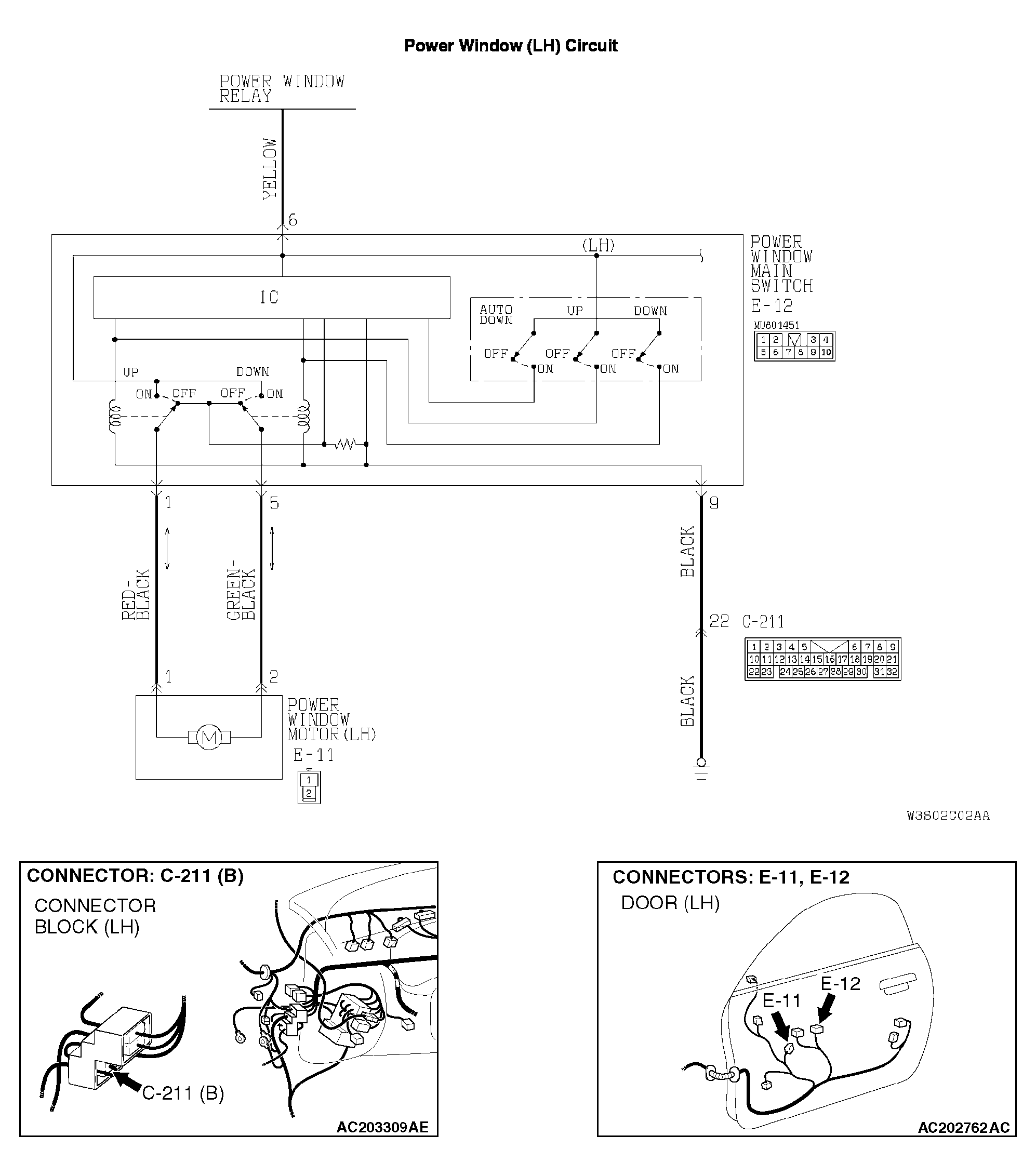

Fig 1: Power Window (LH) Circuit Diagram
G04540955Courtesy of DAIMLERCHRYSLER CORPORATION
