INSPECTION PROCEDURE C-2: Central Door Locking System: Some doors do not lock or unlock.: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

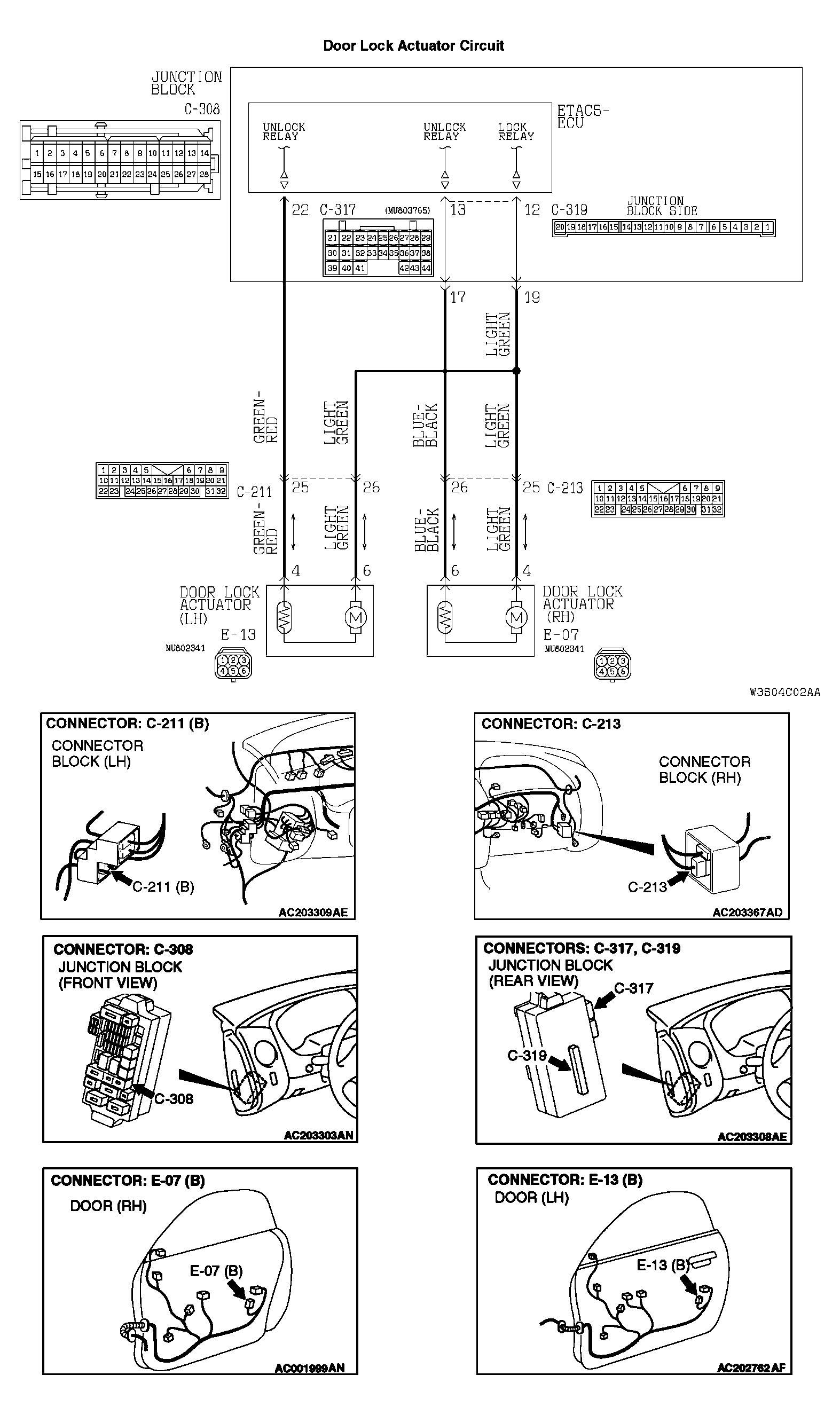

Fig 1: Door Lock Actuator Circuit Diagram
G04540898Courtesy of DAIMLERCHRYSLER CORPORATION
