DTC 13: Front-ECU fault: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

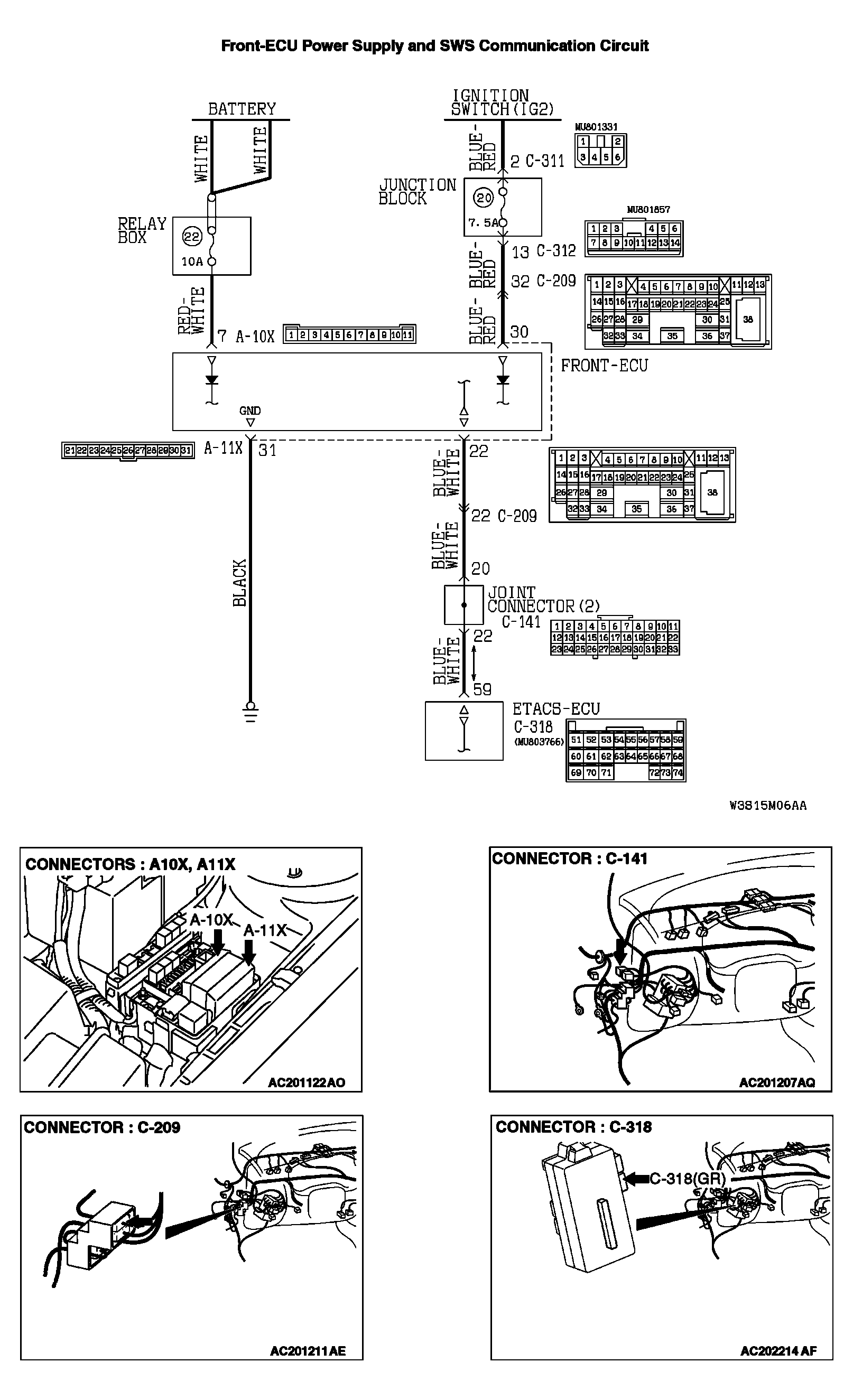

Fig 1: Front-ECU Power Supply And SWS Communication Circuit Diagram
G04540832Courtesy of DAIMLERCHRYSLER CORPORATION
