Removal & Installation (Sebring Coupe & Stratus Coupe)

WARNING: This page is about a different car, the 2002 Dodge Stratus, 2002 Dodge Neon, 2002 Chrysler Sebring, 2002 Chrysler PT Cruiser, and 2002 Chrysler Neon. However, it is still accessible from the selected car via links, so may be relevant.

Remove air cleaner and intake hose assembly. See Fig 1 . Disconnect battery cable. Remove battery and tray. Remove instrument panel undercover (lower panel). See Fig 2 . Remove center console. See Fig 3 .
Disconnect crossover cable from gearshift lever assembly. Disconnect gearshift cable from gearshift lever assembly. Disconnect gearshift cables from transaxle.
Raise and support vehicle. Unbolt gearshift cable mounting plate at bulkhead. See Fig 4 . Remove cable from vehicle. To install gearshift cables, reverse removal procedure. Check adjustment of crossover cable. See SHIFT CROSSOVER CABLE under ADJUSTMENTS.

Fig 1: Exploded View Of Air Cleaner Assembly (Sebring Coupe & Stratus Coupe)

Courtesy of DAIMLERCHRYSLER CORPORATION

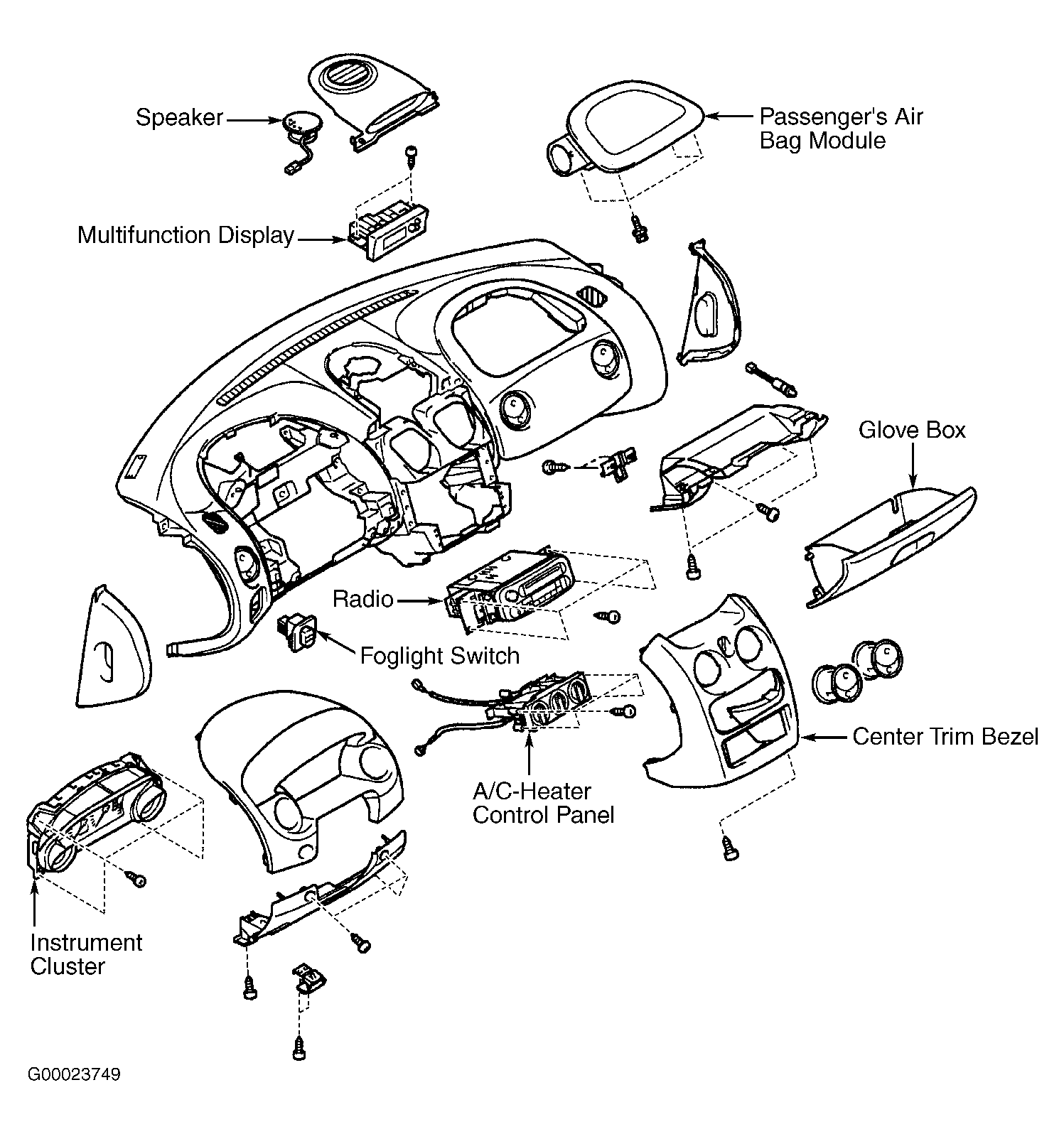

Fig 2: Exploded View Of Instrument Panel (Sebring Coupe & Stratus Coupe)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Exploded View Of Center Console (Sebring Coupe & Stratus Coupe)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Exploded View Of Gearshift Cables (Sebring Coupe & Stratus Coupe)

Courtesy of DAIMLERCHRYSLER CORPORATION
