Horn Relay, Theft-Alarm Horn Relay Continuity Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

TESTER CONNECTION SPECIFIED CONDITION CHART

BATTERY VOLTAGE	TESTER CONNECTION	SPECIFIED CONDITION
Not applied	1 - 4	Open circuit
Connect terminal 2 to the positive battery terminal Connect terminal 3 to the negative battery terminal	1 - 4	Less than 2 ohms

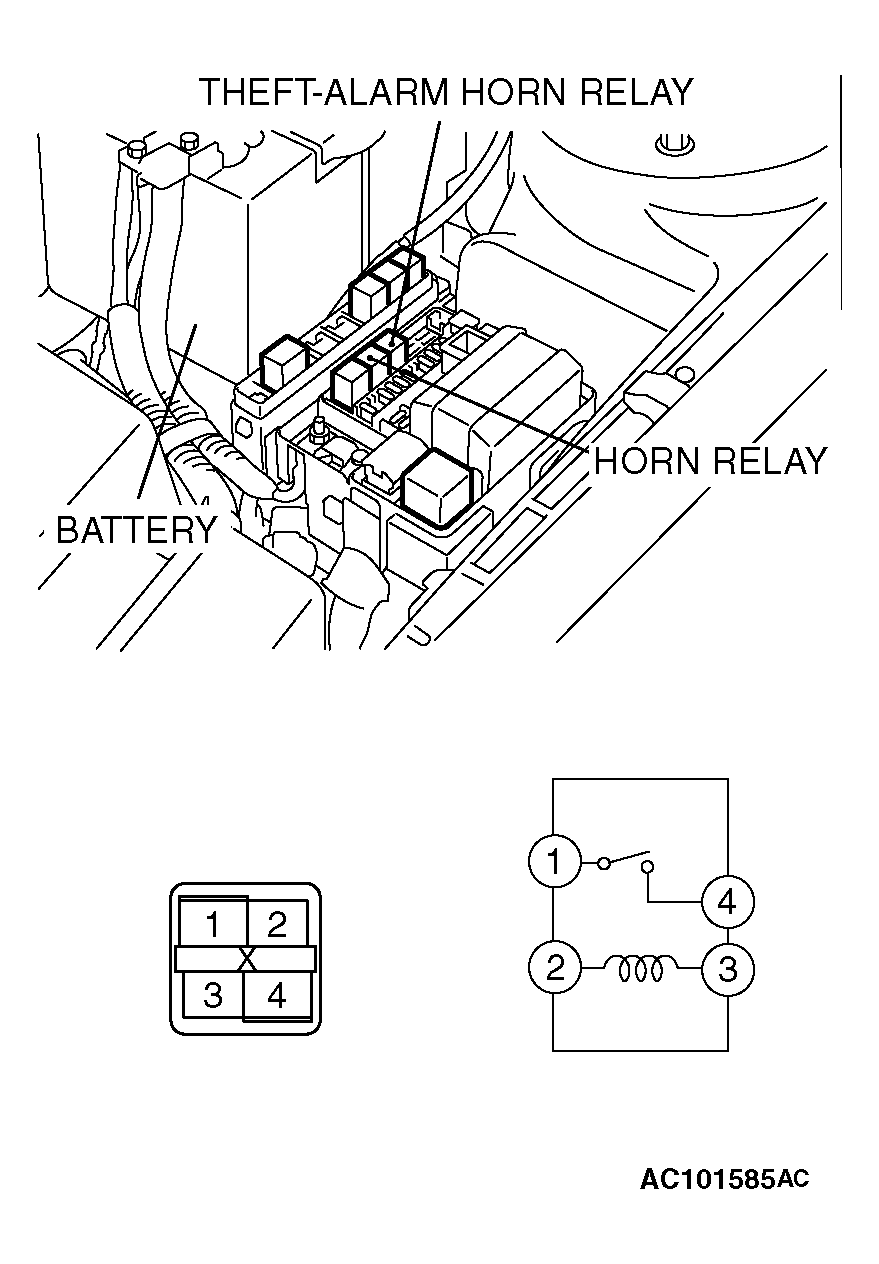

Fig 1: Identifying Horn Relay, Battery And Theft Alaram Horn Relay

Courtesy of DAIMLERCHRYSLER CORPORATION
