Fuel Supply: General Description

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The fuel tank is located under the floor of the rear seats to provide increased safety and a wider luggage space.
A plastic fuel tank has been adopted to reduce weight, and improve anti-corrosion effectiveness.
A fuel pump module, which unifies fuel pump, fuel filter, reservoir cup and fuel level sensor, has been adopted to lighten weight and improve serviceability.

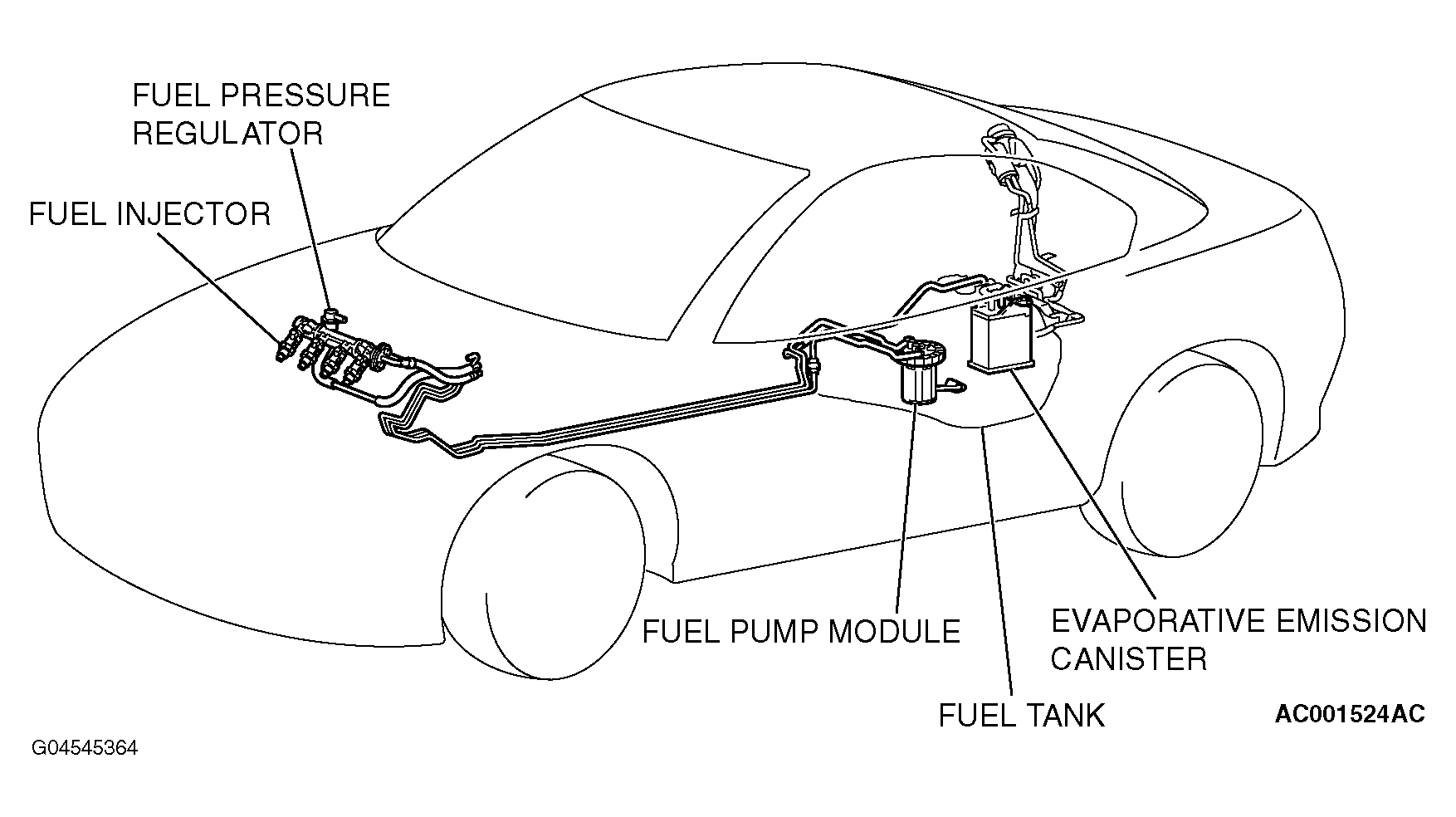

Fig 1: Identifying Fuel Supply Components (2.4L Engine)

Courtesy of DAIMLERCHRYSLER CORPORATION

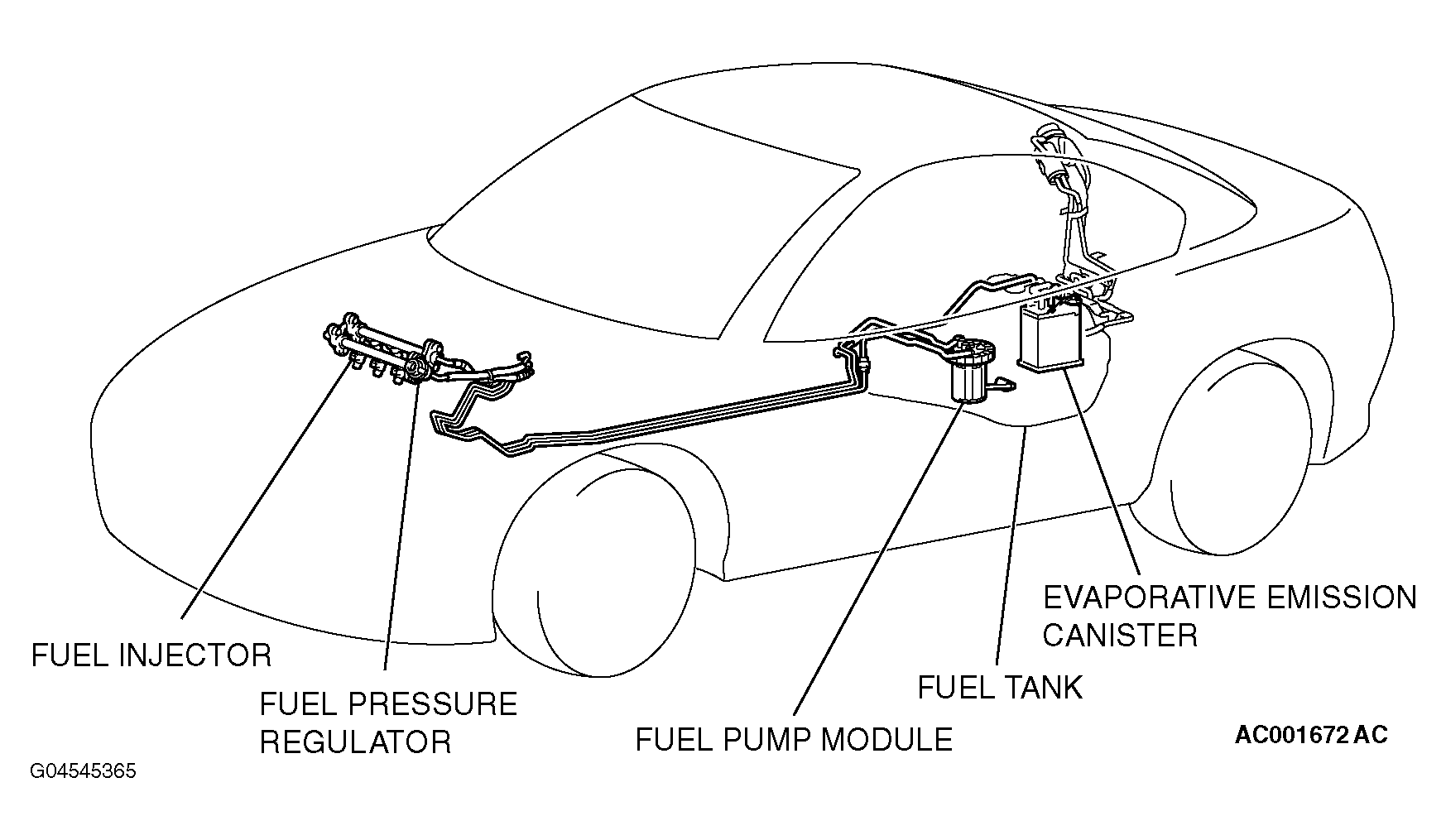

Fig 2: Identifying Fuel Supply Components (3.0L Engine)

Courtesy of DAIMLERCHRYSLER CORPORATION
