>> A << Cap Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Install the packing to the fuel tank, and then install the fuel pump module to the fuel tank. Installing the packing to the fuel pump module will damage the packing lip when installing the fuel pump module to the fuel tank, and fuel leakage will occur.
- Check that the fuel tank is not damaged or deformed, and then securely install the packing to the fuel tank.NOTE: If the packing is damaged or deformed, replace with new packing.CAUTION:
- Do not tilt the fuel pump module when installing.
- The packing should not be folded over as shown by "A" in the illustration.
- Apply soap water to the inside of the packing, and then install the fuel pump module.
Courtesy of DAIMLERCHRYSLER CORPORATION

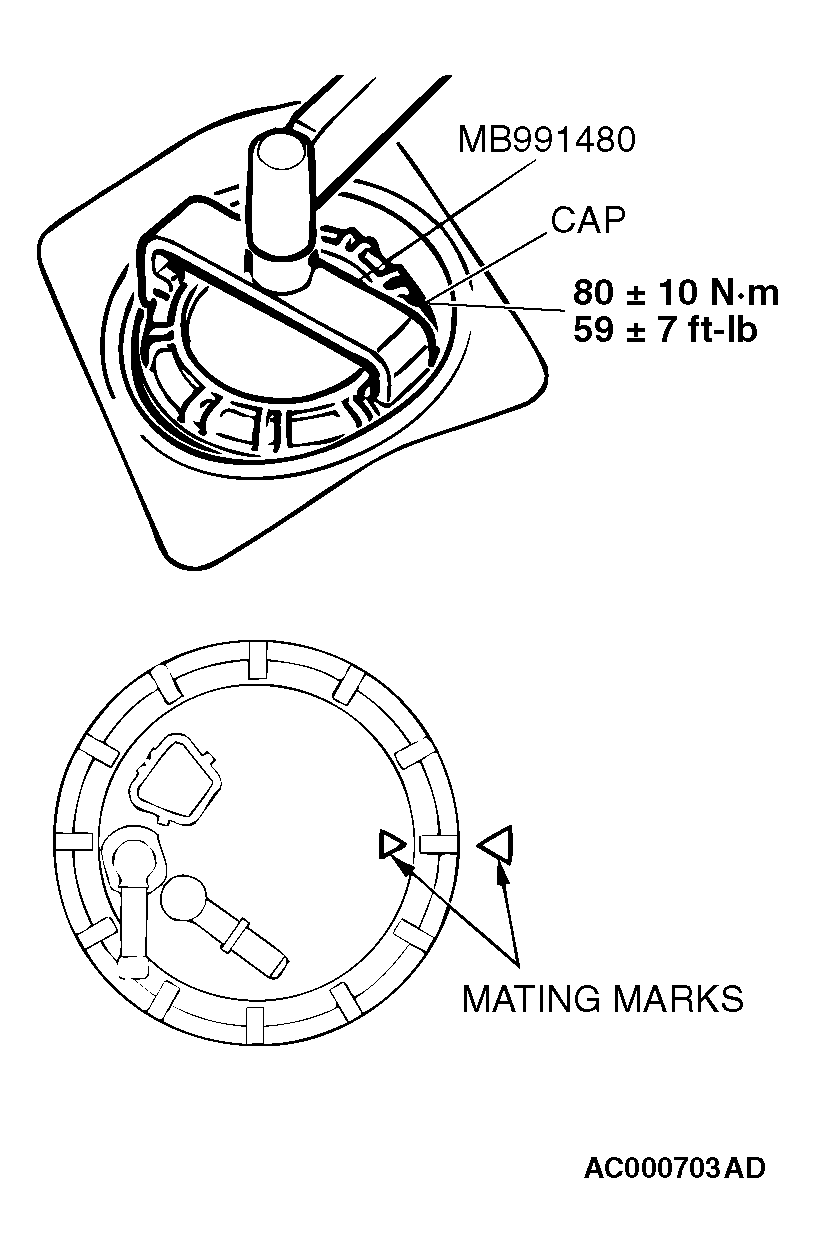

CAUTION: When tightening, be careful not to let the fuel pump module turn together with the cap. If the mating marks are misaligned, the float may measure a remaining amount of fuel in correctly, causing the low fuel warning light to malfunction. - Use special tool MB991480 to align the mating marks on the fuel tank and fuel pump module, and tighten the cap to the specified torque.
Tightening torque: 80 +/- 10 N.m (59 +/- 7 ft-lb)
