< 3.0L Engine >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug and connect to the spark plug cable.
  2. Ground the spark plug outer electrode (body), and crank the engine.

    Check that there is an electrical discharge between the electrodes at this time.

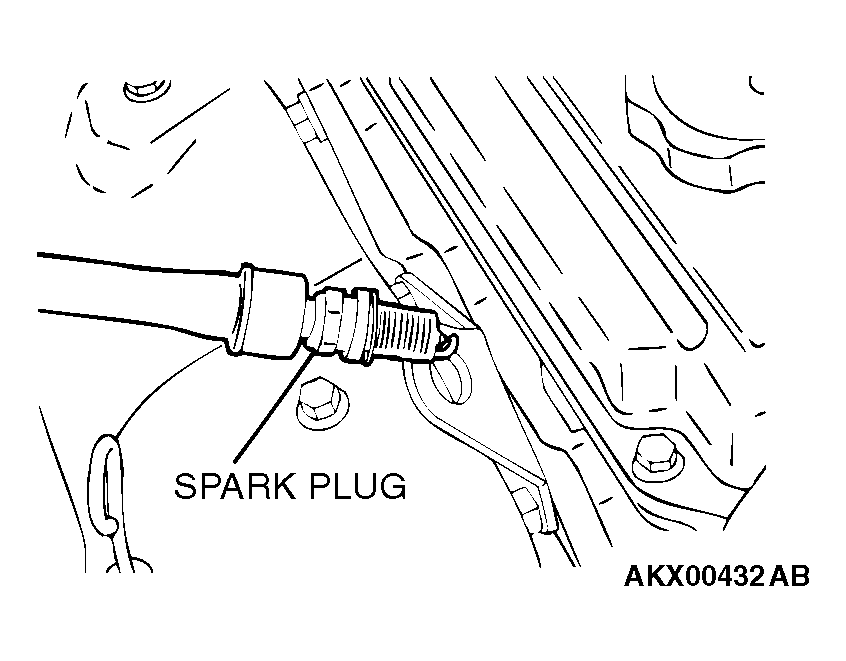

    Fig 1: Grounding Spark Plug Outer Electrode (Body)
    G04537454Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 2: Identifying Defective Insulation Of Spark Plug
    G04537455Courtesy of DAIMLERCHRYSLER CORPORATION
