< 3.0L Engine >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Wear rubber gloves while performing this test.
  1. Disconnect, one at a time, each of the spark plug cables while the engine is idling to check whether the engine's running performance changes or not.
  2. If the engine performance does not change, check the resistance of the spark plug cable, and check the spark plug itself.

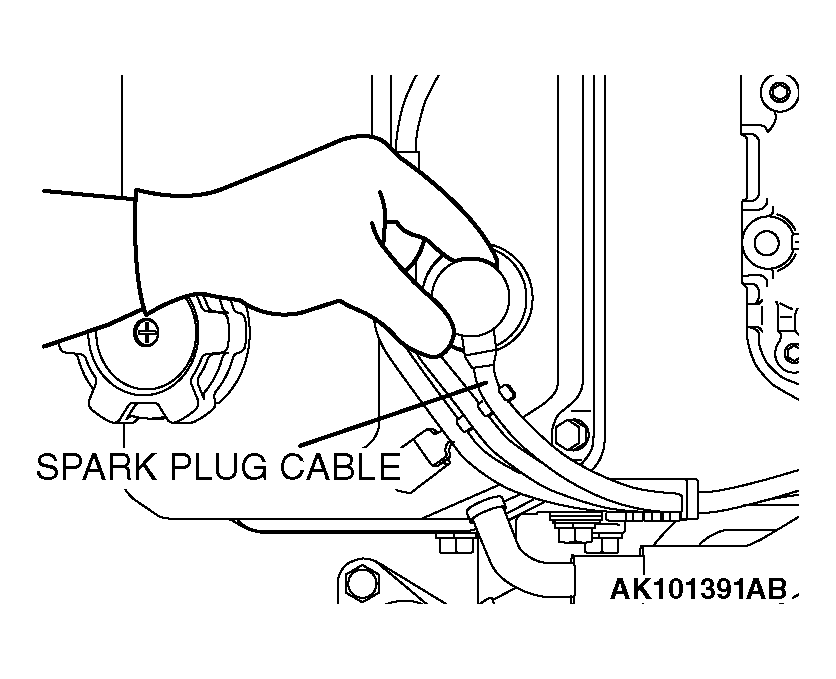

    Fig 1: Disconnecting Spark Plug Cables
    G04537448Courtesy of DAIMLERCHRYSLER CORPORATION
