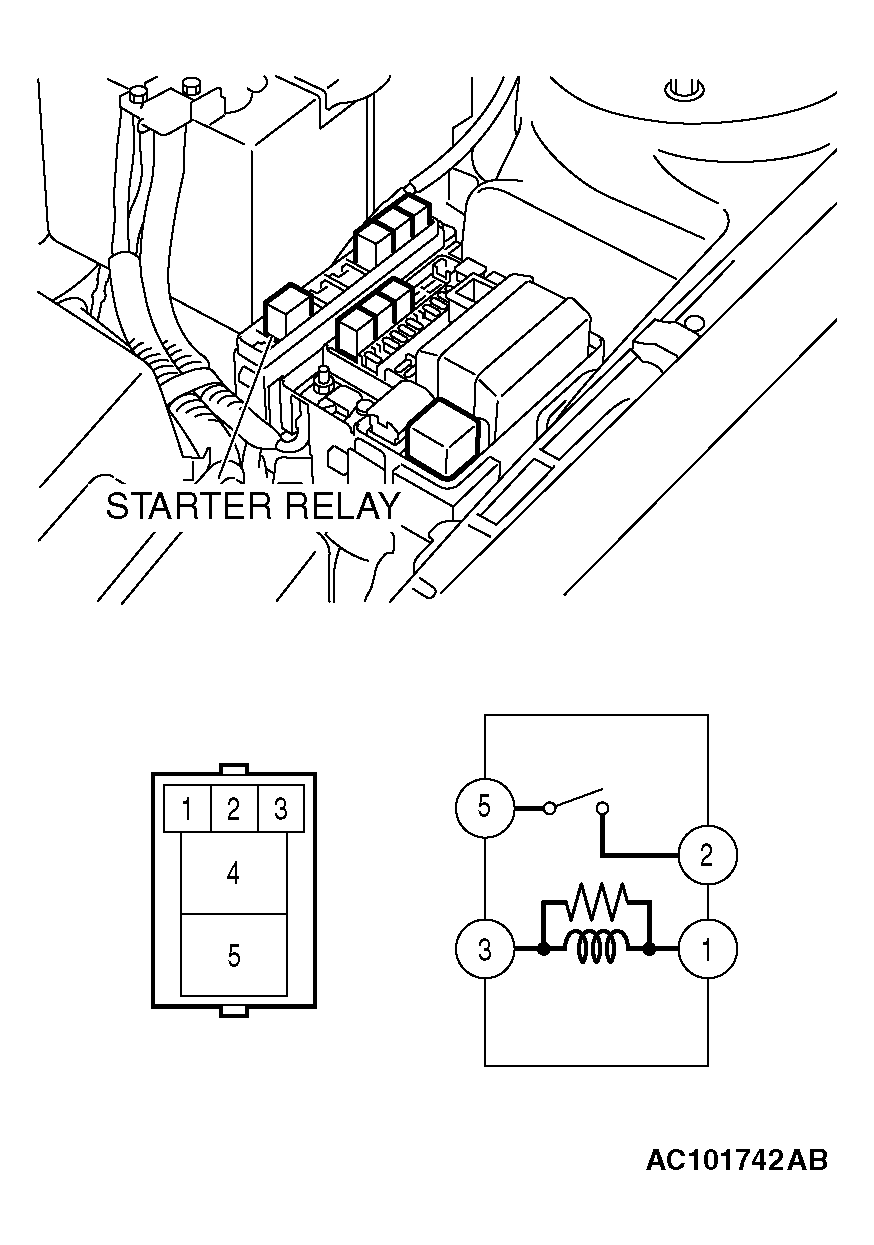

Starter Relay Check < M/T >
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
BATTERY VOLTAGE CHART
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
2 - 5 |
Open circuit |
1 - Battery (-) terminal
3 - Battery (+) terminal |
2 - 5 |
Less than 2 ohms |
Courtesy of DAIMLERCHRYSLER CORPORATION
