>> B << Water Pump Assembly Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

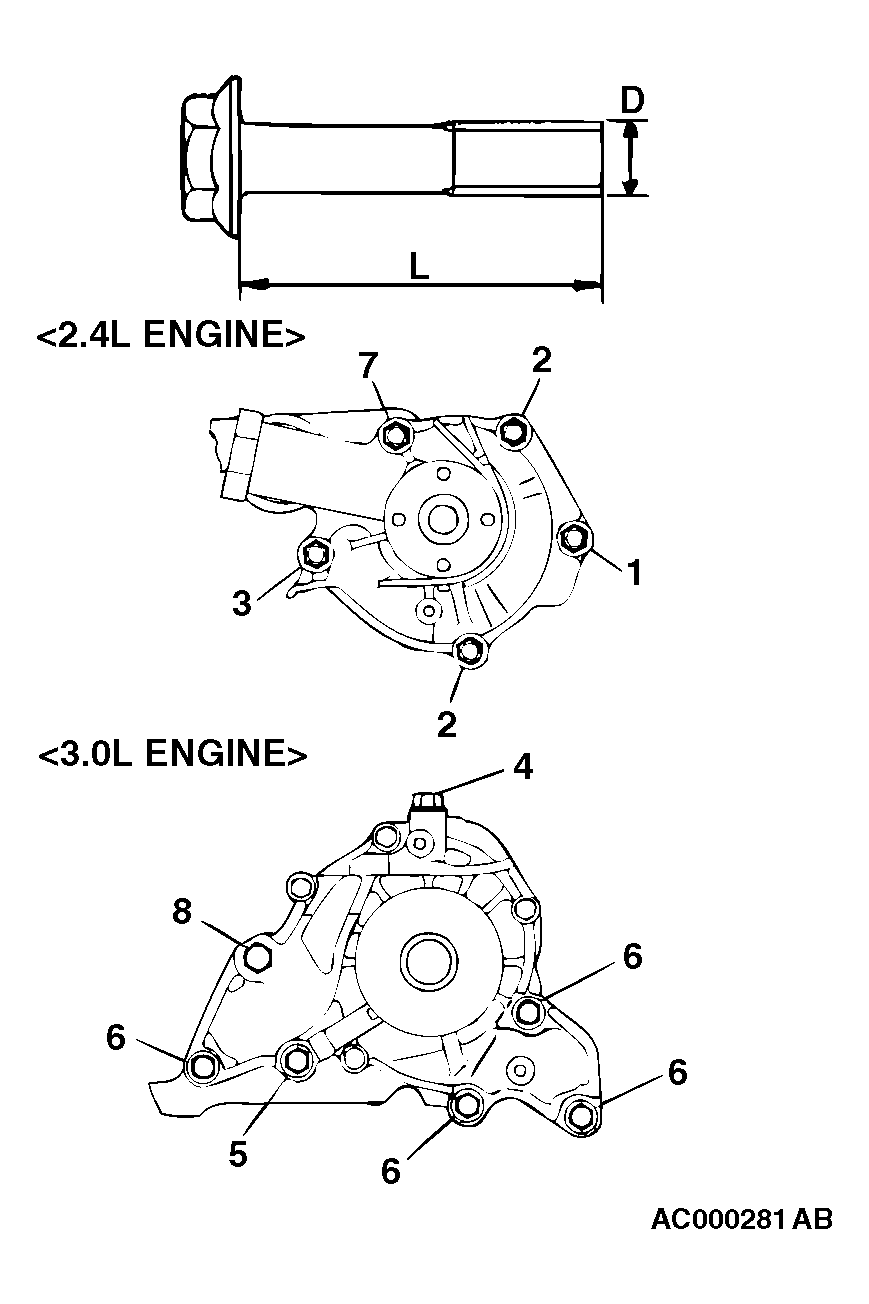

WATER PUMP ASSEMBLY CHART
| NO. |
HARDNESS CATEGORY (HEAD MARK) |
BOLT DIAMETER (D) x LENGTH (L) mm (in) |
| 1 |
4T |
8 x 14 (0.3 x 0.6) |
| 2 |
8 x 22 (0.3 x 0.9) |
| 3 |
8 x 25 (0.3 x 1.0) |
| 4 |
7T |
8 x 14 (0.3 x 0.6) |
| 5 |
8 x 20 (0.3 x 0.8) |
| 6 |
8 x 25 (0.3 x 1.0) |
| 7 |
8 x 60 (0.3 x 2.4) |
| 8 |
10 x 38 (0.4 x 1.5) |
Courtesy of DAIMLERCHRYSLER CORPORATION
