< 3.0L Engine >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

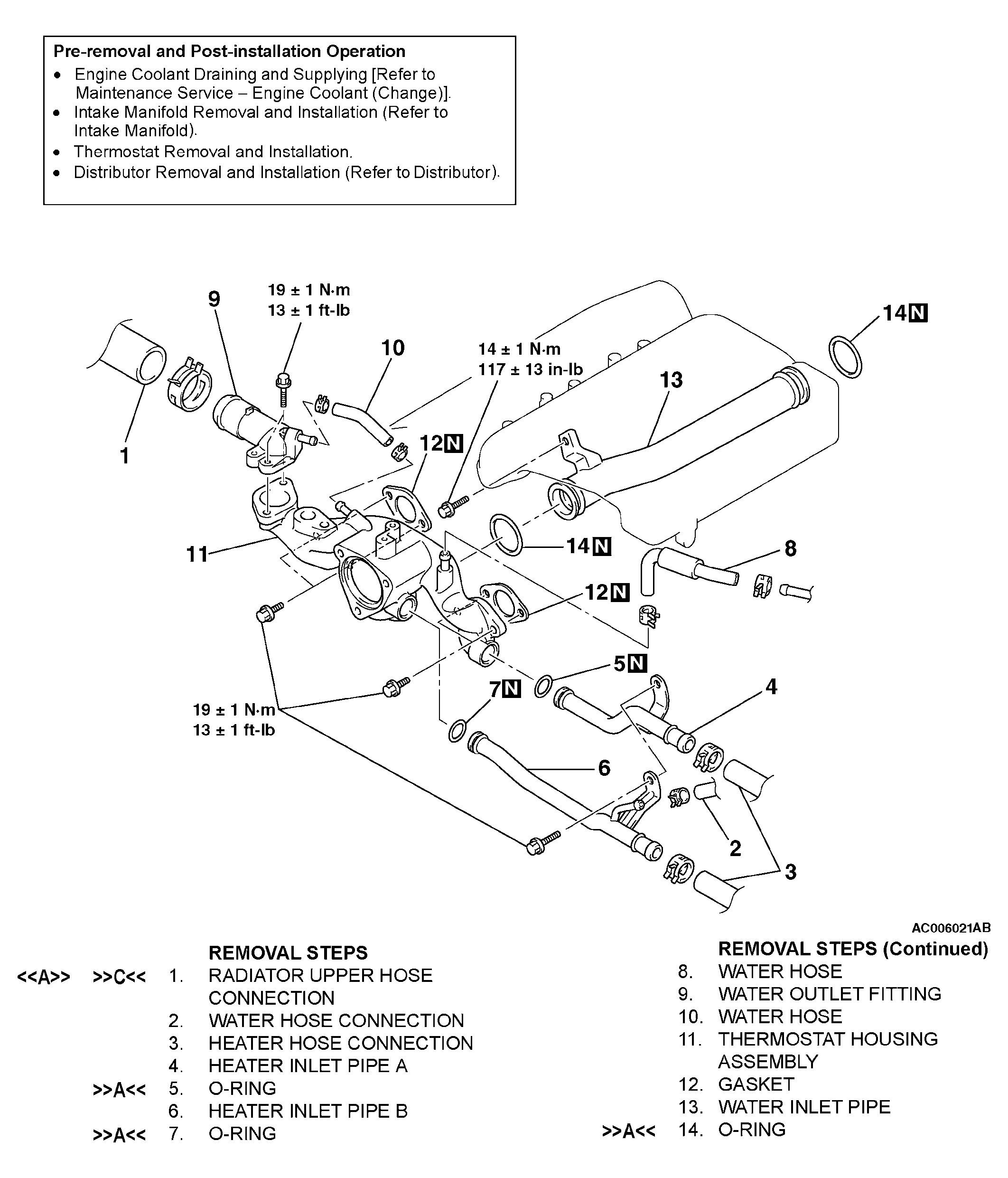

Fig 1: Removing/Installing Water Hose And Water Pipe (3.0L Engine)
G04537378Courtesy of DAIMLERCHRYSLER CORPORATION
