Clutch Master Cylinder

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not disassemble the piston assembly.

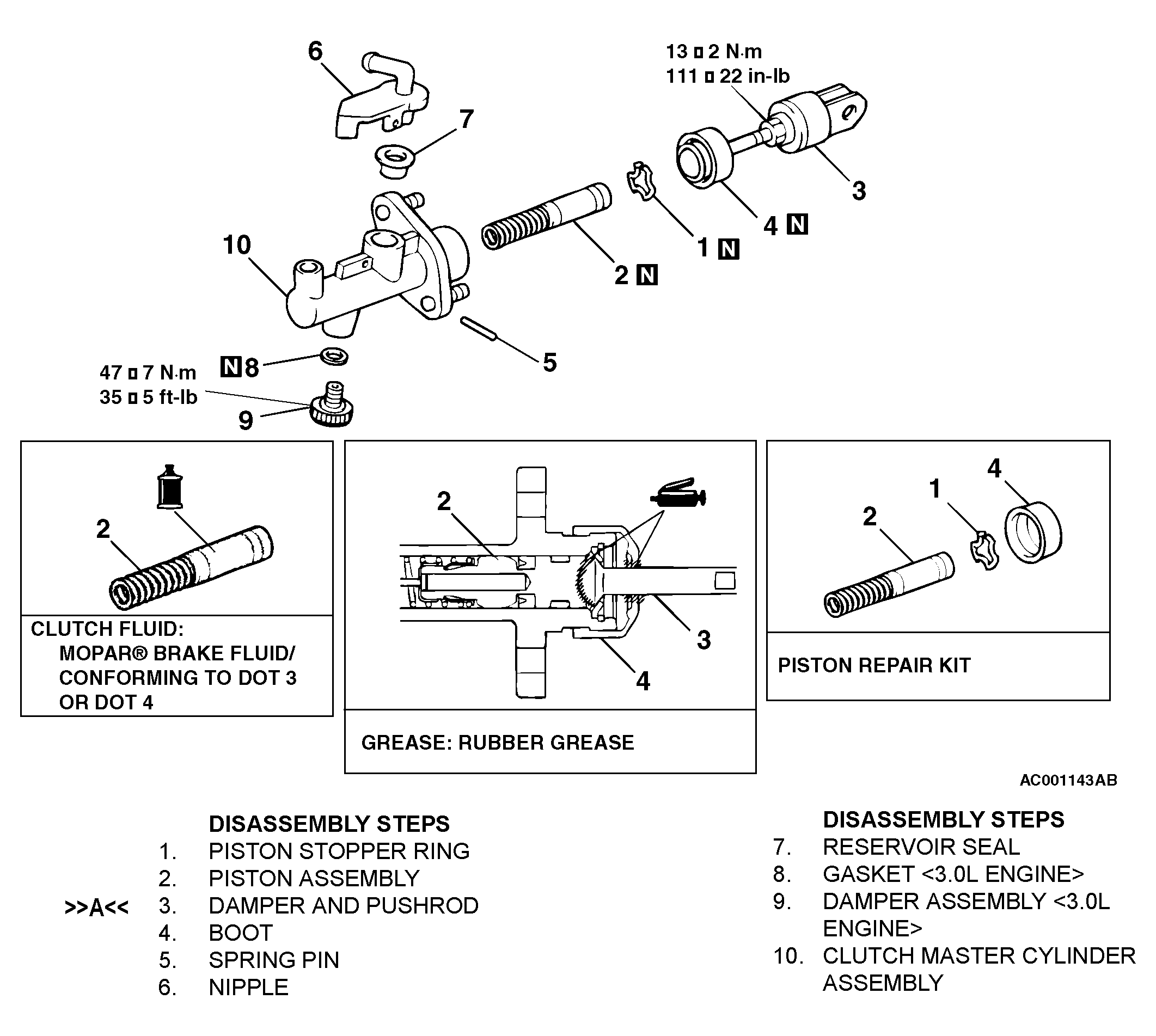

Fig 1: Exploded View Of Clutch Master Cylinder And Torque Specification
G04537314Courtesy of DAIMLERCHRYSLER CORPORATION
