<< B >> Shoe Hold-Down Cup Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Extend the shoe and lining assembly, and remove the shoe hold-down cup.

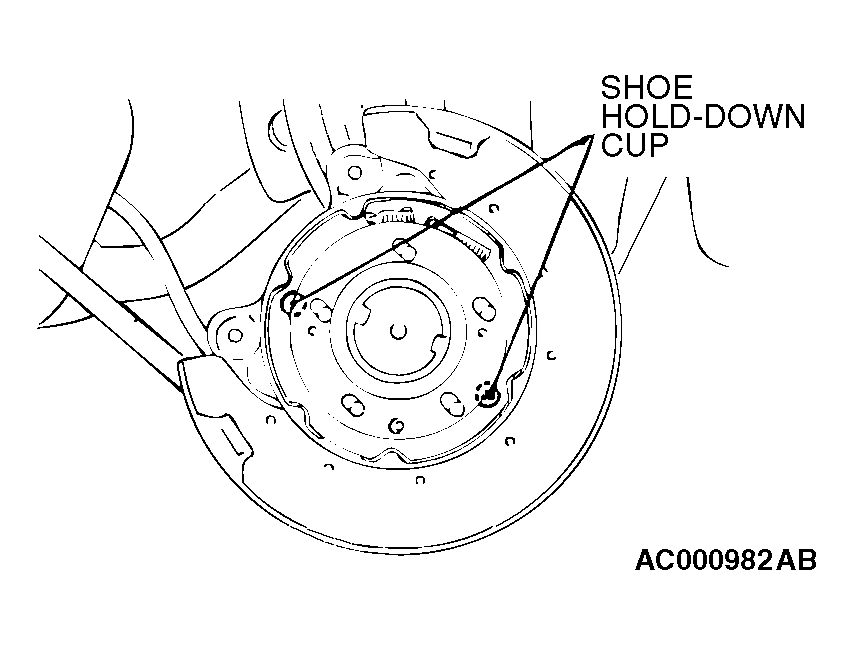

Fig 1: Removing Shoe Hold-Down Cup
G04537296Courtesy of DAIMLERCHRYSLER CORPORATION
