< Drum-In-Disc Brake >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

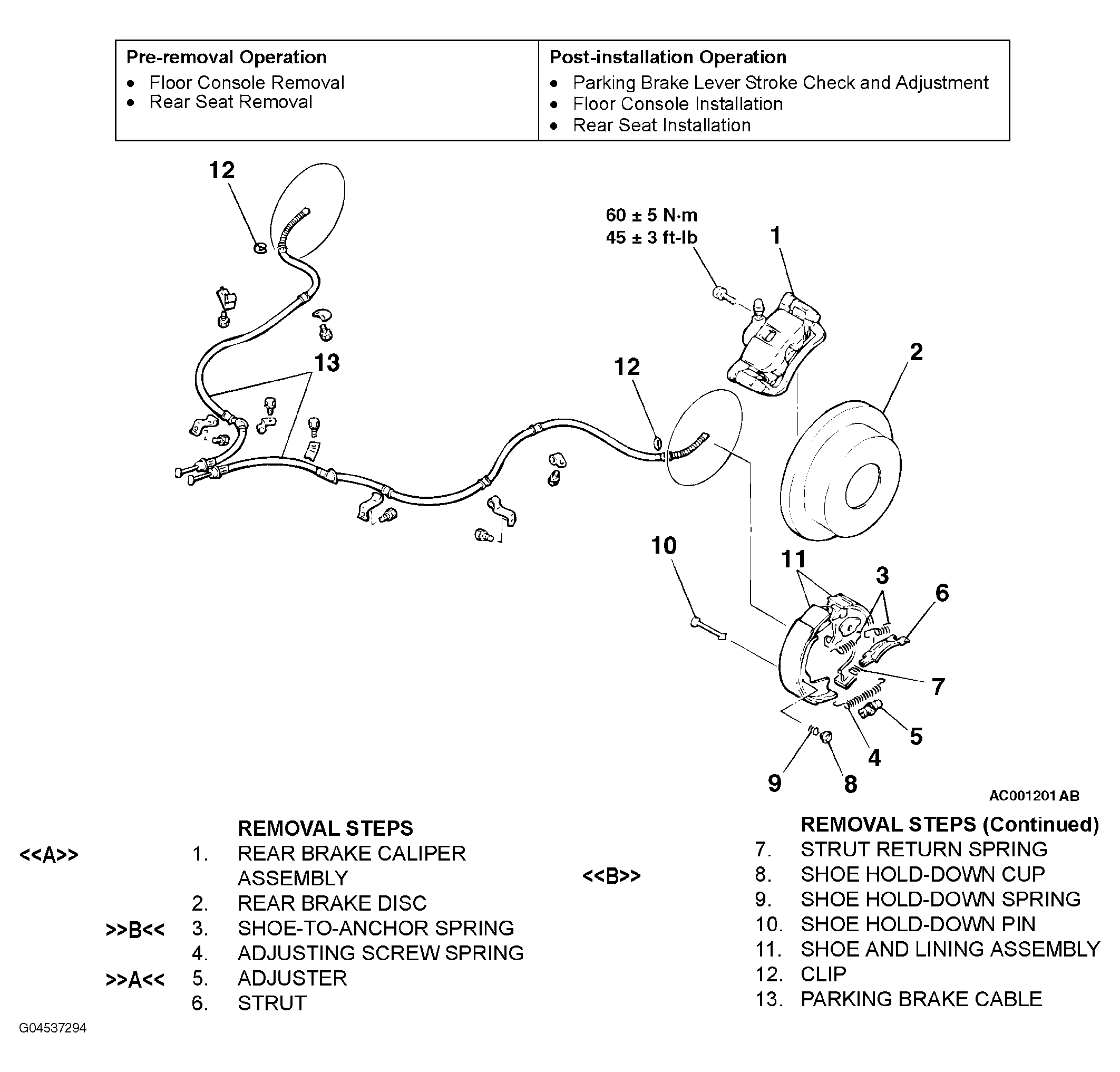

Fig 1: Removing/Installing Parking Brake Cable (Drum-In-Disc Brake)
G04537294Courtesy of DAIMLERCHRYSLER CORPORATION
