Parking Brake Switch Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. (Refer to FLOOR CONSOLE .)
  2. Check for continuity between the parking brake switch terminal and the switch mounting bolt.
    PARKING BRAKE SWITCH CHART

    When parking brake lever is pulled Less than 2 ohm
    When parking brake lever is released Open circuit

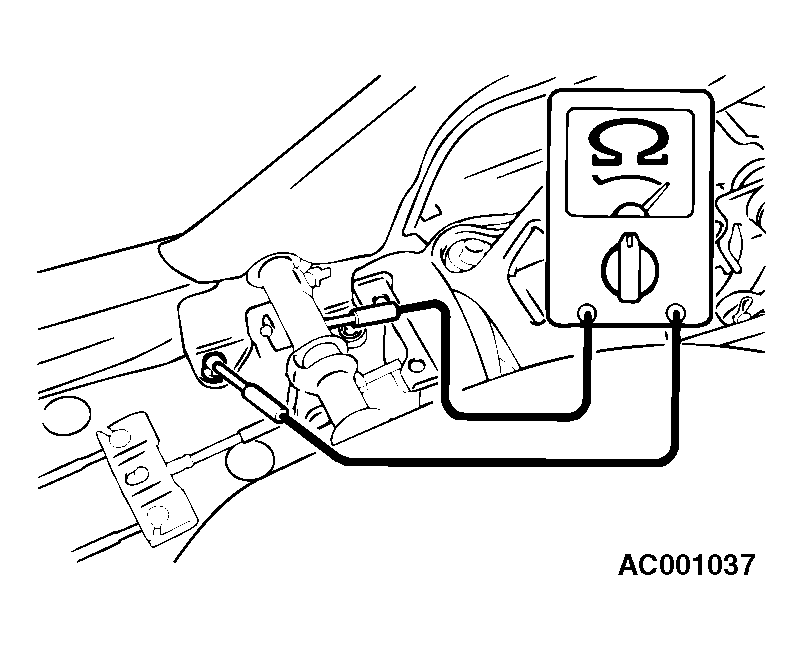

    Fig 1: Checking Continuity Between Parking Brake Switch Terminal And Switch Mounting Bolt
    G04537290Courtesy of DAIMLERCHRYSLER CORPORATION
