Valve Body: Removal

WARNING: This page is about a different car, the 2002 Dodge Stratus, 2002 Chrysler Sebring, and 2002 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Disconnect gearshift cable from manual valve lever. Remove manual valve lever. Raise and support vehicle. Disconnect shift linkage or cable from shift lever on manual shaft assembly. Remove shift lever from manual shaft assembly.
  2. Remove bolts, oil pan, oil filter and "O" ring. Remove valve body/transfer plate-to-transaxle case bolts. Note bolt length and location for reassembly reference.

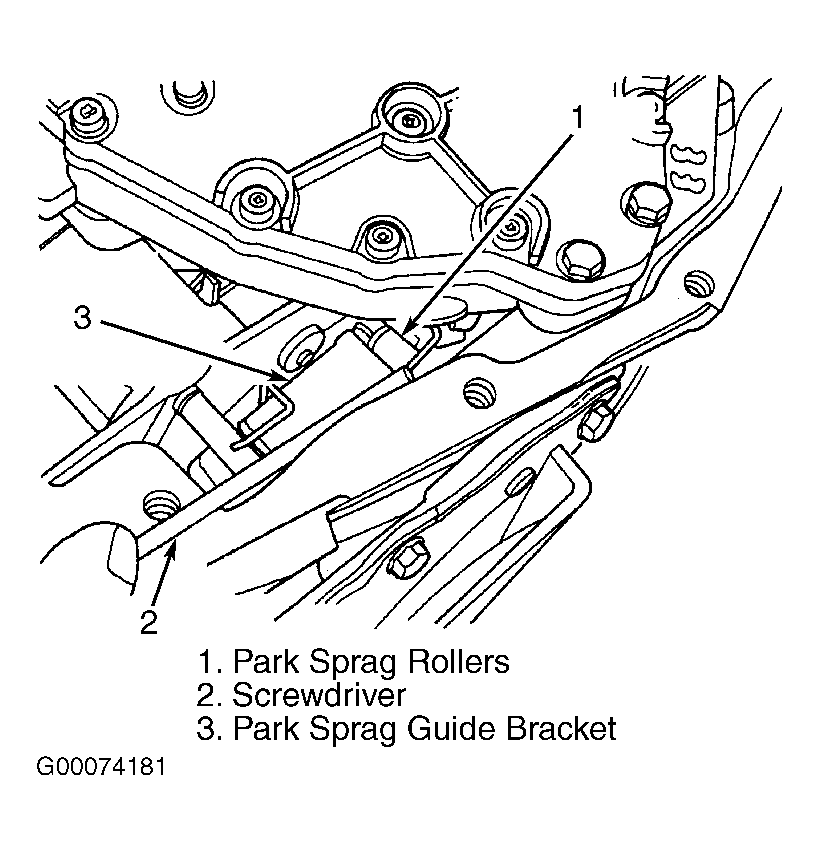

  3. Move roller on park sprag rod from park sprag guide bracket. See Figure . Lift valve body and manual shaft assembly from transaxle case.
