Checking Fluid Levels

WARNING: This page is about a different car, the 2002 Dodge Stratus, 2002 Chrysler Sebring, and 2002 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive vehicle until engine and transaxle are at normal operating temperature. Park vehicle on level surface. Apply parking brake. Turn engine off. Connect scan tool to data link connector. See Fig 1 .
  2. Start engine. Using scan tool, read transmission fluid temperature. Using transmission fluid temperature displayed on scan tool, determine proper fluid level on dipstick. See Fig 2 . Add appropriate type of transmission fluid if necessary. See RECOMMENDED FLUIDS  . DO NOT overfill transaxle. Turn engine off and remove scan tool.

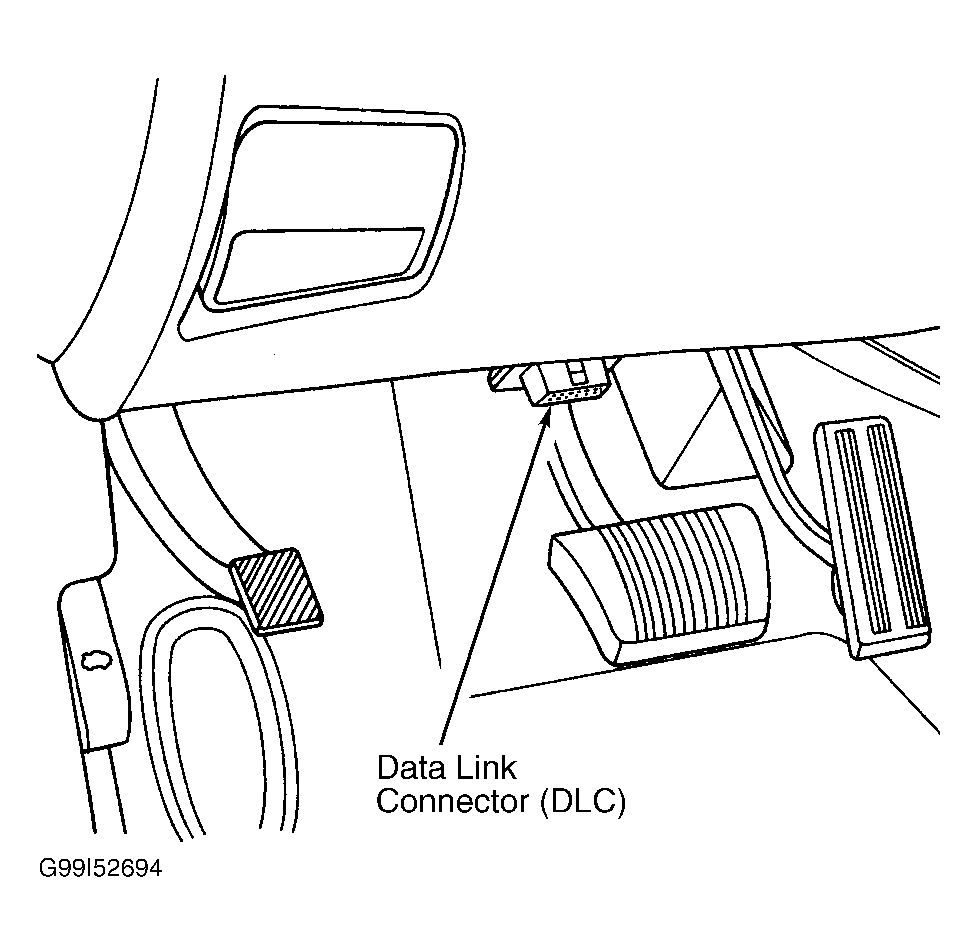

Fig 1: Locating Data Link Connector
G99I52694Courtesy of DAIMLERCHRYSLER CORPORATION

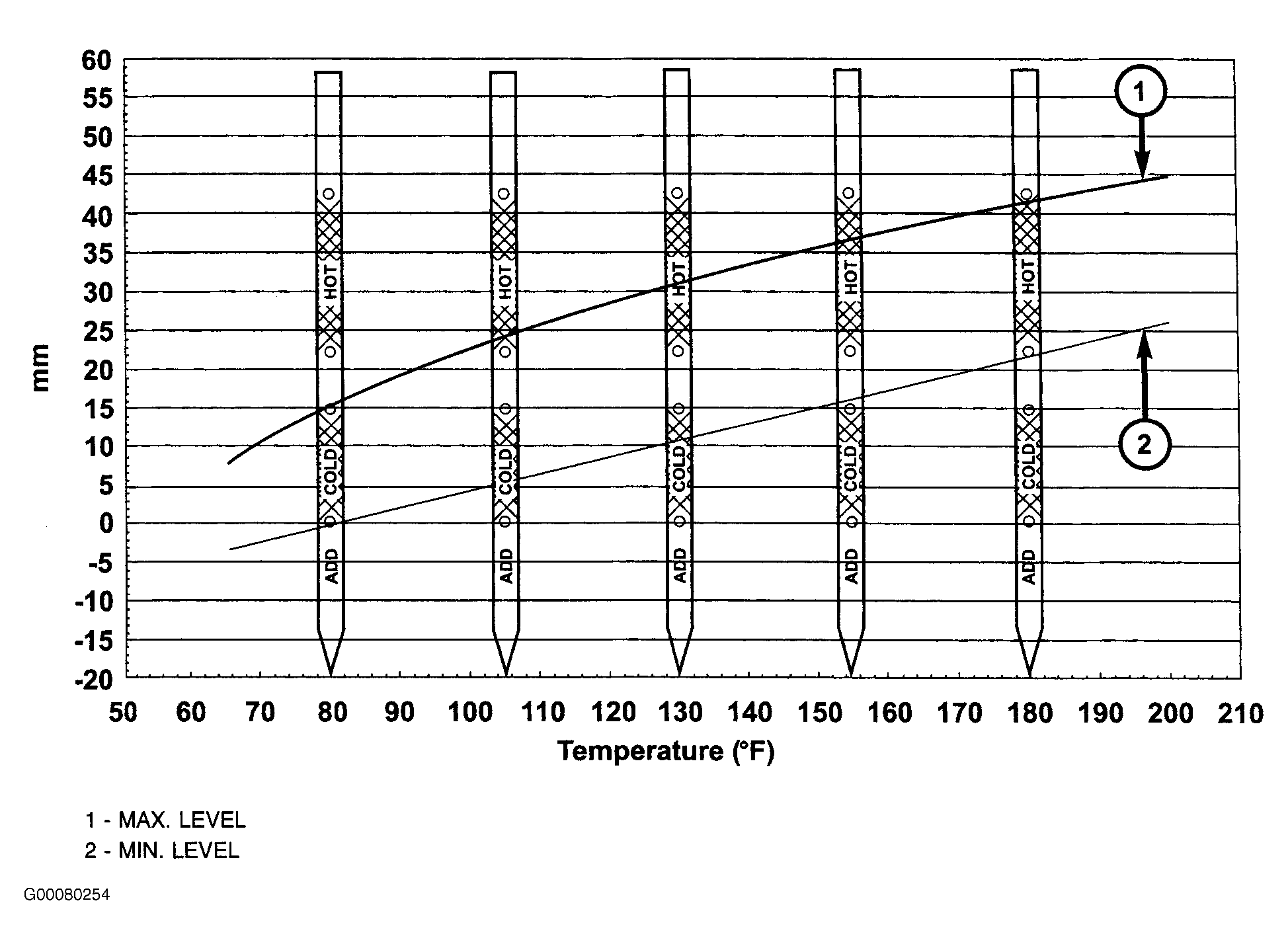

Fig 2: Determining Transmission Fluid Level
G00080254Courtesy of DAIMLERCHRYSLER CORPORATION
