Tachometer Check
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

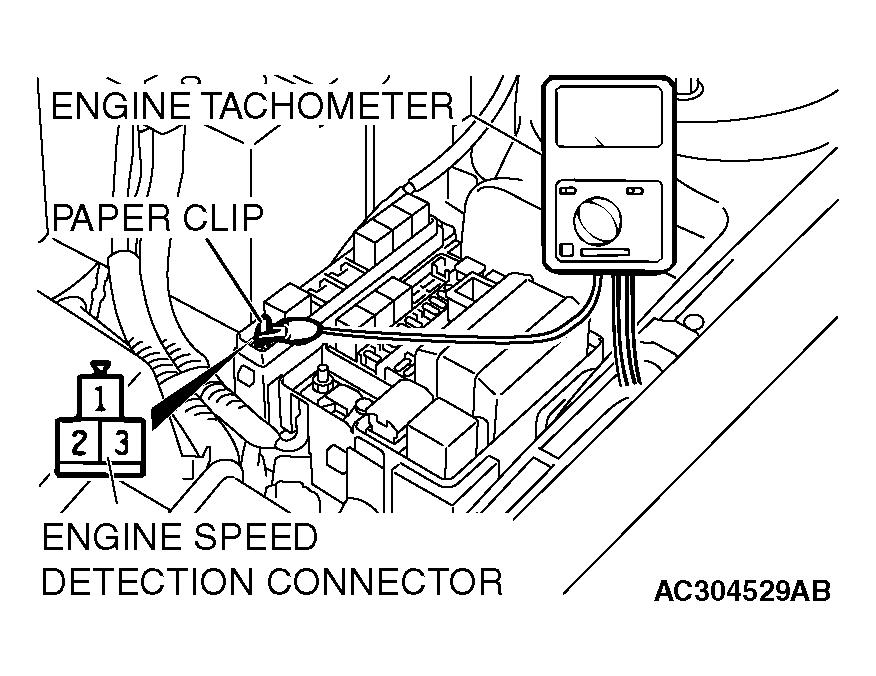

- Attach an external high quality engine tachometer to the engine speed detection connector on the harness side (such as with a paper clip).NOTE: For tachometer check, use an external high quality inductive engine tachometer.
- Compare the readings of the vehicle engine tachometer and the external engine tachometer at every engine speed, and check if the variations are within the standard values.
Standard values:
- 700 r/min: +/-100 r/min
- 3,000 r/min: +/-150 r/min
- 5,000 r/min: +/-250 r/min
- 6,000 r/min: +/-300 r/min
