Hub Bolt Replacement

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB991618: Hub Bolt Remover

Remove the caliper assembly and suspend it with wire so that it does not fall.
Remove the brake disc.
Use the special tools MB990767 and MB991618 to remove the hub bolts.

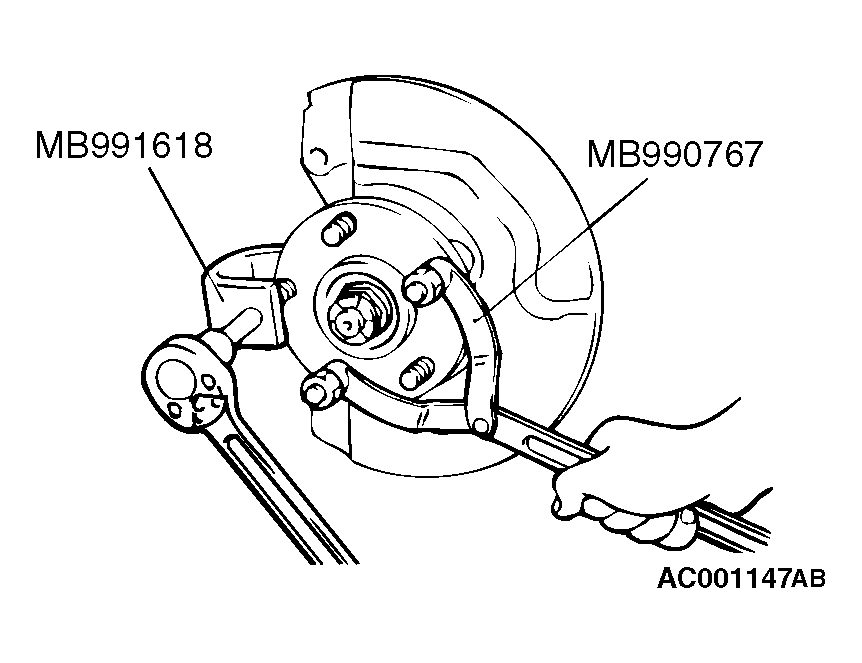

Fig 1: Removing Hub Bolts
Courtesy of DAIMLERCHRYSLER CORPORATION
Install the plain washer to the new hub bolt, and install the bolt with a nut.

Fig 2: Installing Bolt With Nut
Courtesy of DAIMLERCHRYSLER CORPORATION
