>> A << Drive Shaft Nut Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not apply pressure to wheel bearing by the vehicle weight to avoid possible damage when castle nut is loosened.
  1. Direct the flat side of a washer to a drive shaft nut to install
  2. Tighten driveshaft nut fully with special tool MB990767.

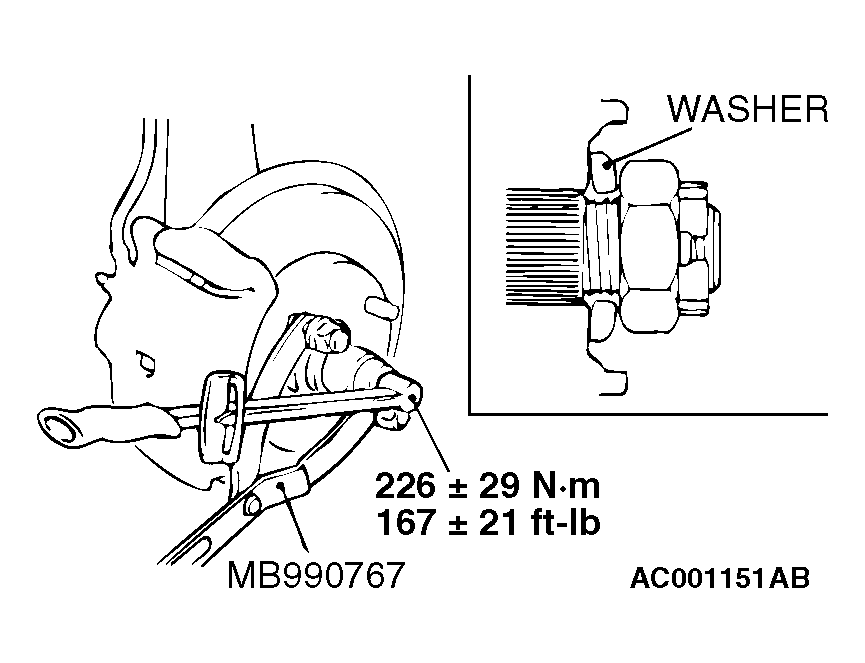

    Fig 1: Tightening Driveshaft Nut Fully
    G04537000Courtesy of DAIMLERCHRYSLER CORPORATION
