Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so as not to damage it by striking against other parts.

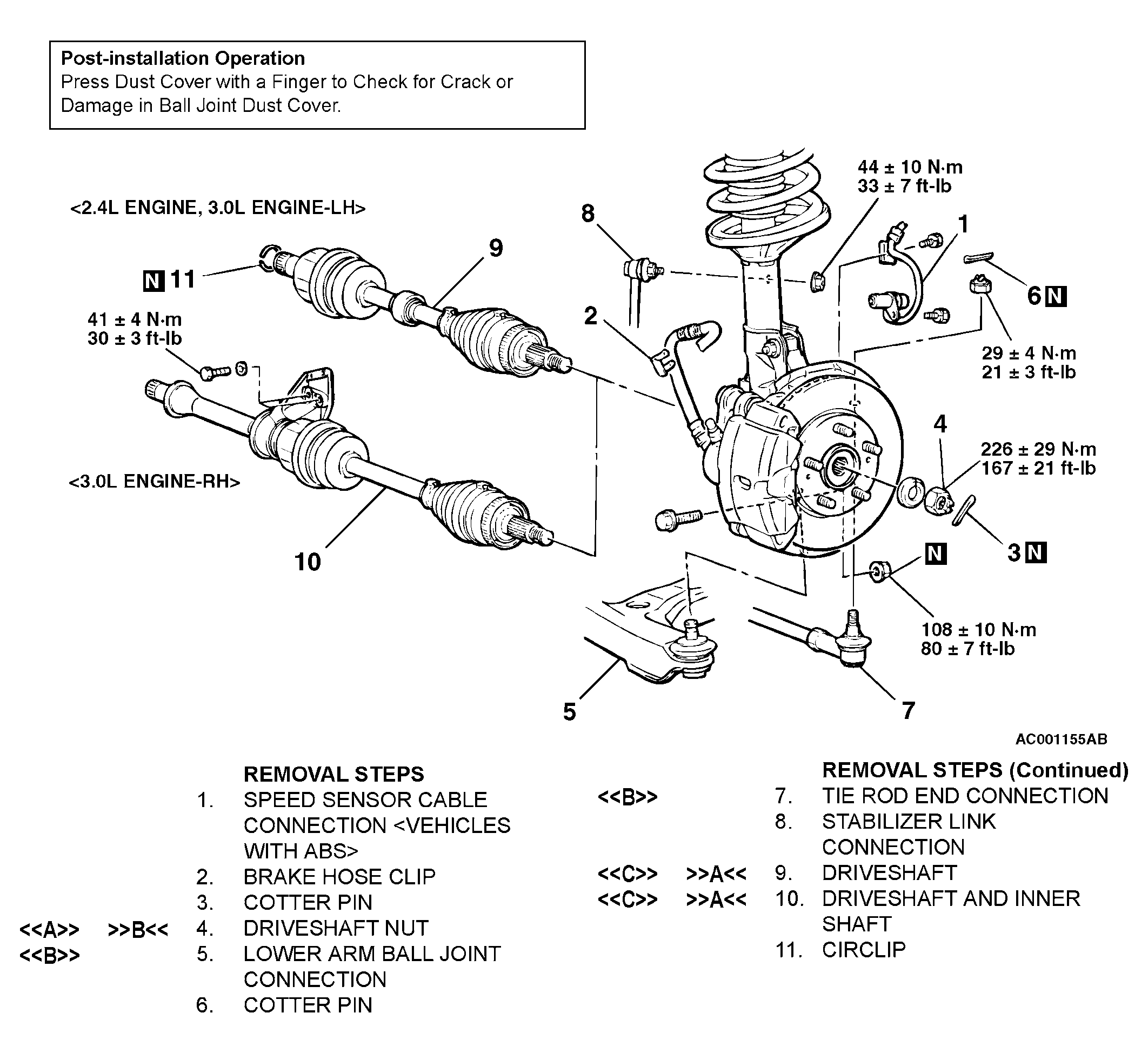

Fig 1: Removing/Installing Drive Shaft Assembly

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990244: Puller Bar
MB990767: Front Hub and Flange Yoke Holder
MB991897: Ball Joint Remover
MB990998: Front Hub Remover and Installer
MB991345: Puller Body
