Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Never disassemble the BJ assembly except when replacing the BJ boot.

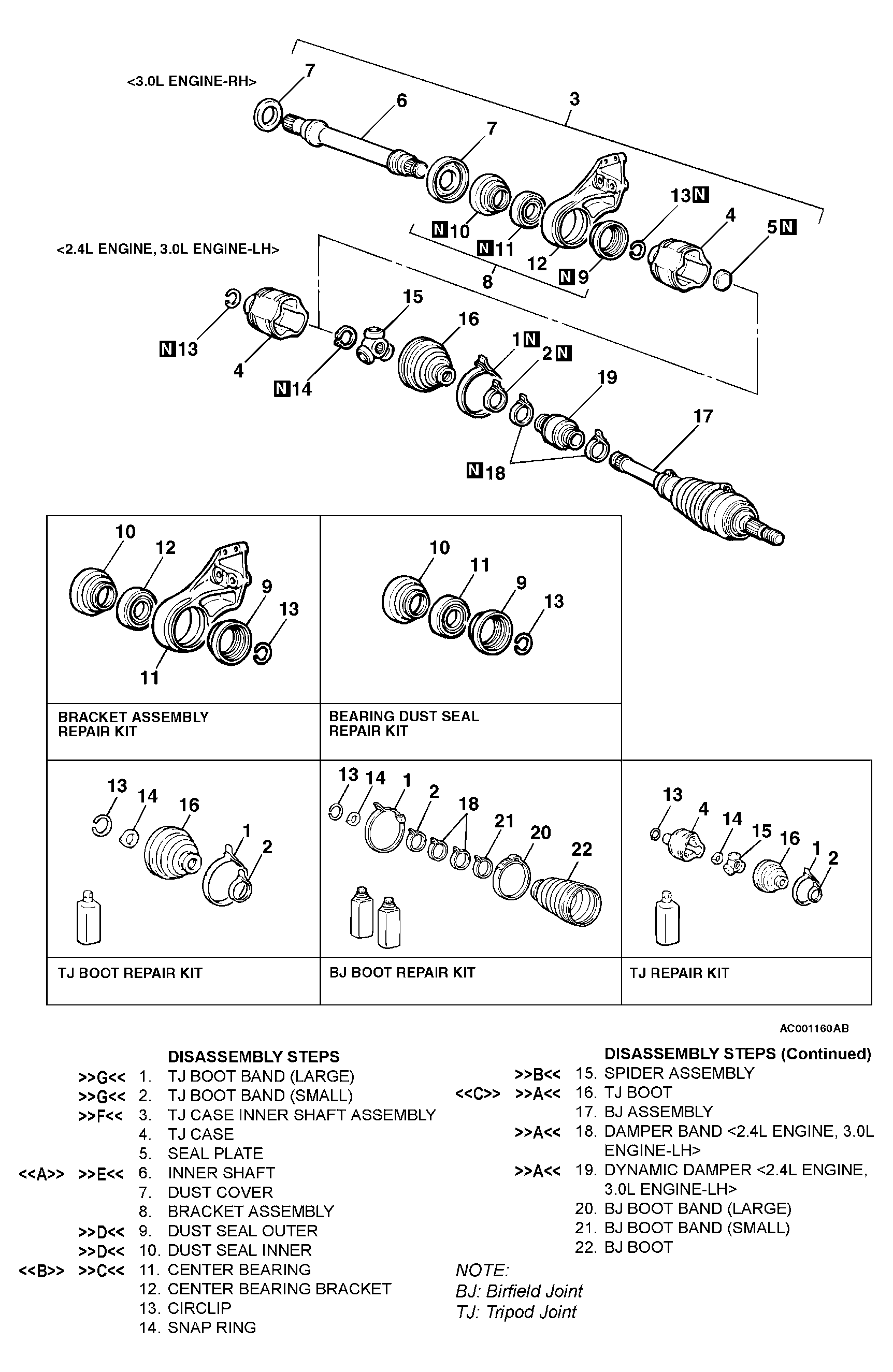

Fig 1: Disassembly/Assembly Drive Shaft Assembly

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990890: Rear Suspension Bush Base
MB990930: Installation Adapter
MB990932: Installation Adapter
MB990934: Installation Adapter
MB990938: Installation Adapter
MB991172: Inner Shaft Installer Base
MB991248: Inner Shaft Remover
MB991561: Boot Band Crimping Tool
