<< A >> Inner Shaft Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Use special tool MB991248 to remove the inner shaft assembly and the seal plate from the TJ case.
NOTE: Press the seal plate to deform it, and then press out the inner shaft.

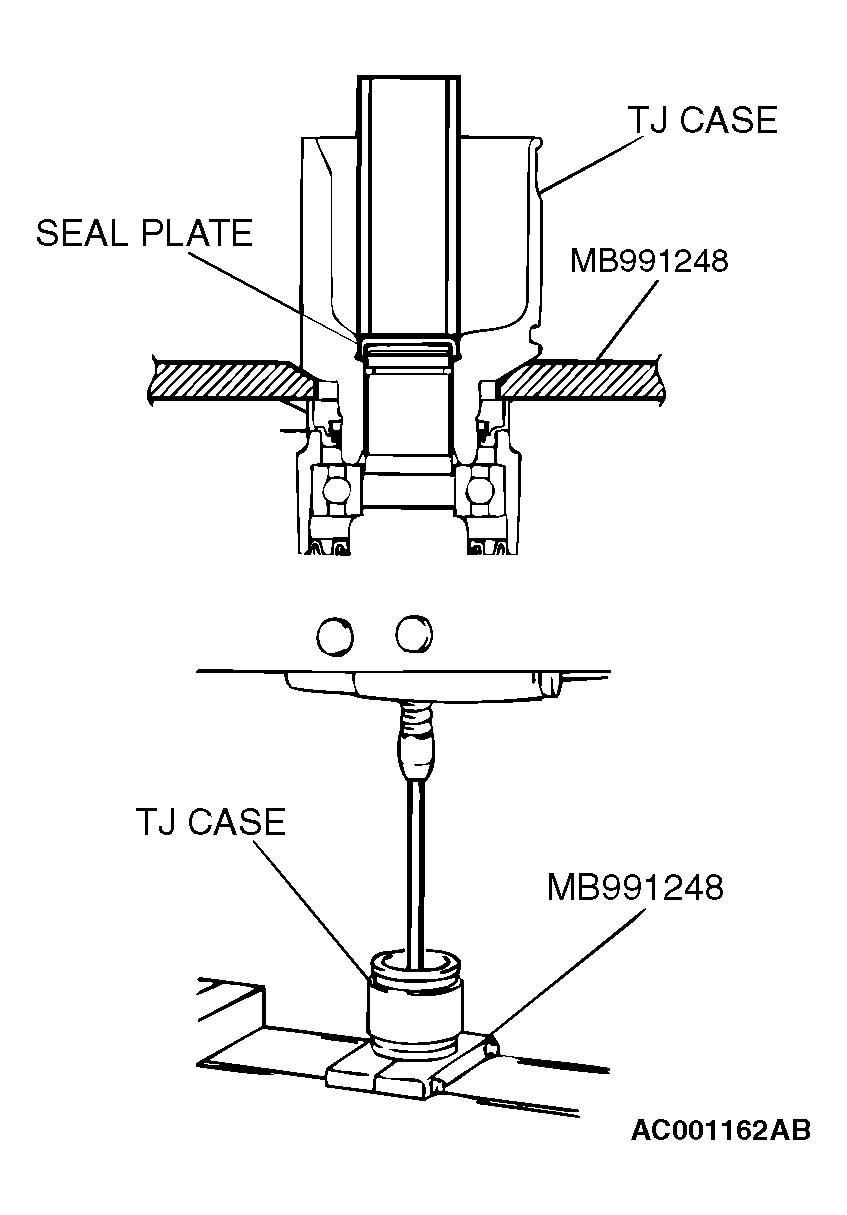

Fig 1: Pressing Out Inner Shaft
Courtesy of DAIMLERCHRYSLER CORPORATION
Use special tool MB991248 to remove the inner shaft from the center bearing bracket.

Fig 2: Removing Inner Shaft From Center Bearing Bracket
Courtesy of DAIMLERCHRYSLER CORPORATION
