>> F << TJ Case Inner Shaft Assembly Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the specified grease to the inner shaft serration, and then press the inner shaft assembly into the TJ case.

    Specified grease: MOPAR(R) Multi-mileage Lubricant Part No. 2525035 or equivalent

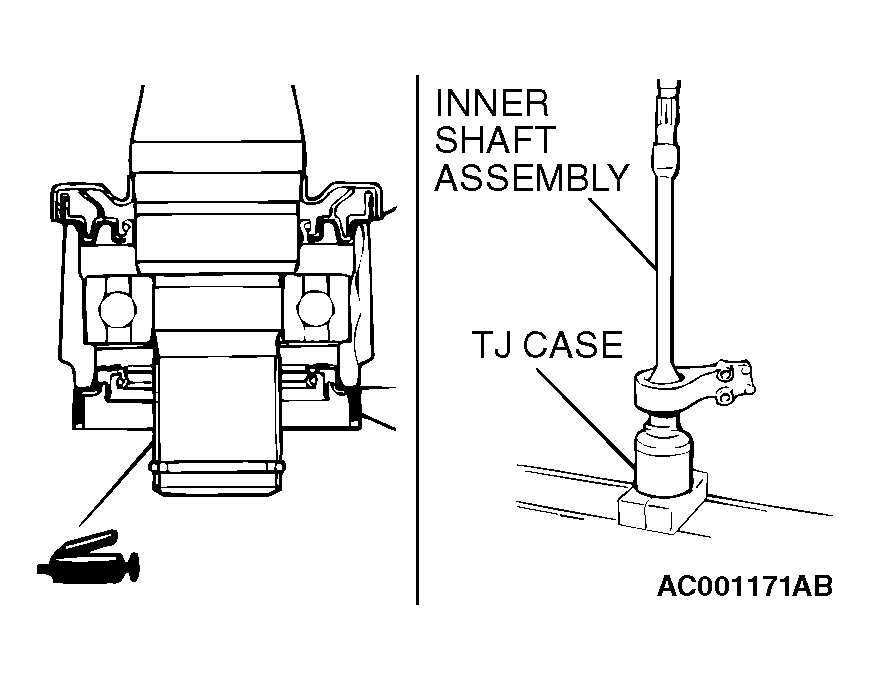

    Fig 1: Pressing Inner Shaft Assembly Into TJ Case
    G04537024Courtesy of DAIMLERCHRYSLER CORPORATION
    CAUTION: The driveshaft joint uses special grease. Do not mix old, new or different types of grease.
  2. Fill the TJ case with repair kit grease and insert the driveshaft, and then refill the TJ case with repair kit grease.

    Grease quantity:

    < 2.4L ENGINE > 100 +/- 10 g (3.5 +/- 0.4 oz)

    < 3.0L ENGINE > 105 +/- 10 g (3.7 +/- 0.4 oz)

    NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.
    Fig 2: Filling TJ Case With Repair Kit Grease
    G04537025Courtesy of DAIMLERCHRYSLER CORPORATION
