>> D << Dust Seal Inner/Dust Seal Outer Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Pack the specified grease in the places shown in the figure.
Specified grease: MOPAR(R) Multi-mileage Lubricant Part No. 2525035 or equivalent

Quantity:

14 - 20 g (0.5 - 0.7 oz) < Dust seal inner >

8 - 12 g (0.3 - 0.4 oz) < Dust seal outer >

CAUTION: Do not damage the rubber portion of the dust seal outer surface when packing the specified grease, otherwise grease will leak.

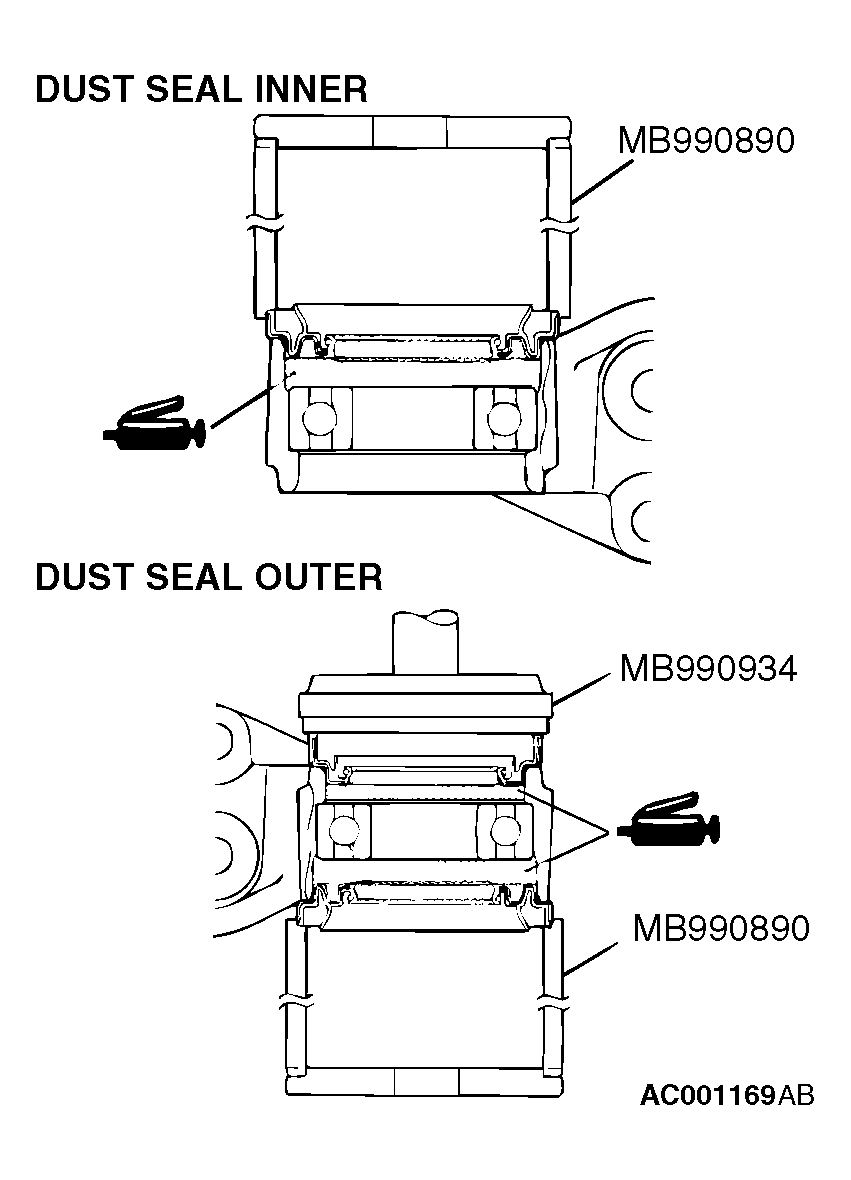

Fig 1: Applying Grease To Lip Of Dust Seal
Courtesy of DAIMLERCHRYSLER CORPORATION
Use special tools MB990890 and MB990934 to press the oil seal into the center bearing bracket.
Apply the specified grease to the lip of the dust seal.
NOTE: Do not apply the specified grease to the outside of the lip.

Specified grease: MOPAR(R) Multi-mileage Lubricant Part No. 2525035 or equivalent
